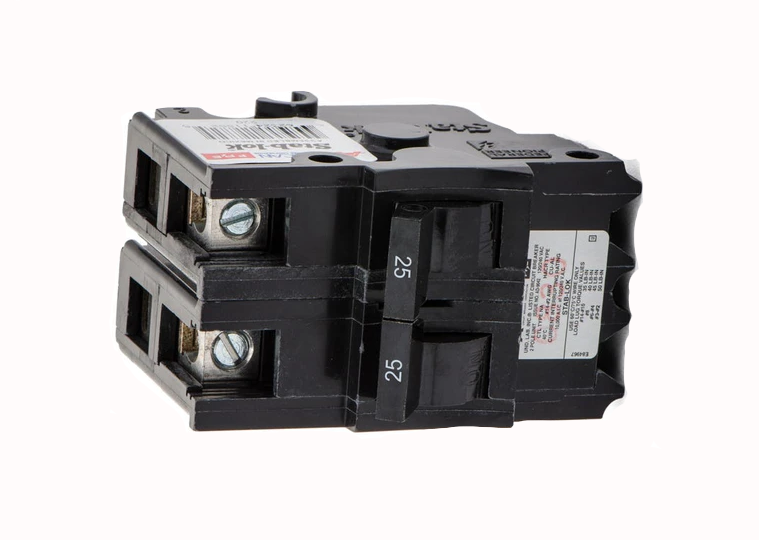

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- American/Federal Pacific
- Sub-Category
- Molded Case
- Series
- Stab-Lok
- Frame
- NA
- Rated current
- 25
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 3 lb
Show all specifications (2 more)
- Certification
- CSA
- Wire Size
- AWG 14...AWG 2 copper
Product description & additional details
NA225
NA225 is a 2-pole, 25-amp molded case circuit breaker rated for 240 volts AC with thermal magnetic protection. This plug-in mounted breaker from Federal Pacific (also marketed as American/FPE) is designed for reliable overcurrent and short-circuit protection in single-phase power distribution applications. The NA type breaker features a Stab-Lok family design and delivers consistent performance in standard electrical panels and switchgear installations.
- Amperage: 25 Amps
- Poles: 2
- Voltage: 240V AC
- Type: NA
- Mounting: Plug-In
- Interrupt Rating: 10kA @ 240V
- Trip Unit: Thermal Magnetic
- Phase: Single Phase
- Molded Case Design
Specifications
- Part Number: NA225
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Stab-Lok
- Type : NA
- Voltage : 240
- Amperage : 25
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 3 lb
- Certification : CSA
- Wire Size : AWG 14...AWG 2 copper
