Eaton

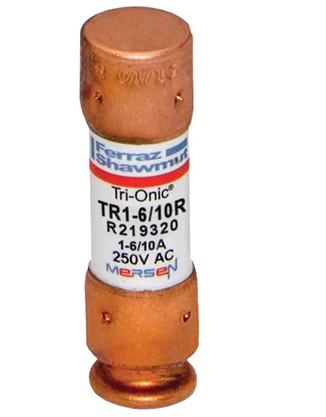

TR1-6/10R

Mersen 250V Class RK5 Time-Delay Current-Limiting Fuse 1-6/10A

Current: 1Voltage: 250V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$6.46 $443.53
Save $437.07
8 In stock, ready to be shipped
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Brand
Cutler Hammer
Sub-Category
Low Voltage Fuse
Series
Tri-Onic
Frame
TR
Rated current
1
Voltage
250V
Interrupting rating
200kA@250V
Class rating
RK5
Barrels
1
Diameter
0.56 in
UPC
782001747626
GTIN
00782001747626
Weight
0.05
Product description & additional details

TR1-6/10R


TR1-6/10R is a Mersen Class RK5 time-delay, current-limiting fuse rated for 250V AC/DC and 1-6/10A. Designed for motor circuits, transformers, and general purpose protection, this fuse features a rejection-style design to prevent replacement errors and a fiberglass body with silica filler for fast arc quenching. This fuse is suitable for use in motor circuits, mains, feeders, branch circuits, transformers, and service entrance equipment. The time-delay characteristic allows for motor start-ups and transformer inrush without nuisance opening, while the current-limiting design provides low peak let-thru current for enhanced protection.
  • Part Number: TR1-6/10R
  • Manufacturer: Mersen
  • Amperage: 1-6/10A
  • Voltage: 250V AC/DC
  • Interrupting Rating: 200kA AC, 20kA DC
  • Class: RK5
  • Fuse Type: Time-delay, Current-limiting
  • Mounting Type: Ferrule Terminal
  • Physical Size: 9/16" x 2"
  • UL Listed: UL 248-12
  • CSA Certified: C22.2 No. 248.12
  • Application: Motor circuits, transformers, general purpose protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TR1-6/10R
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Fuse
  • Item Subcategory : Low Voltage Fuse
  • Family : Tri-Onic
  • Type : TR
  • Voltage : 250
  • Amperage : 1
  • AIC rating : 200kA@250V
  • Diameter : 0.56
  • Class Rating : RK5
  • Barrels : 1

Product Data

  • UPC : 782001747626
  • GTIN : 00782001747626
  • Weight : 0.05
