Description
TRS200R

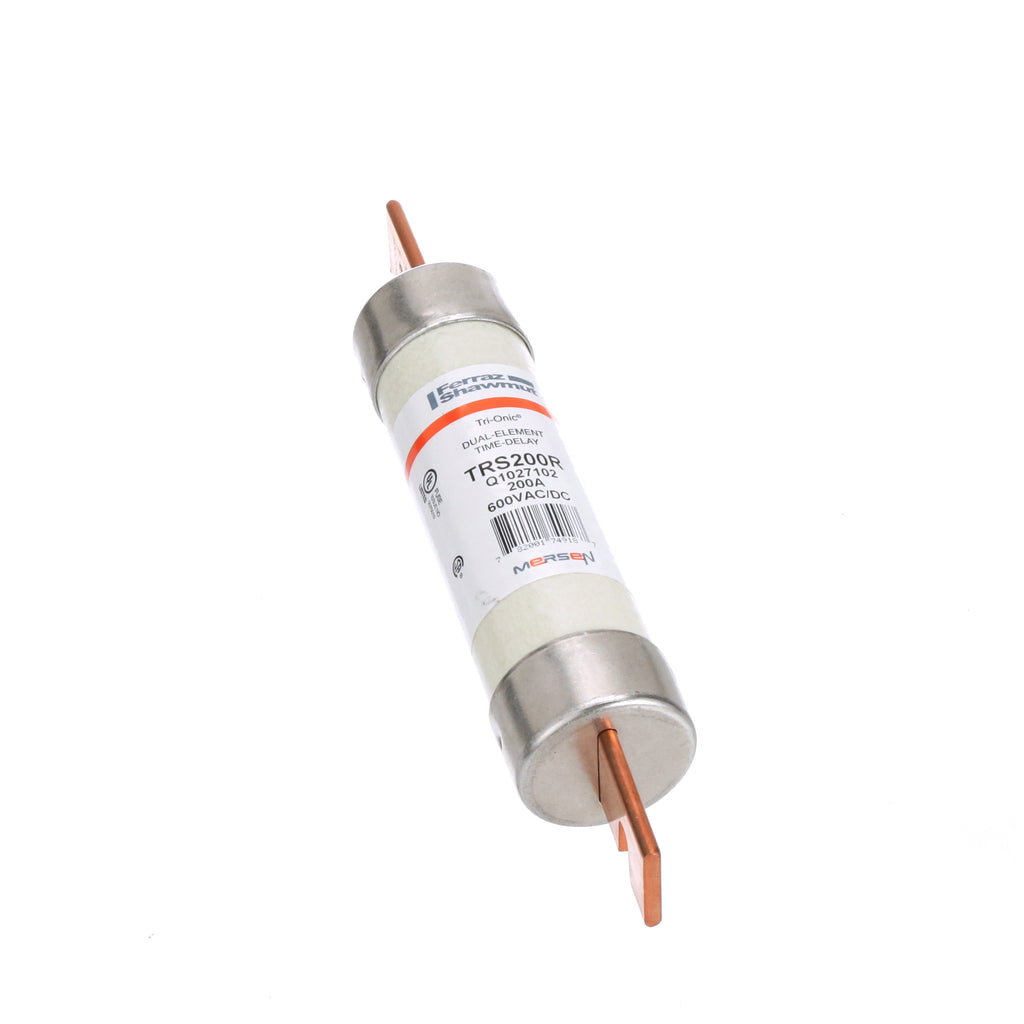

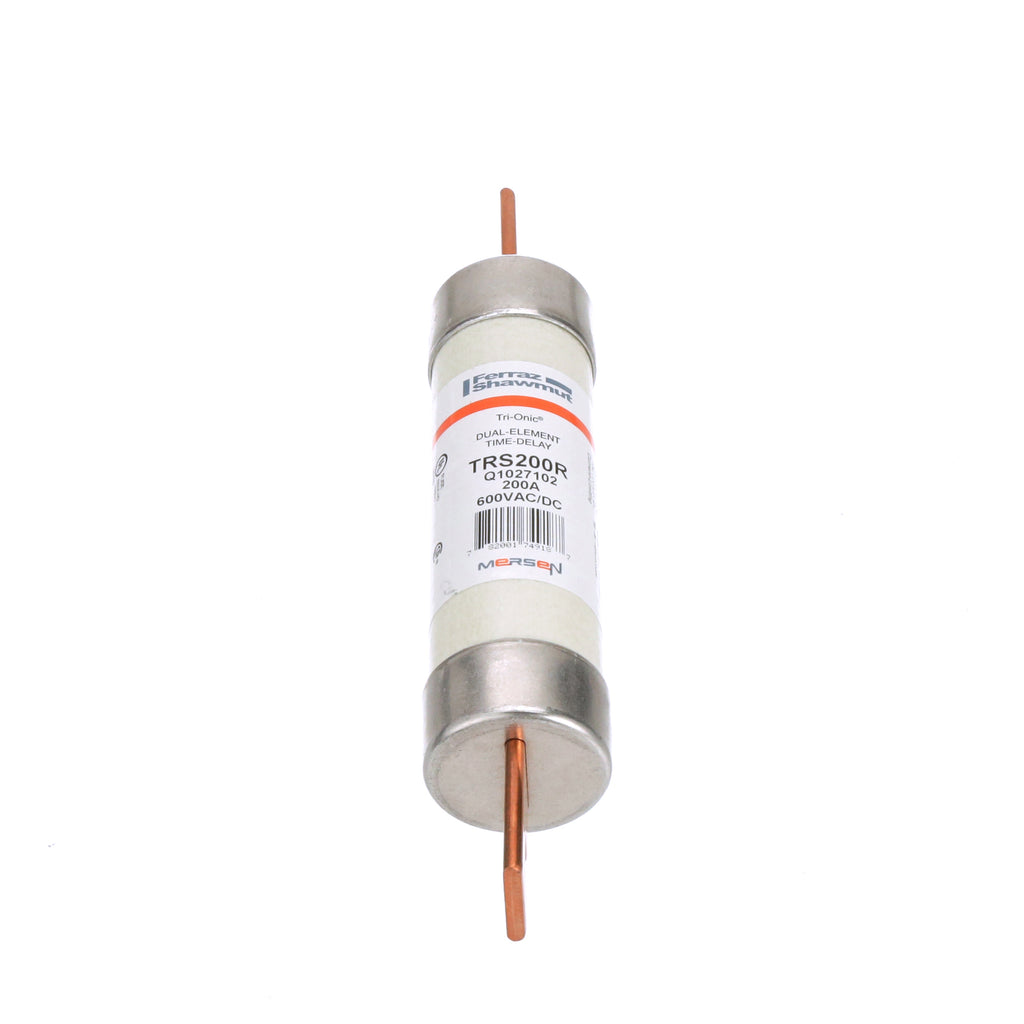

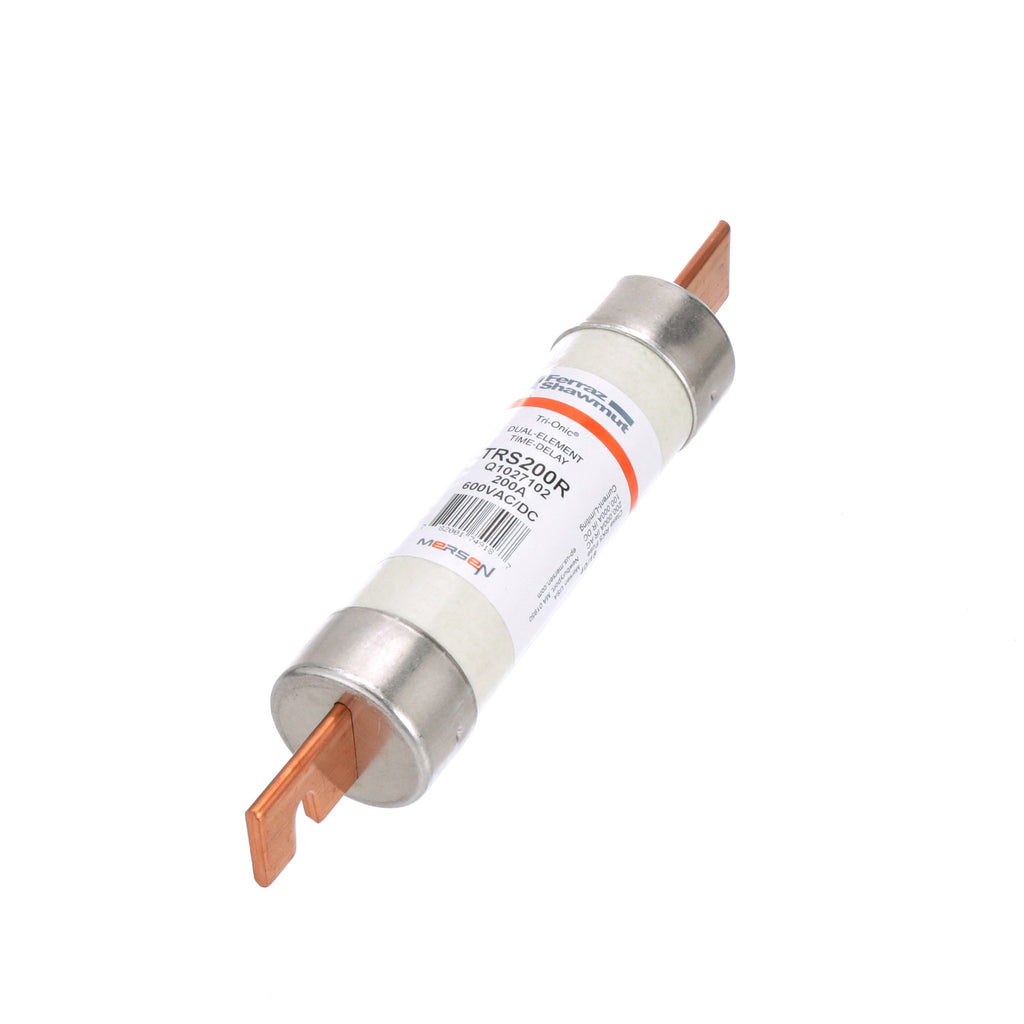

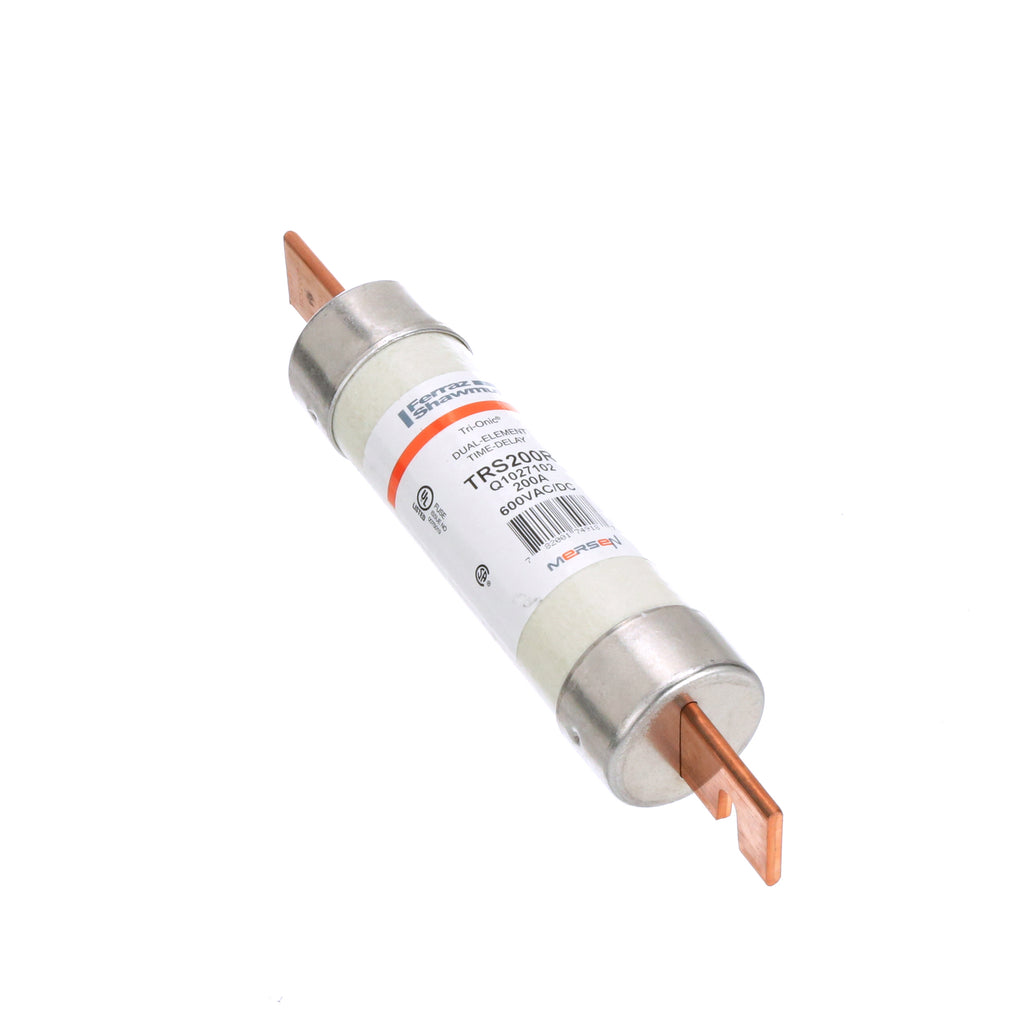

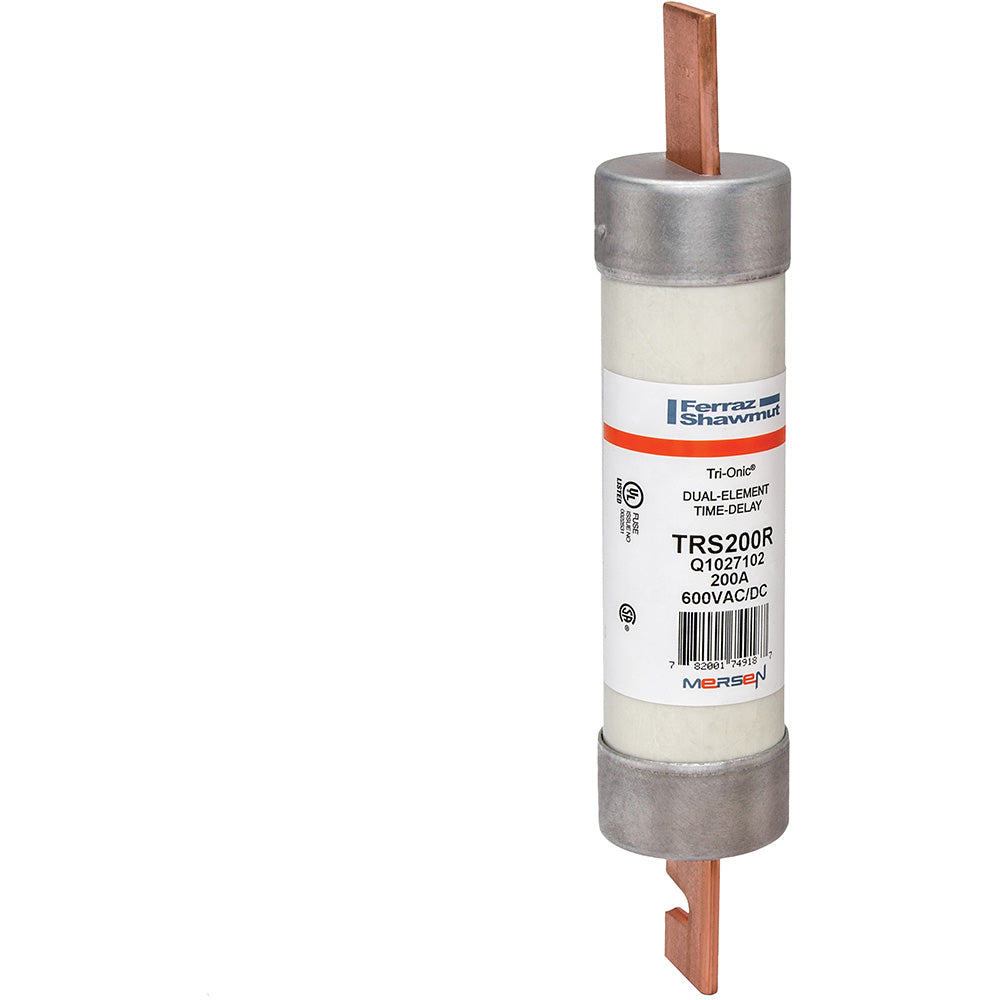

TRS200R is a Ferraz Shawmut 200 Amp, 600 Volt AC/DC Class RK5 time delay fuse designed for reliable overcurrent protection.This current limiting fuse features time delay characteristics to safely handle motor starting and transformer inrush currents without nuisance trips. It has a cylindrical fiberglass tube body with blade terminals, measures 1-13/16 inch diameter by 9-5/8 inch length, and is rated for 200,000 A interrupting capacity at 600 VAC and 100,000 A at 600 VDC. The fuse is UL 248-12 and CSA C22.2 certified and includes a rejection style design to prevent replacement errors.
- Key Specifications
- Amperage: 200 A
- Voltage Rating: 600 VAC/VDC
- Class: RK5
- Fuse Type: Time Delay, Current Limiting
- Interrupting Rating: 200 kA AC / 100 kA DC
- Body Type: Cylindrical Fiberglass Tube
- Dimensions: 1-13/16" Diameter x 9-5/8" Length
- Terminal Type: Blade
- Mounting: Rejection Style
- Certifications: UL 248-12, CSA C22.2
- Part Number: TRS200R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Diameter : 1.56
- Class Rating : RK5
- Barrels : 1
- UPC : 782001749187
- GTIN : 00782001749187
- Weight : 1
