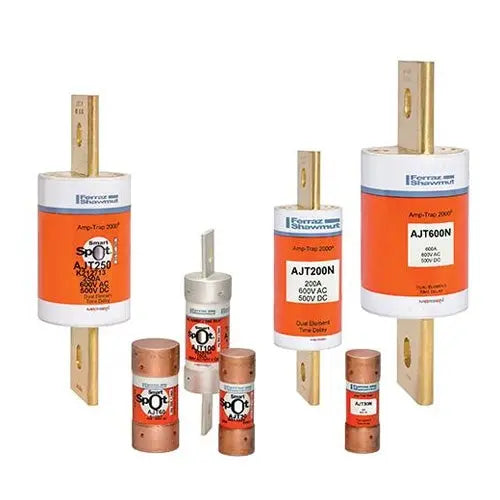

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Low Voltage Fuse
- Series
- Amp-Trap 2000
- Frame
- AJT
- Rated current
- 175
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Class rating
- J
- Barrels
- 1
- Diameter
- 1.63 in
- Country of origin
- Mexico
- UPC
- 782001962579
- GTIN
- 00782001962579
Show all specifications (3 more)
- Dimensions
- x 5-3/4 in x
- Weight
- 1
- Certification
- UL/CSA
Product description & additional details
AJT175

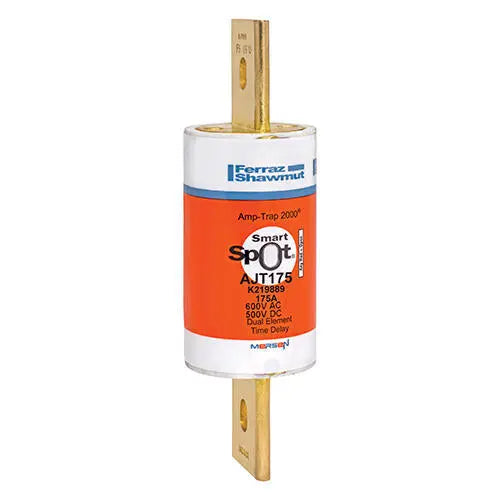

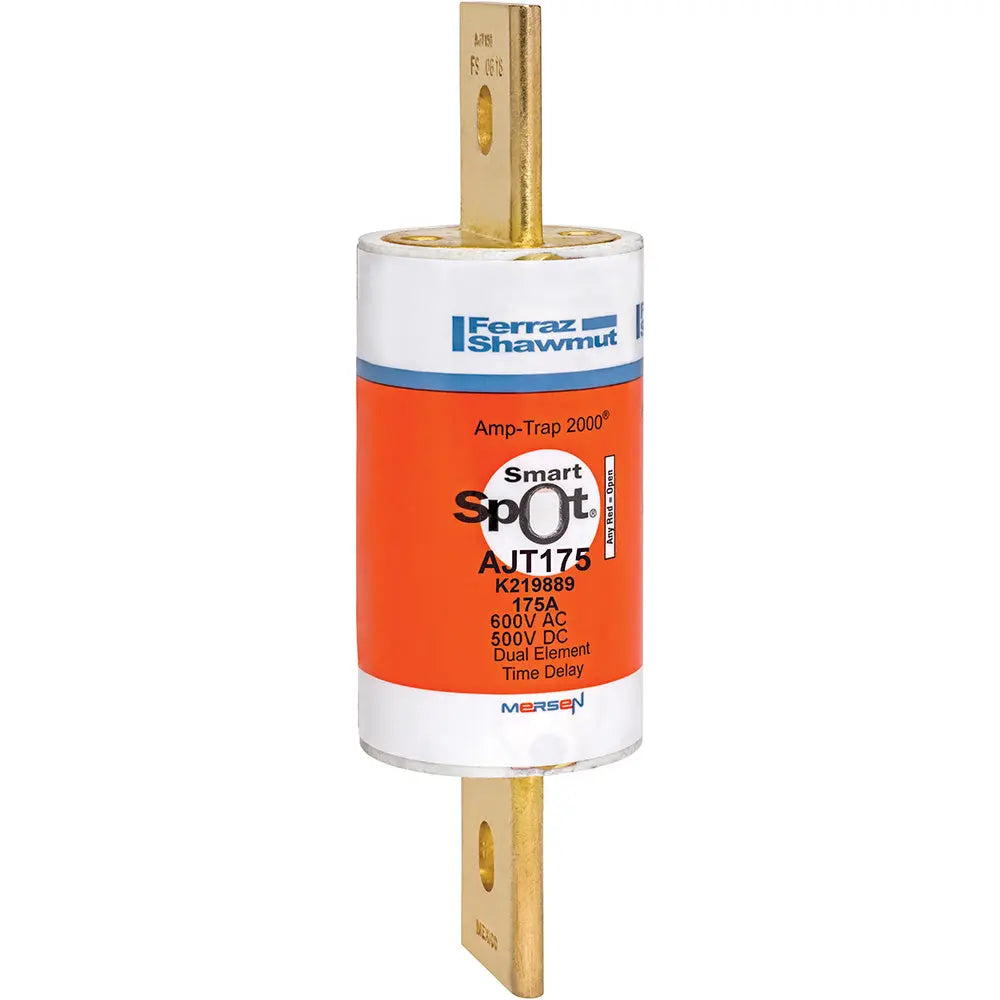

AJT175 is a 175 Amp, 600V AC/500V DC, Class J time delay fuse from Ferraz Shawmut Mersen, designed for maximum circuit protection with minimal footprint.
This fuse features a solid-state SmartSpot visual open indicator, advanced current-limiting technology, and time delay characteristics ideal for motor starting and transformer inrush. It is UL 248/248-8 and CSA C22.2 certified, with a unique Class J dimension to prevent installation errors and a high-visibility orange label for easy identification.
-
Key Specifications
- Amperage: 175A
- Voltage: 600V AC, 500V DC
- Poles: Single
- Mounting Type: Blade (Class J)
- Interrupt Rating: 200kA AC, 100kA DC
- Series/Frame: Amp-Trap 2000 (AJT)
- Trip Unit: Time Delay
- Certifications: UL 248/248-8, CSA C22.2
- Visual Indicator: SmartSpot
- Body: Fiberglass for dimensional stability
- Application: Main, feeder, and branch circuit protection
- Selectivity: Easy 2-to-1 for nuisance trip prevention
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: AJT175
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 175
- AIC rating : 200kA@600V
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962579
- GTIN : 00782001962579
- Country of Origin : Mexico
- Dimensions : x 5-3/4 in x
- Weight : 1
- Certification : UL/CSA
