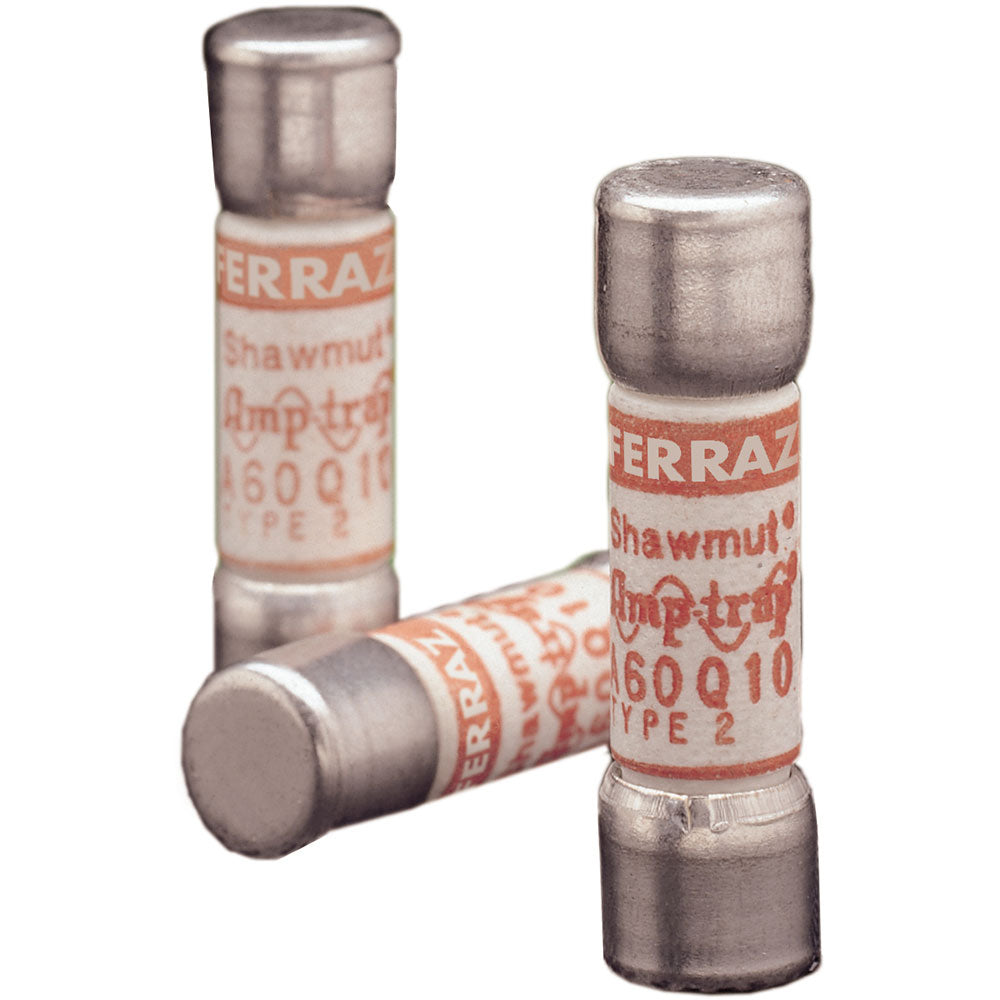

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Low Voltage Fuse
- Series
- Amp-Trap
- Frame
- A60Q
- Rated current
- 40
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Connection
- Ferrule
- Barrels
- 1
- Diameter
- 0.41 in
- Country of origin
- Mexico
- UPC
- 078200114247
- GTIN
- 00782001142476
Show all specifications (3 more)
- Dimensions
- x 1-1/2 in x
- Weight
- 0.02
- Certification
- CE, UL Recognized, Guide JFHR2, File E60314
Product description & additional details

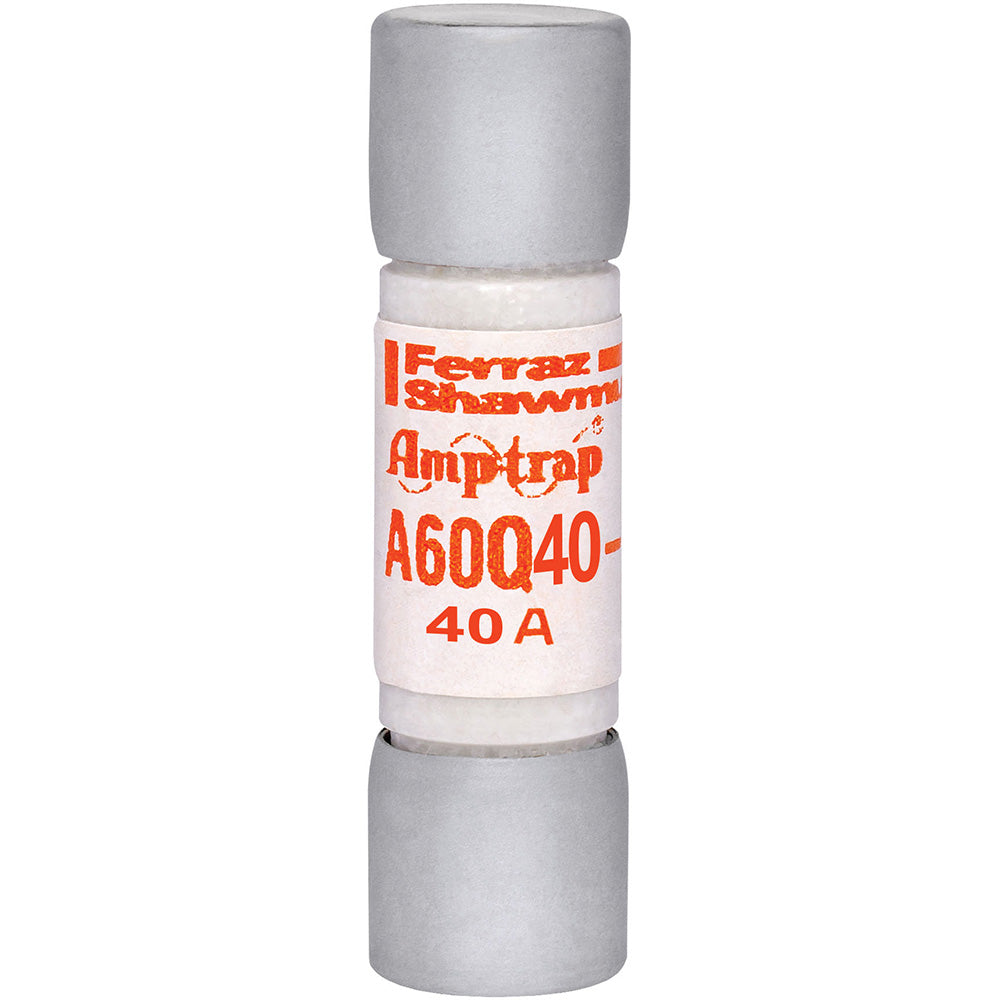

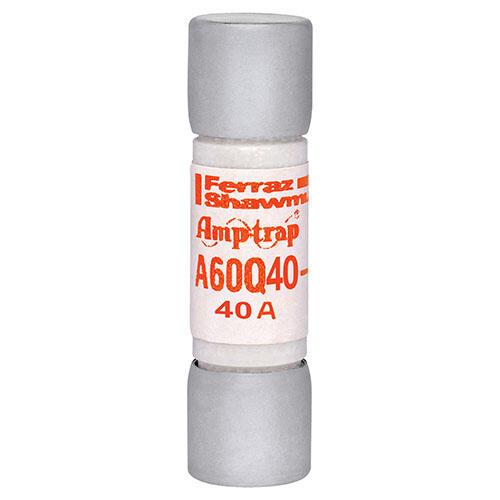

A60Q40-2
A60Q40-2 is a Ferraz Shawmut semiconductor protection fuse designed for extremely fast-acting, current-limiting circuit protection in demanding applications.
This fuse offers the industry's only 600V AC/DC rating in its compact size, providing superior protection for semiconductors, small inverters, and drives. It features the lowest I²t of any similar fuse, excellent cycling ability, and is ideal for equipment requiring the highest degree of protection against short circuits and overloads.
-
Key Specifications
- Amperage: 40A
- Voltage: 600V AC/DC
- Poles: Single
- Mounting Type: Not specified
- Interrupt Rating: 200,000A AC / 100,000A DC
- Series/Frame: A60Q, Amp-Trap Form 101
- Trip Unit: Extremely fast acting, current limiting
- Certifications: UL Recognized Component (AC: UL Guide JFHR2 File E60314, DC: UL File E60314)
- Physical Size: 13/32" x 1-1/2"
- Application: Protection of semiconductors, small inverters, drives
- Cycling Ability: Excellent
- Equivalent to Bussmann FWC style
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A60Q40-2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A60Q
- Voltage : 600
- Amperage : 40
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 078200114247
- GTIN : 00782001142476
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
