Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TRS150R

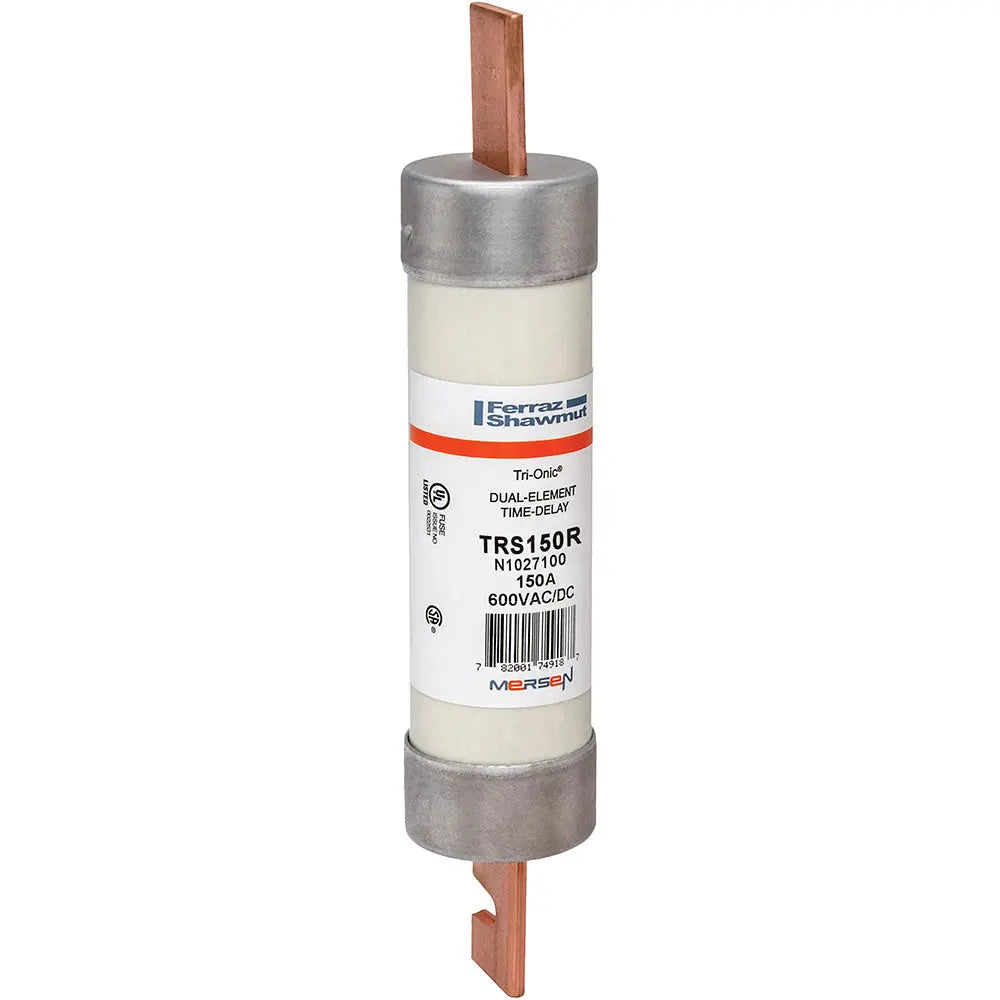

TRS150R is a 150 Amp, 600 Volt Class RK5 time delay fuse from Ferraz Shawmut designed for current limiting protection.This fuse features a dual element time delay design with current limiting capability, suitable for both AC and DC applications up to 600 volts. It has a high interrupting rating of 200,000 AIC at 600 VAC and 100,000 AIC at 600 VDC. The fuse is constructed with a fiberglass tube and blade terminals, measuring 9-5/8 inches in length and 1-13/16 inches in diameter. It carries UL 248-12 and CSA C22.2 certifications and includes a rejection style to prevent replacement errors.
- Key Specifications
- Amperage: 150 A
- Voltage Rating: 600 VAC/VDC
- Fuse Class: RK5
- Time Delay, Dual Element
- Interrupting Rating: 200 kA AC, 100 kA DC
- Mounting Type: Blade Terminal
- Dimensions: 9-5/8" length, 1-13/16" diameter
- Construction: Fiberglass Tube
- Certifications: UL 248-12, CSA C22.2
- Rejection Style Design
Specifications
- Part Number: TRS150R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 150
- AIC rating : 200kA@600V
- Diameter : 1.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001749163
- GTIN : 00782001749163
- Weight : 1
