Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQC21100

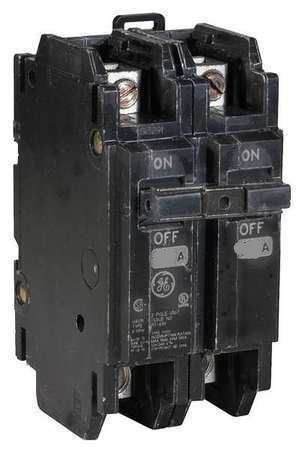

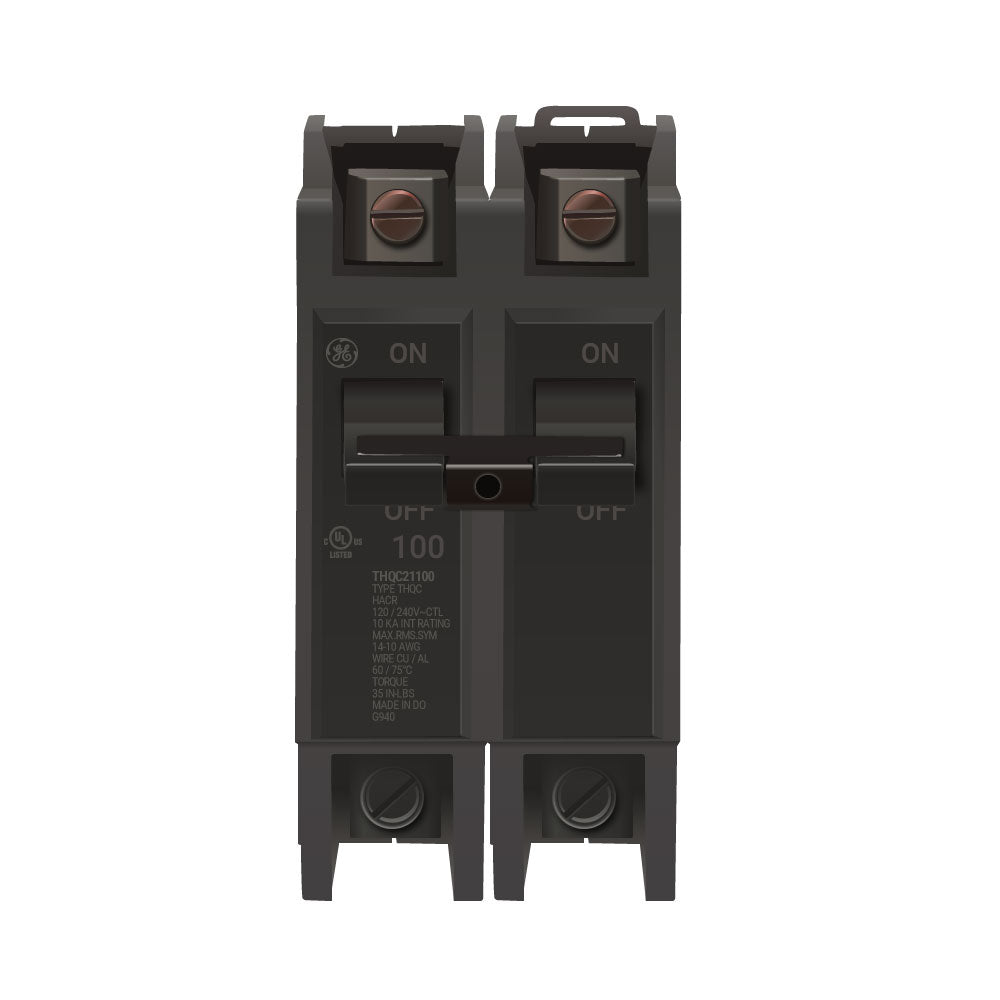

THQC21100 is a General Electric 2 pole thermal magnetic circuit breaker rated for 100 amps and 240 volts AC, designed for residential and commercial applications.THQC21100 features a plug-in mounting type with a Q-Line frame, providing reliable protection with a 10,000 AIC interrupt rating at 120/240 VAC. It includes long-time and instantaneous trip functions (LI) and is UL listed and HACR rated for safety and performance.
- Manufacturer: General Electric
- Series: THQL (Q-Line)
- Amperage: 100 A
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10,000 AIC at 120/240 V
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous Trip)
- Terminal Connection: Load Side Lug
- UL Listed and HACR Rated
- Phase: Single
- Frame Type: THQL
Specifications
- Part Number: THQC21100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQC
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120/240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164125894
- GTIN : 40783164125892
- Weight : 1.5
