TEY320

TEY320

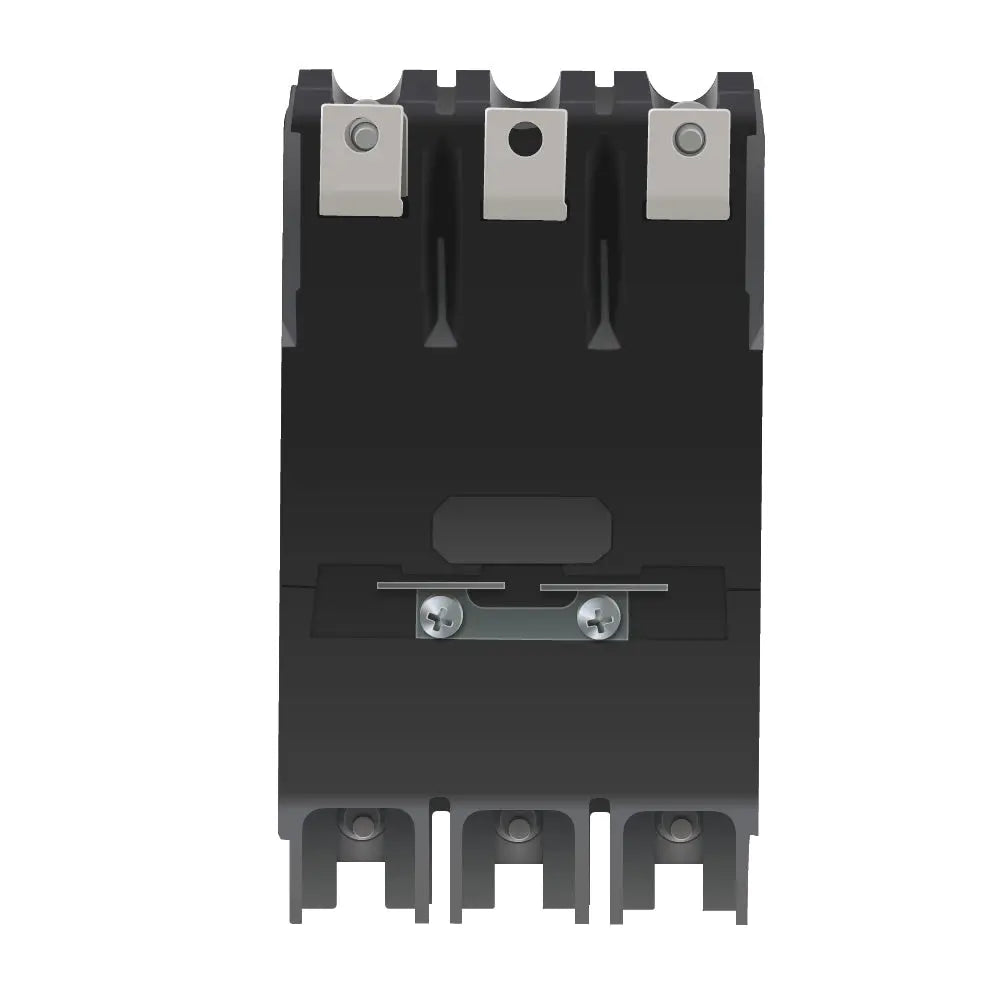

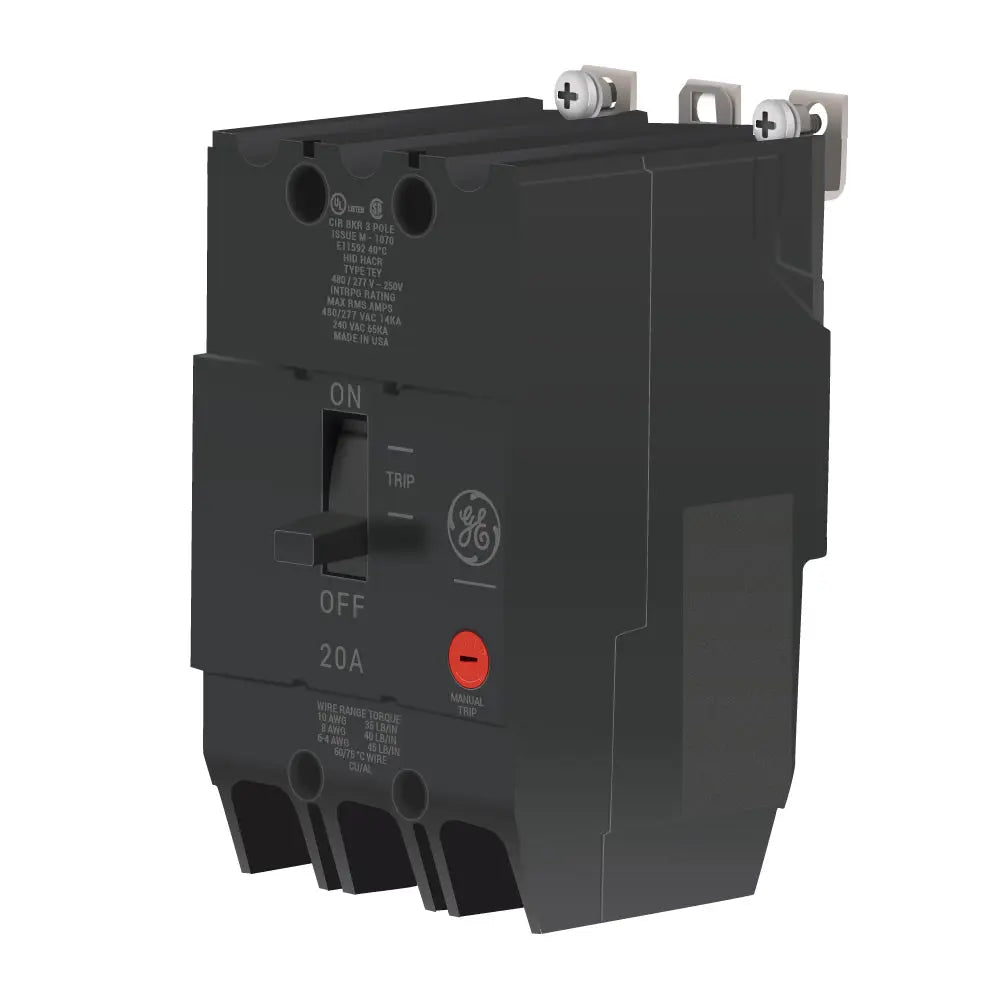

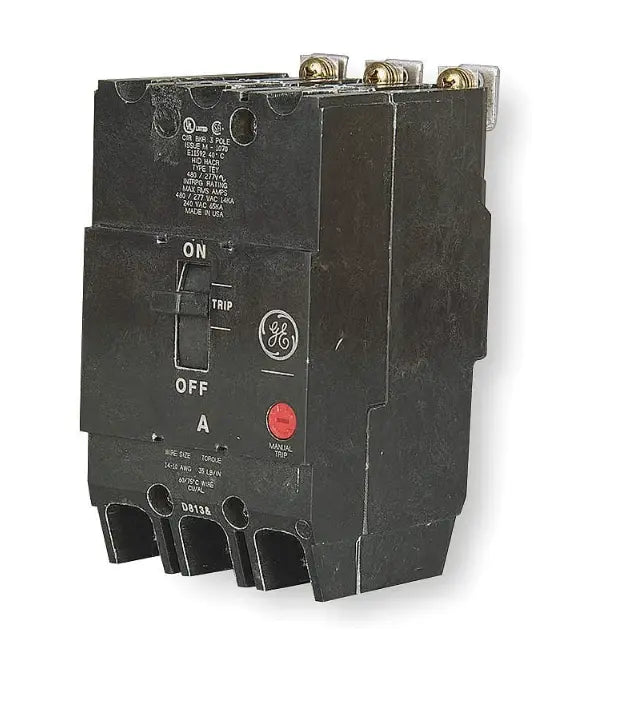

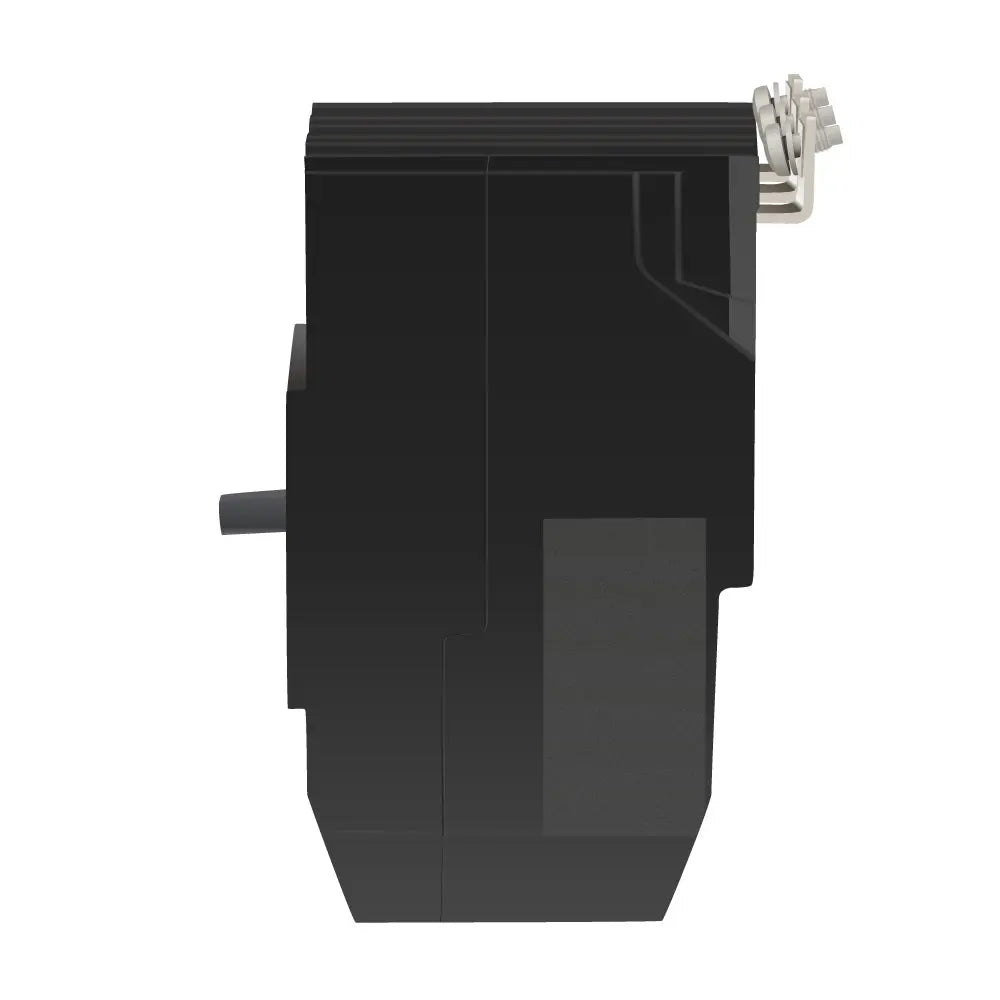

TEY320 is a General Electric 3-pole, 20 amp molded case circuit breaker designed for 480VAC applications with a bolt-on mounting type.This compact TEY series breaker features a thermal magnetic trip unit with a 14kA interrupt rating at 480VAC and 65kA at 240VAC. It is engineered for industrial use with load-side lugs and a non-interchangeable trip unit, suitable for grounded 480Y/277VAC systems. The breaker measures approximately 3.00"W x 5.25"L x 3.06"D and provides reliable protection in lighting panel and other electrical distribution applications.

Key Specifications
• Amperage: 20A
• Voltage Rating: 480VAC (277/480VAC system)
• Poles: 3
• Interrupt Rating: 14kA @ 480VAC, 65kA @ 240VAC
• Mounting Type: Bolt-On
• Series/Frame: TEY
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Dimensions: 3.00"W x 5.25"L x 3.06"D
• Load-Side Lugs Included
• Certifications: Industrial Grade, OEM General Electric
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: TEY320
• Manufacturer : General Electric
• Brand : General Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q-Line
• Type : TEY
• Voltage : 480
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/TEY
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 783164181029
• GTIN : 40783164181027
• Country of Origin : United States
• Dimensions : 3 in x 5.25" x 5-1/4 in
• Weight : 2
• Panel Type : GE AE Lighting Panels
• Standards : CSA, UL
• Certification : CSA, UL
