Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Molded Case
- Series
- Q-Line
- Frame
- TQD
- Rated current
- 200
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Shipping Dimensions
- 4x4x9
Show all specifications (5 more)
- UPC
- 783164021219
- GTIN
- 00783164021219
- Dimensions
- 2-3/4 Inch Width x 2-5/8 Inch Depth x 6-9/16 Inch Height
- Weight
- 2
- Certification
- UL Listed
Product description & additional details

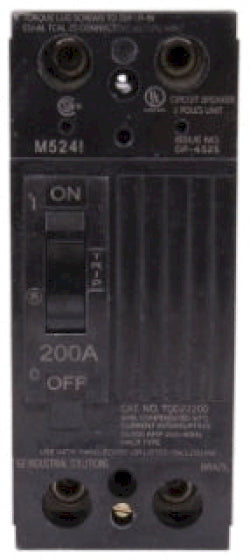

TQD22200WL

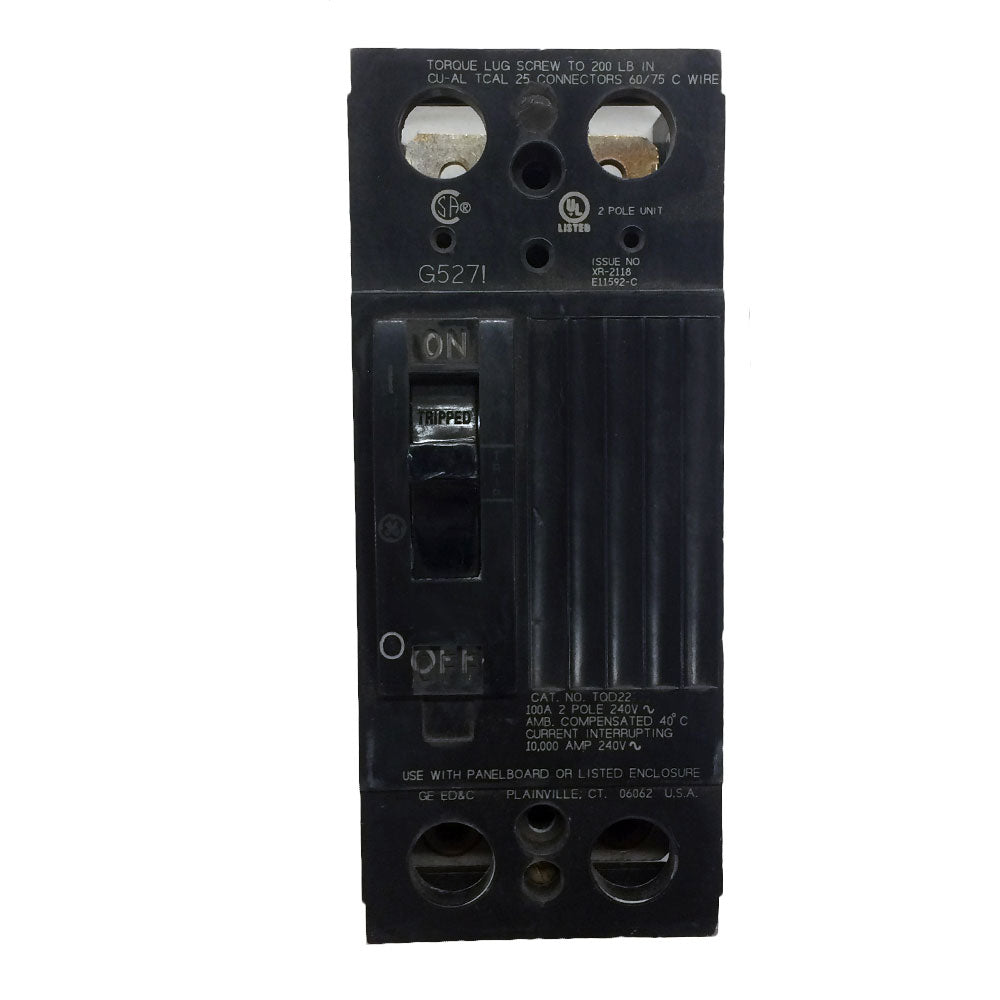

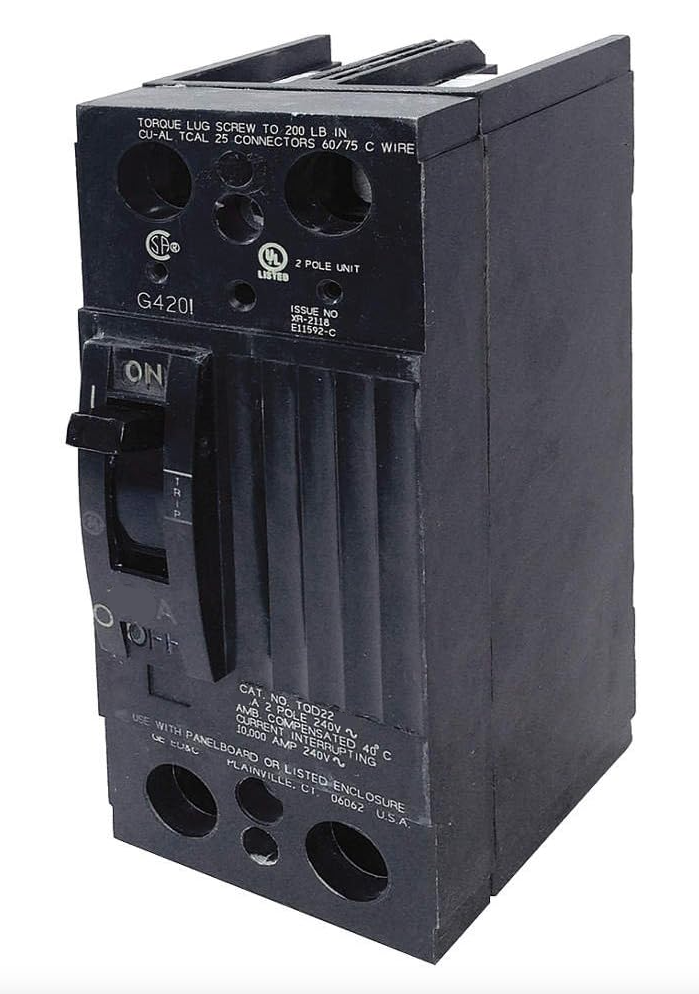

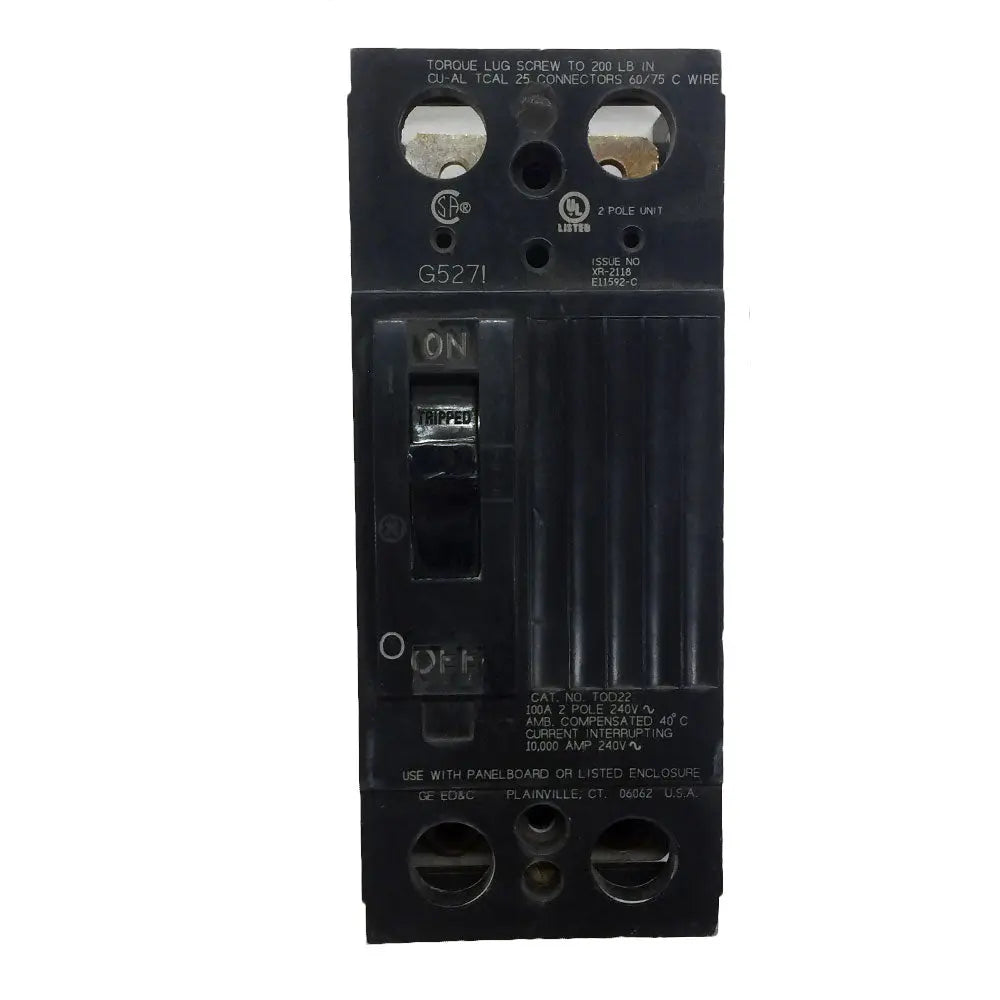

TQD22200WL is a General Electric 2 pole, 200 amp, 240 volt thermal magnetic molded case circuit breaker designed for reliable circuit protection.This TQD series breaker features a 10kA interrupting rating at 120/240VAC, feed-thru connection type, and includes long-time and instantaneous trip functions. It is UL approved and suitable for lighting panels and modular metering applications. The breaker supports copper/aluminum line and load lug terminals and operates at a temperature rating of 40 °C.
- Key Specifications
- Manufacturer: General Electric
- Series: TQD
- Amperage: 200A
- Voltage: 120/240VAC
- Poles: 2
- Interrupting Rating: 10kAIC at 120/240VAC
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Connection Type: Feed-Thru with Load Side Lug
- Mounting Type: Molded Case
- Approvals: UL Listed
- Max Wire Size: 300 MCM
- Min Wire Size: 4 AWG
Specifications
- Part Number: TQD22200WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TQD
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
- Shipping Dimensions : 4x4x9
Product Data
- UPC : 783164021219
- GTIN : 00783164021219
- Dimensions : 2-3/4 Inch Width x 2-5/8 Inch Depth x 6-9/16 Inch Height
- Weight : 2
- Certification : UL Listed
