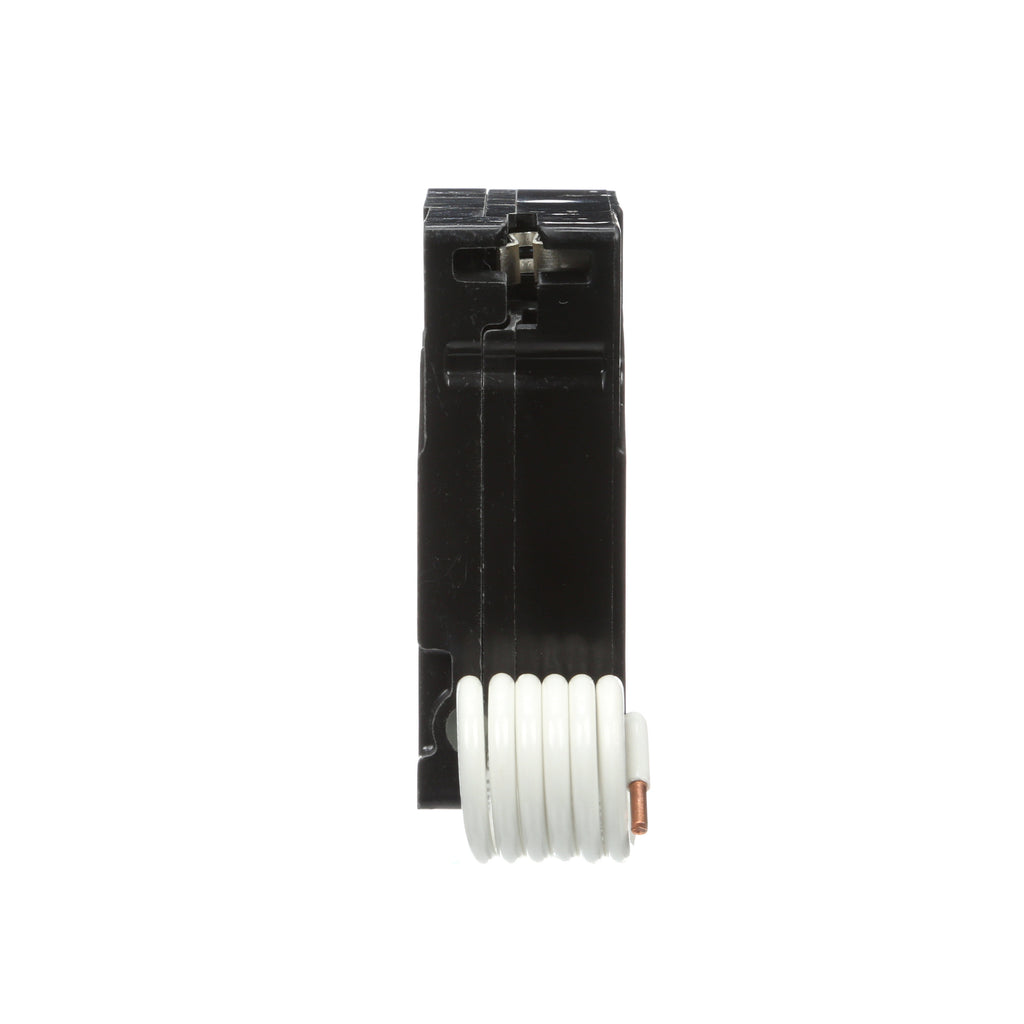

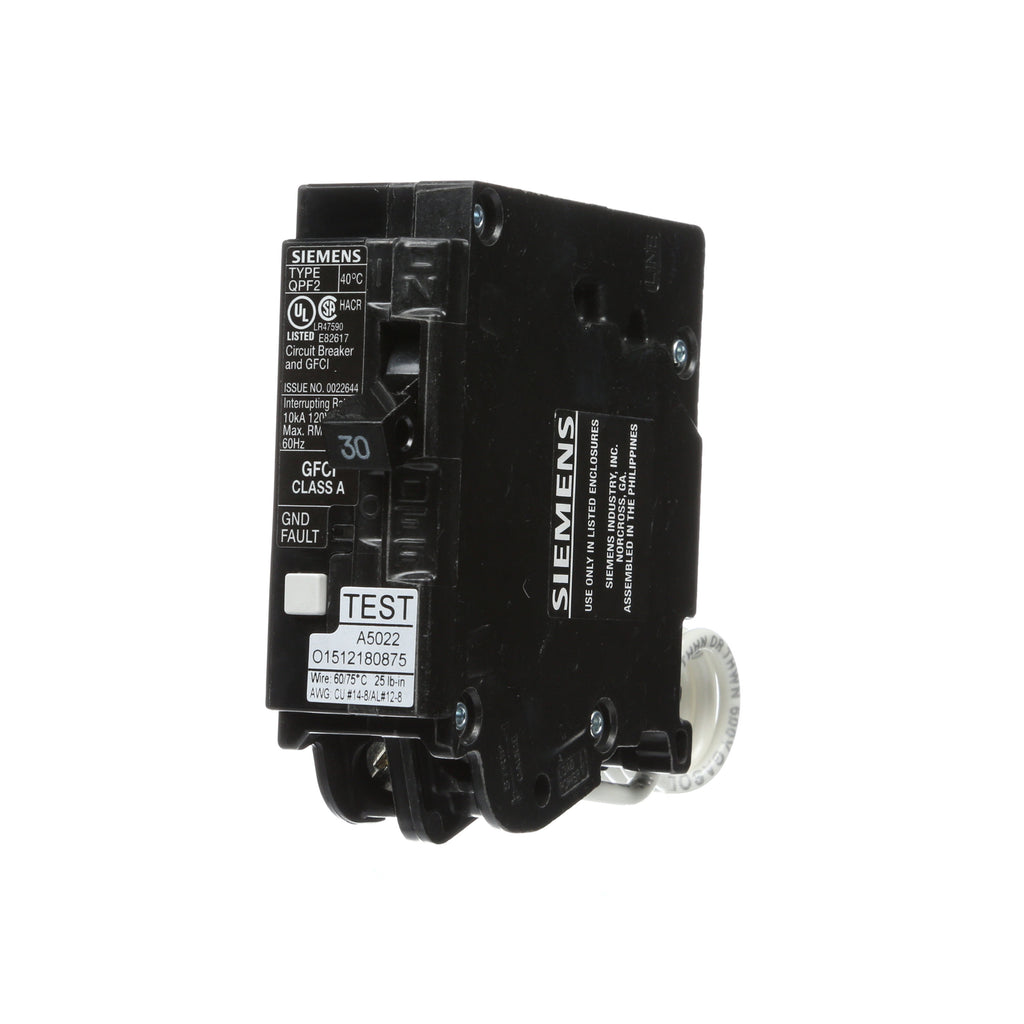

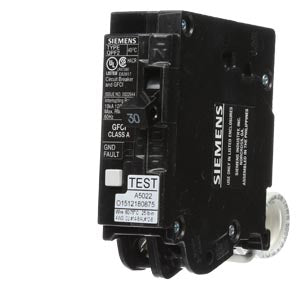

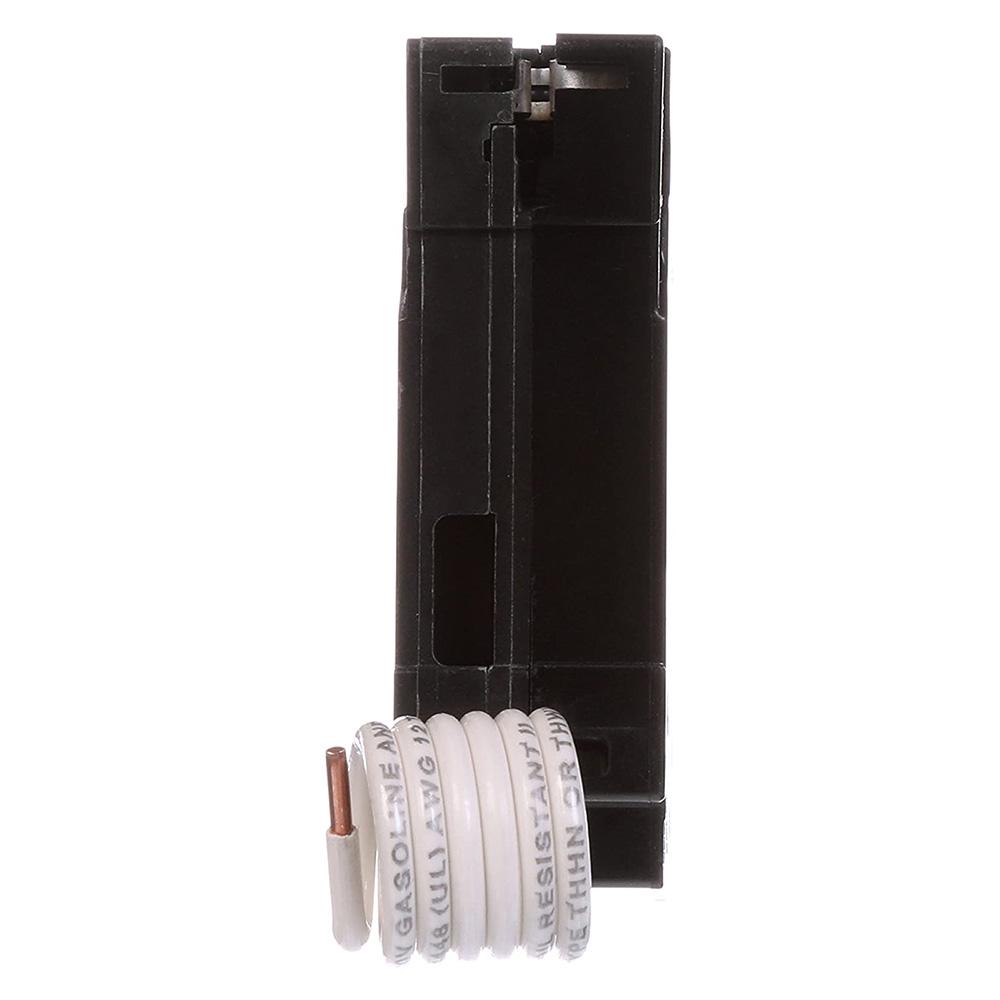

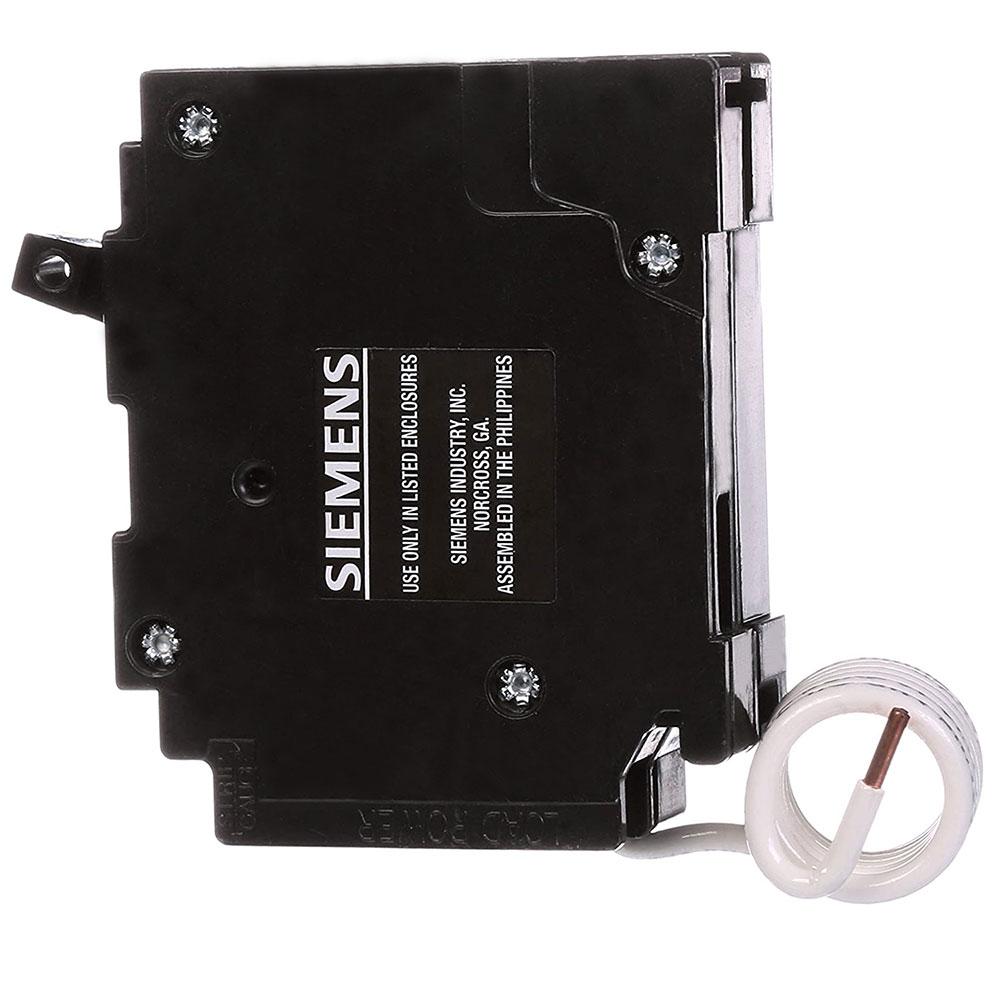

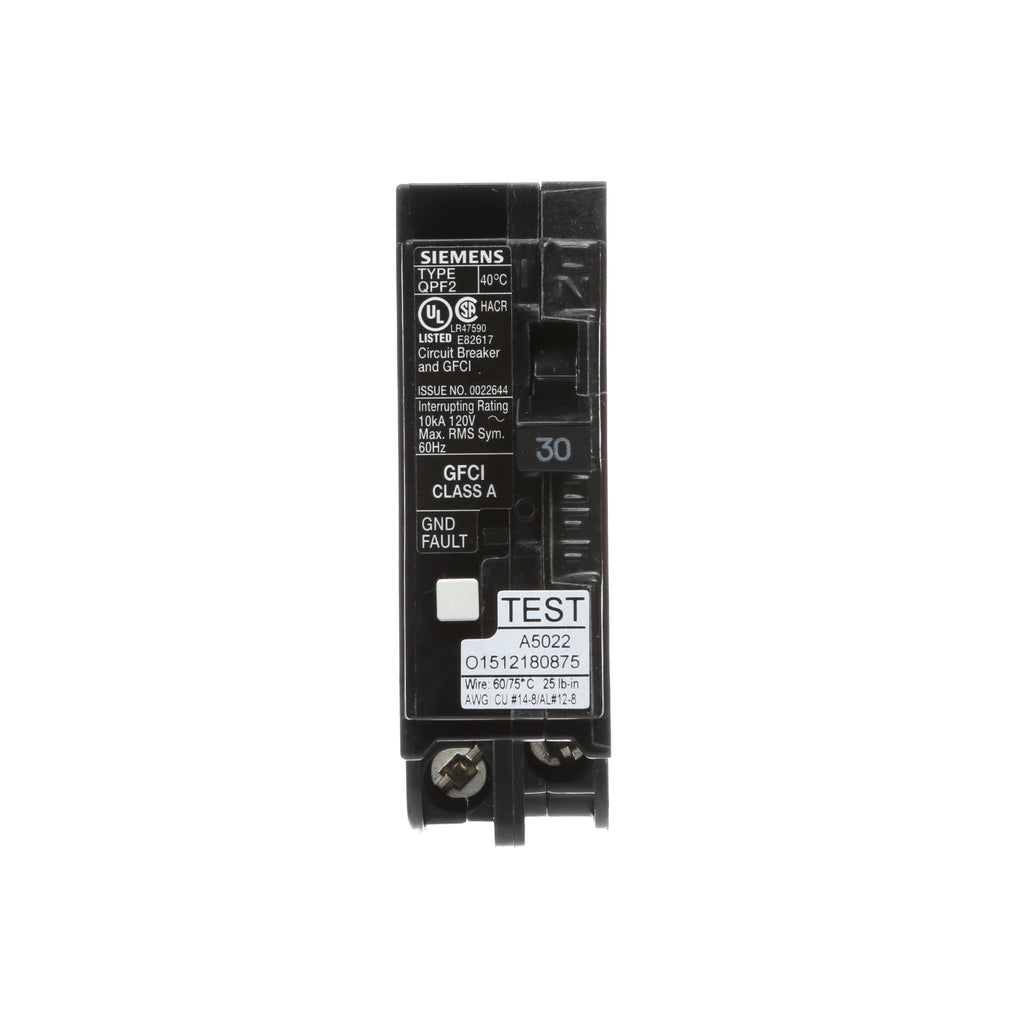

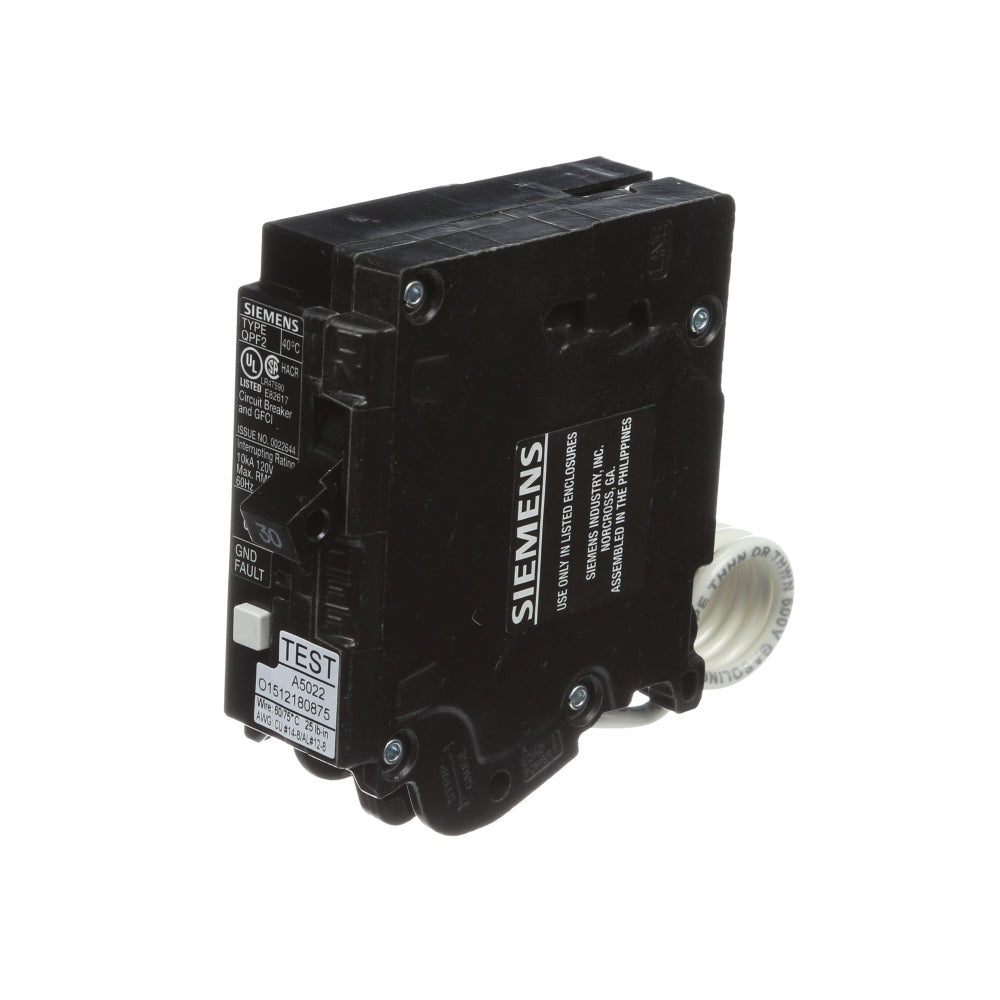

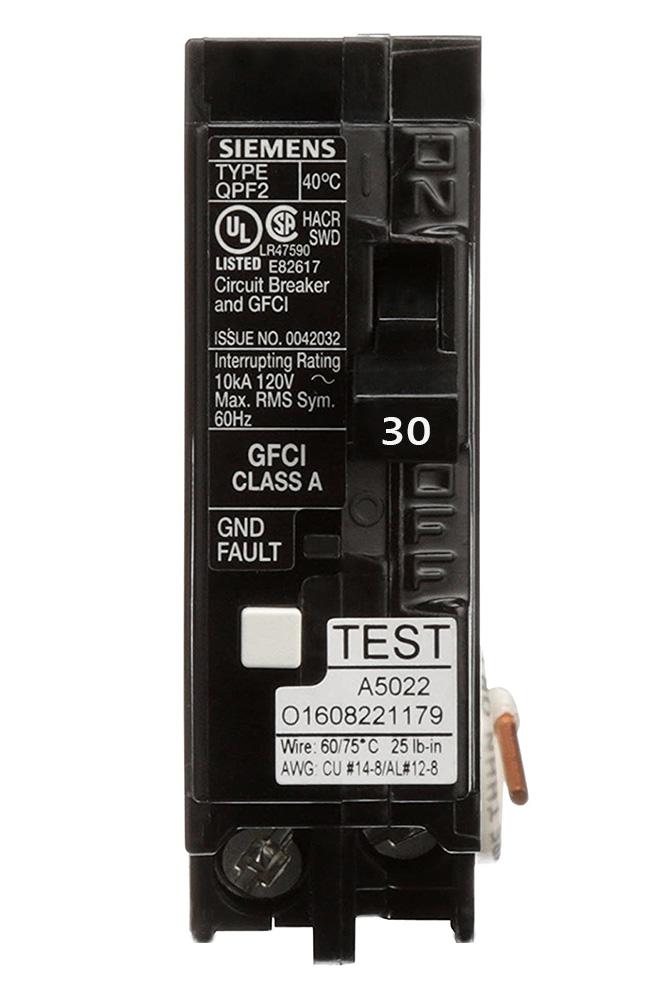

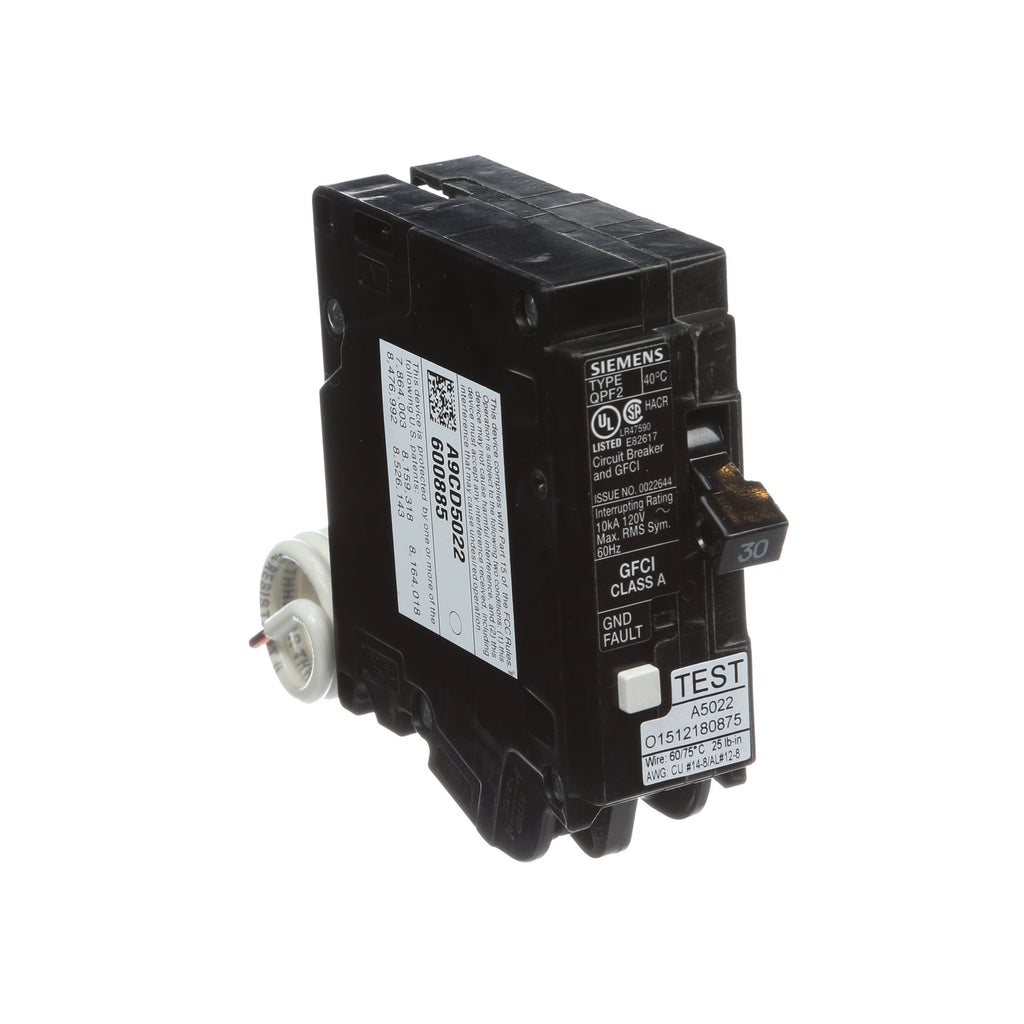

QF130A - Siemens 30 Amp 1-Pole 120V GFCI Circuit Breaker QPF2 Frame 10kA Interrupt Rating

QF130A

QF130A is a Siemens 30 Amp 1-pole Ground Fault Circuit Interrupter (GFCI) breaker designed for residential and light commercial use.This circuit breaker features a QPF2 frame, 120VAC voltage rating, and a 10kA interrupt rating. It provides Class A GFCI protection with a 5mA trip sensitivity, suitable for applications requiring personnel protection such as kitchens, bathrooms, spas, and HVAC systems. The breaker is plug-on mounted and UL/cUL listed, incorporating a self-test function to enhance safety and reduce false tripping caused by RF interference.

Key Specifications
• Amperage: 30 Amps
• Voltage: 120 VAC
• Poles: 1
• Frame Type: QPF2
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-On
• Trip Unit: Ground Fault Circuit Interrupter (GFCI), 5mA Class A
• Certifications: UL and cUL Listed
• Self-Test Feature Included
• Application: Residential and light commercial personnel protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QF130A
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QPF2
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 225A/QF
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621216603
• GTIN : 00887621216603
• Country of Origin : Philippines
• Dimensions : 0.787 x 2.756 x 2.756 inch
• Weight : 0.243 lb
• Panel Type : Siemens Load Centers
• Standards : CSA-C22.2 IEC 60947-2, UL 489
• Certification : CSA-C22.2 IEC 60947-2, UL 489
