Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEY315ST12

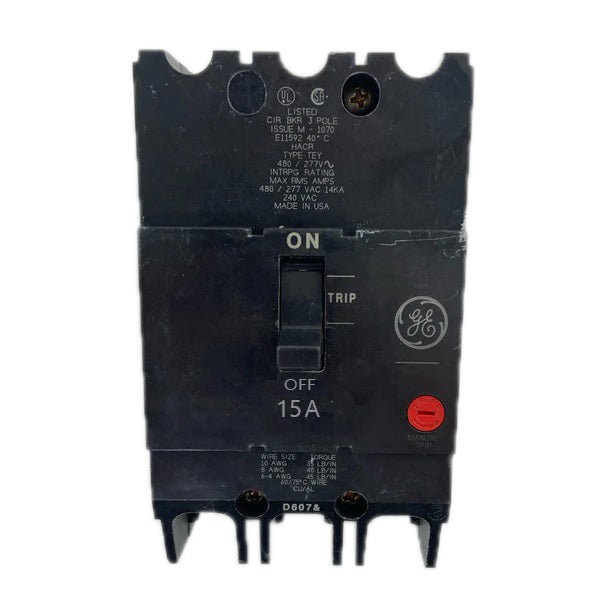

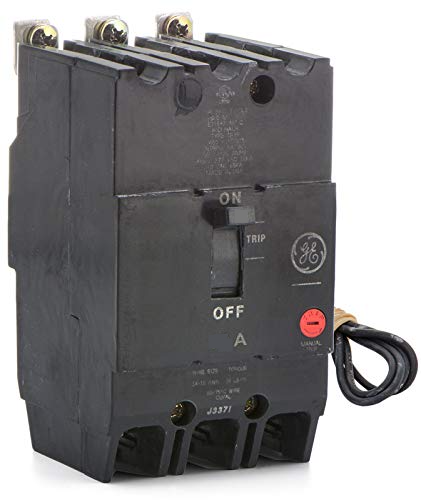

TEY315ST12 is a General Electric 15 Amp, 480 Volt, 3 Pole thermal magnetic molded case circuit breaker with a bolt-on mounting frame.TEY315ST12 features a 14kA interrupt rating at 480V, long time and instantaneous trip functions, and factory-installed 120-277VAC shunt trip. It is designed for use in commercial and industrial electrical distribution systems requiring reliable circuit protection.
- Manufacturer: General Electric
- Amperage: 15 Amp
- Voltage Rating: 277/480 VAC
- Number of Poles: 3
- Interrupt Rating: 14kA at 480V
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Frame Type: TEY
- Shunt Trip: Factory Installed 120-277VAC
- Load Side Lug Terminals
- Application: Commercial/Industrial Circuit Protection
Specifications
- Part Number: TEY315ST12
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TEY
- Voltage : 480
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164196610
- GTIN : 00783164196610
- Weight : 1
- Certification : Ul Listed
