Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED136015WL

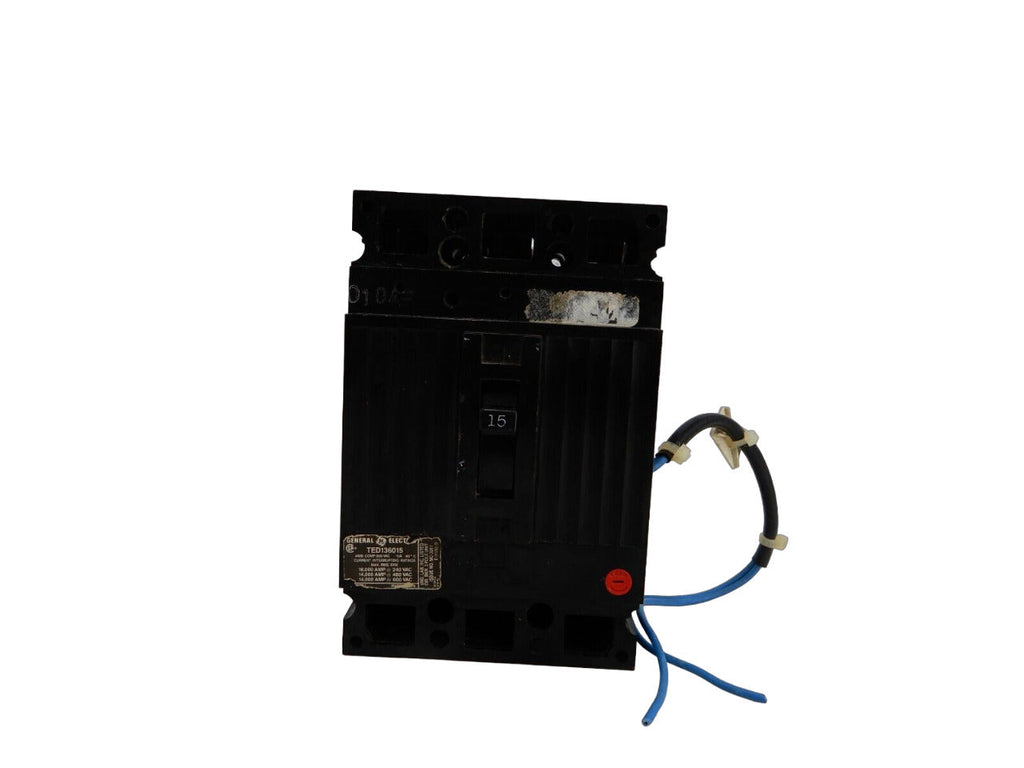

TED136015WL is a General Electric 3 pole, 600V, 15A molded case circuit breaker with thermal magnetic protection and feed-thru mounting. This TED frame breaker is designed for industrial and commercial power distribution applications requiring reliable short-circuit and overload protection. This circuit breaker features a robust molded case construction, line and load side lug terminals, and is rated for 18kA interrupting capacity at 480V. It is part of the E150 Line family and offers long time and instantaneous trip functions for enhanced circuit safety.
- Part Number: TED136015WL
- Manufacturer: General Electric
- Amperage: 15A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Feed-Thru
- Interrupt Rating: 18kA @ 480V
- Series/Frame: TED (E150 Line)
- Protection Type: Thermal Magnetic
- Trip Unit: Long Time and Instantaneous
- Terminal Type: Line & Load Side Lug
- Application: Industrial/Commercial Power Distribution
Specifications
- Part Number: TED136015WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782113471181
- GTIN : 00782113471181
- Weight : 3
