TED124015WL - General Electric 15 Amp 2 Pole 480V Molded Case Circuit Breaker TED Frame Thermal Magnetic

SKU: TED124015WL-New
Condition: New
Price:
$1,108.62
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

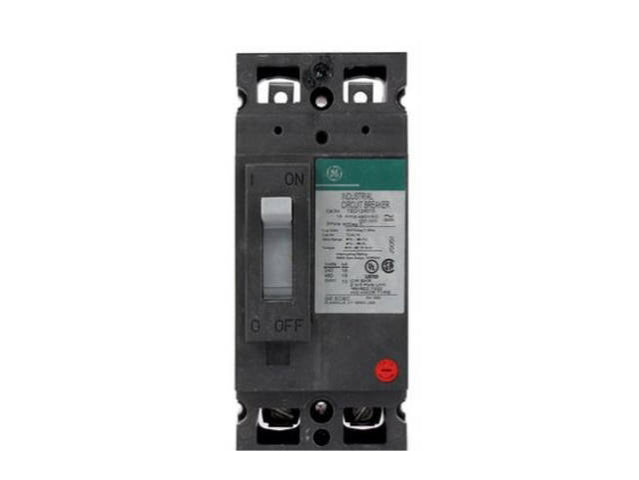

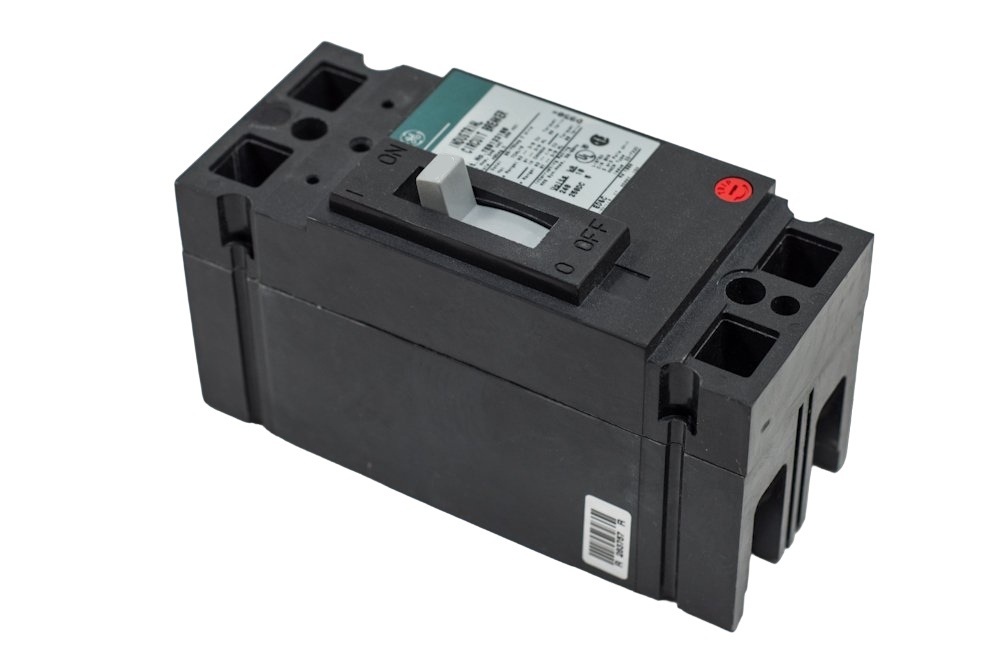

TED124015WL - General Electric Feed-Thru 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124015WL - General Electric 15 Amp 2 Pole 480V Molded Case Circuit Breaker TED Frame Thermal Magnetic - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED124015WL - General Electric Feed-Thru 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124015WL - General Electric 15 Amp 2 Pole 480V Molded Case Circuit Breaker TED Frame Thermal Magnetic - Essential Electric Supply

Description

TED124015WL


TED124015WL is a 15 Amp, 2 Pole molded case circuit breaker from General Electric designed for branch circuit protection in 480V applications.This General Electric TED124015WL circuit breaker features a thermal magnetic fixed trip unit, TED series frame, and is rated for 240/480 Vac and 250 Vdc operation. It has an interrupting rating of 18 kiloamperes at 240/480 Vac and 10 kiloamperes at 250 Vdc. The breaker includes copper/aluminum line and load lug terminals and meets UL certification standards.
  • Amperage: 15 Amps
  • Voltage Rating: 240/480 Vac, 250 Vdc
  • Poles: 2
  • Interrupting Rating: 18 kA at 240/480 Vac, 10 kA at 250 Vdc
  • Trip Unit: Fixed Thermal Magnetic
  • Series/Frame: TED
  • Mounting Type: Molded Case
  • Terminal Type: Copper/Aluminum Line and Load Lugs
  • Certifications: UL Listed
  • Dimensions: 2 3/4 Inch W x 3 3/8 Inch D x 6 5/16 Inch H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED124015WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 480
  • Amperage : 15
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 783164067972
  • GTIN : 00783164067972
  • Country of Origin : United States
  • Dimensions : 2-3/4 in x 6-5/16 in
  • Weight : 2
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
