SL800 - Essential Electric Supply
SL800 - Square D 800A 600VAC 3-Pole SL Frame Circuit Breaker Lug Kit Plug-On Mounting - Essential Electric Supply
Hover to zoom
SL800 - Essential Electric Supply
SL800 - Square D 800A 600VAC 3-Pole SL Frame Circuit Breaker Lug Kit Plug-On Mounting - Essential Electric Supply

Reference images. Contact us for photos of the available unit.


Square D

SL800

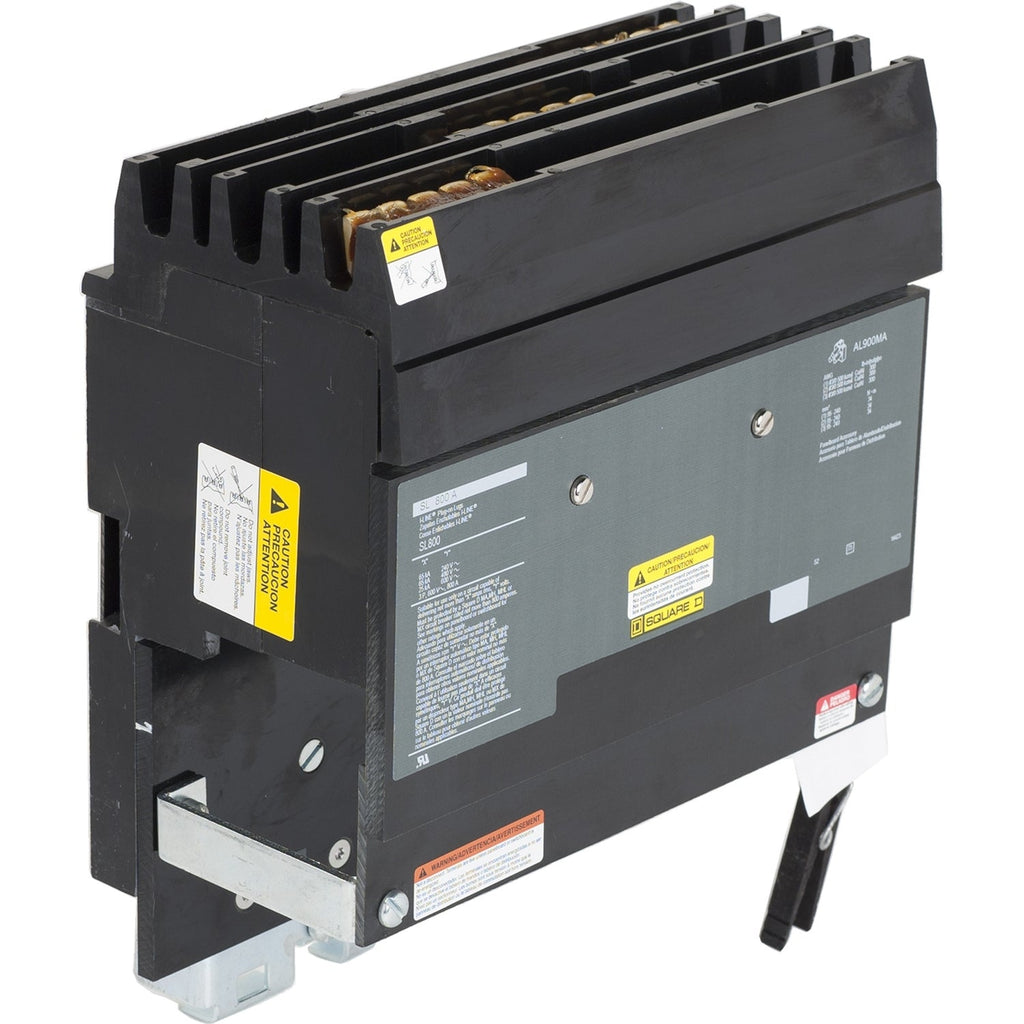

Square D 800A 600VAC 3-Pole SL Frame Circuit Breaker Lug Kit Plug-On Mounting

Current: 800Poles: 3Voltage: 600VAC
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$1,776.49 $18,700.00
Save $16,923.51
Low inventory, please call (866) 377-3532 for stock check
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Square D
Sub-Category
Lug Terminal Kit
Series
I-Line
Frame
SL
Rated current
800
Voltage
600VAC
Poles
3
Barrels
3
MCM Size
500
Metal Type
Aluminum
Compatible Frames
SL
UPC
785901368892
GTIN
00785901368892
Dimensions
Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
Show all specifications (3 more)
Weight
17
Certification
UL, CSA
Wire Size
AWG 3/0 to 500KCmil Aluminum/Copper
Product description & additional details

SL800


SL800 is a Square D 800 Amp 3-Pole Circuit Breaker Lug Terminal Kit designed for I-Line panelboards with plug-on mounting.This SL frame lug kit supports up to 600VAC and is rated for 800 Amps with a 3-pole configuration. It accepts wire sizes from AWG 3/0 to 500 kcmil aluminum or copper conductors. The lug kit is UL and CSA certified, made with durable aluminum material, and intended for residential, commercial, and industrial applications. It provides a reliable sub-feed connection compatible with Square D SL frame circuit breakers.
    Key Specifications
    • Amperage: 800A
    • Voltage Rating: 600VAC
    • Poles: 3
    • Frame Type: SL
    • Mounting Type: Plug-On
    • Wire Gauge: AWG 3/0 to 500 kcmil Aluminum/Copper
    • Certifications: UL, CSA
    • Compatible With: I-Line Panelboards
    • Material: Aluminum
    • Interrupt Rating: Not applicable (lug kit)
    • Trip Unit: None (lug kit)
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: SL800
    • Manufacturer : Square D
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Lug Terminal Kit
    • Family : I-Line
    • Type : SL
    • Voltage : 600VAC
    • Amperage : 800
    • Poles : 3
    • MCM Size : 500
    • Barrels : 3
    • Metal Type : Aluminum
    • Compatible Frames : SL

    Product Data

    • UPC : 785901368892
    • GTIN : 00785901368892
    • Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
    • Weight : 17
    • Certification : UL, CSA
    • Wire Size : AWG 3/0 to 500KCmil Aluminum/Copper

Return eligibility: what to know before ordering

Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.

Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.

Read the complete return and warranty policy ↗

Warranty supplied by Essential Electric

Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.

Review coverage, exclusions, and the claim process ↗
