SKHA36AT0800 - General Electric 800A 600V 3P SK Frame Molded Case Circuit Breaker, Spectra RMS, Bolt-On, Electronic Trip, 65kA Interrupt

SKHA36AT0800

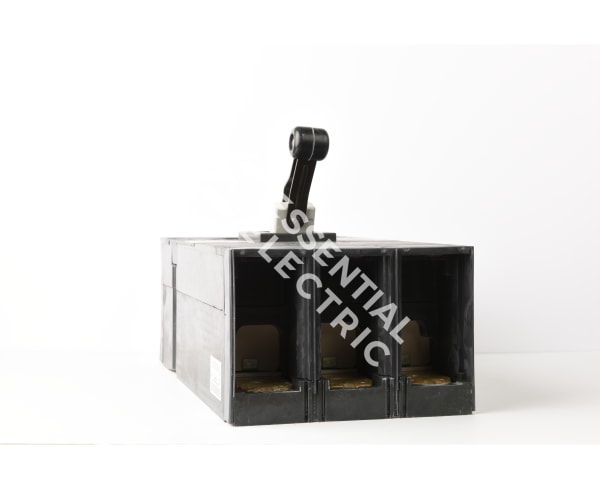

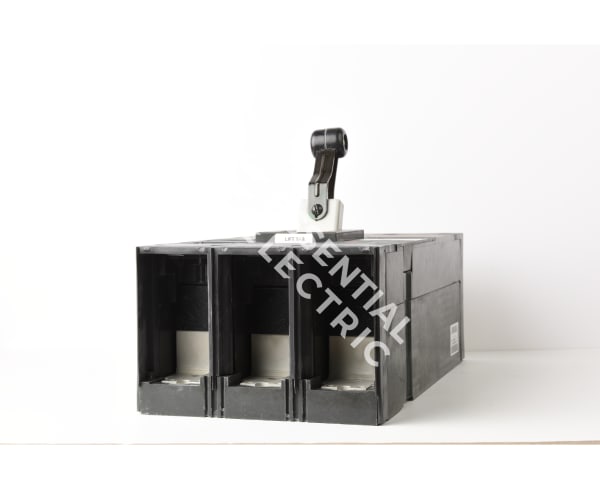

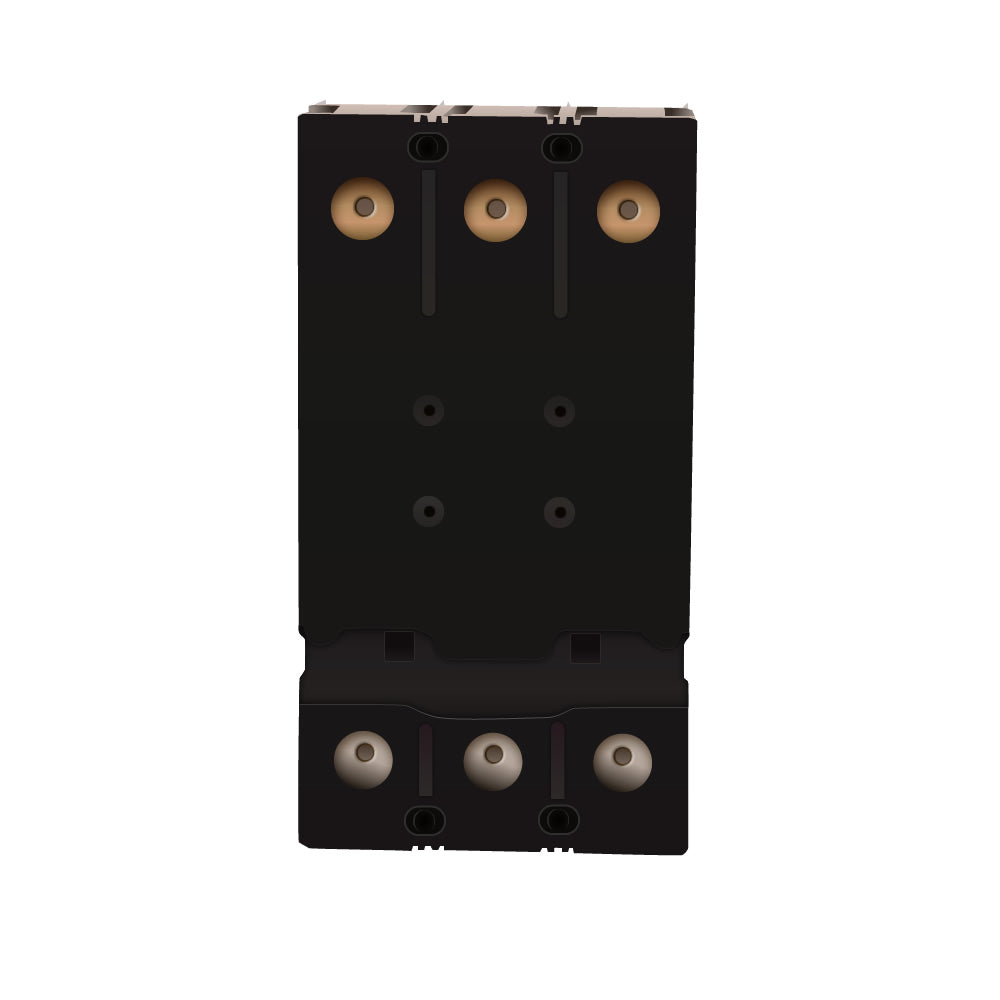

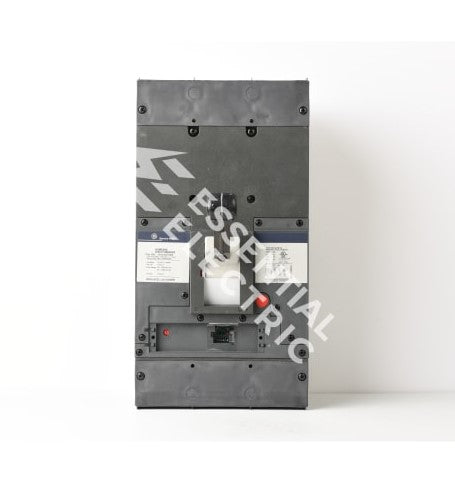

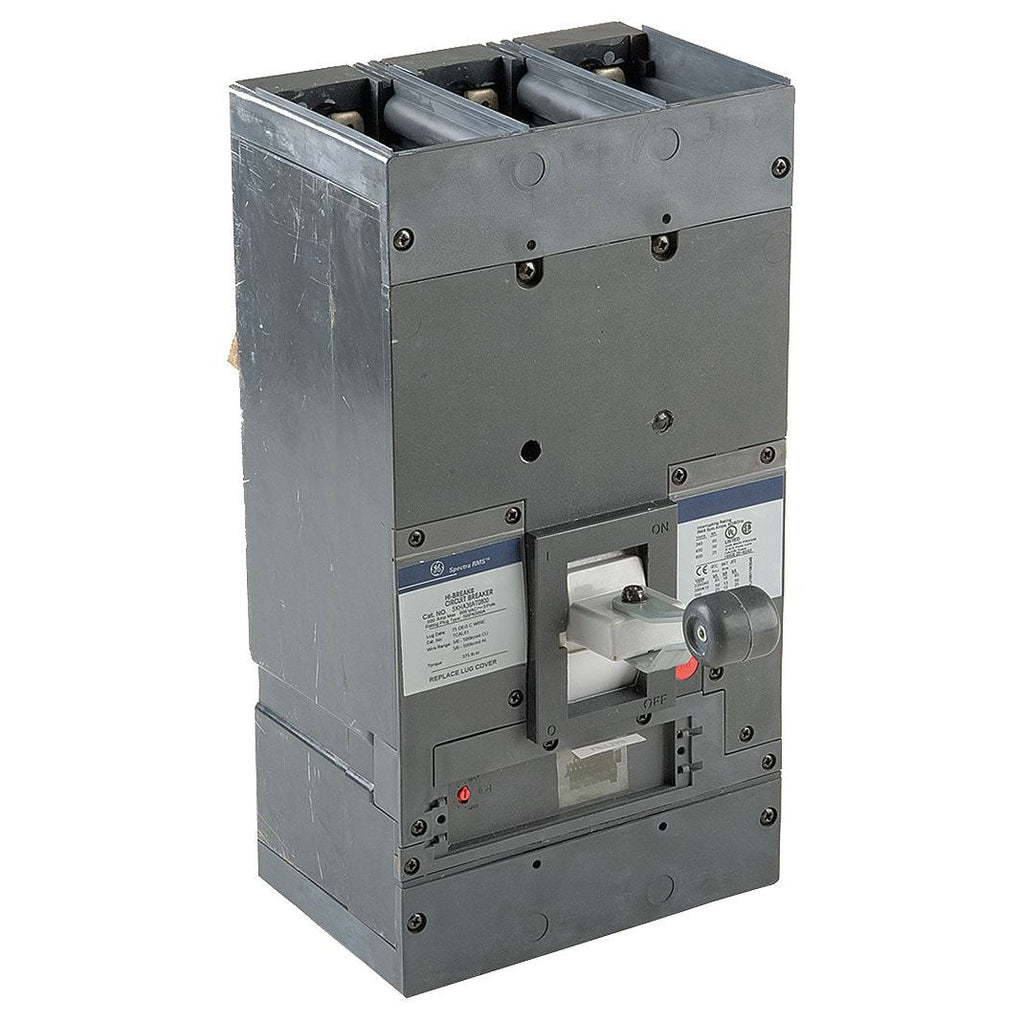

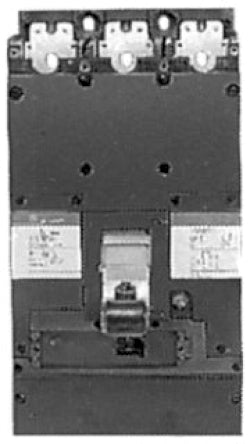

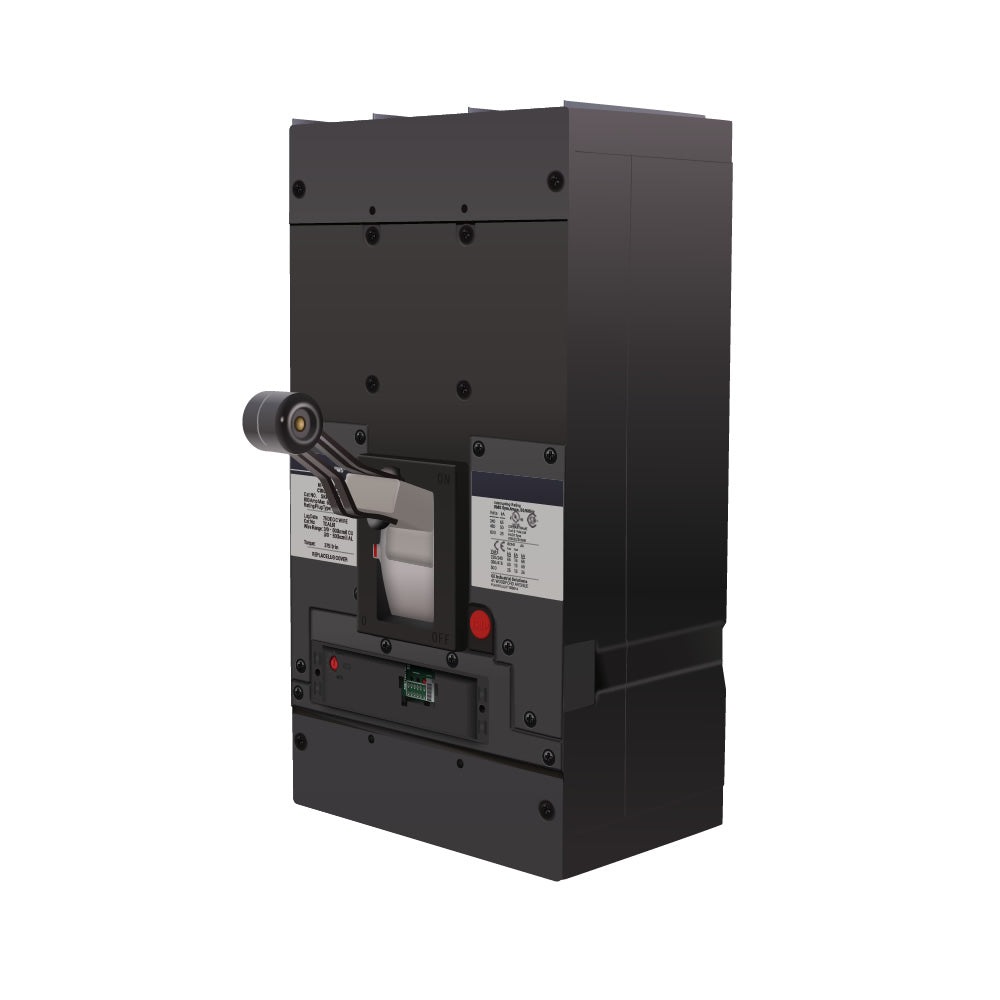

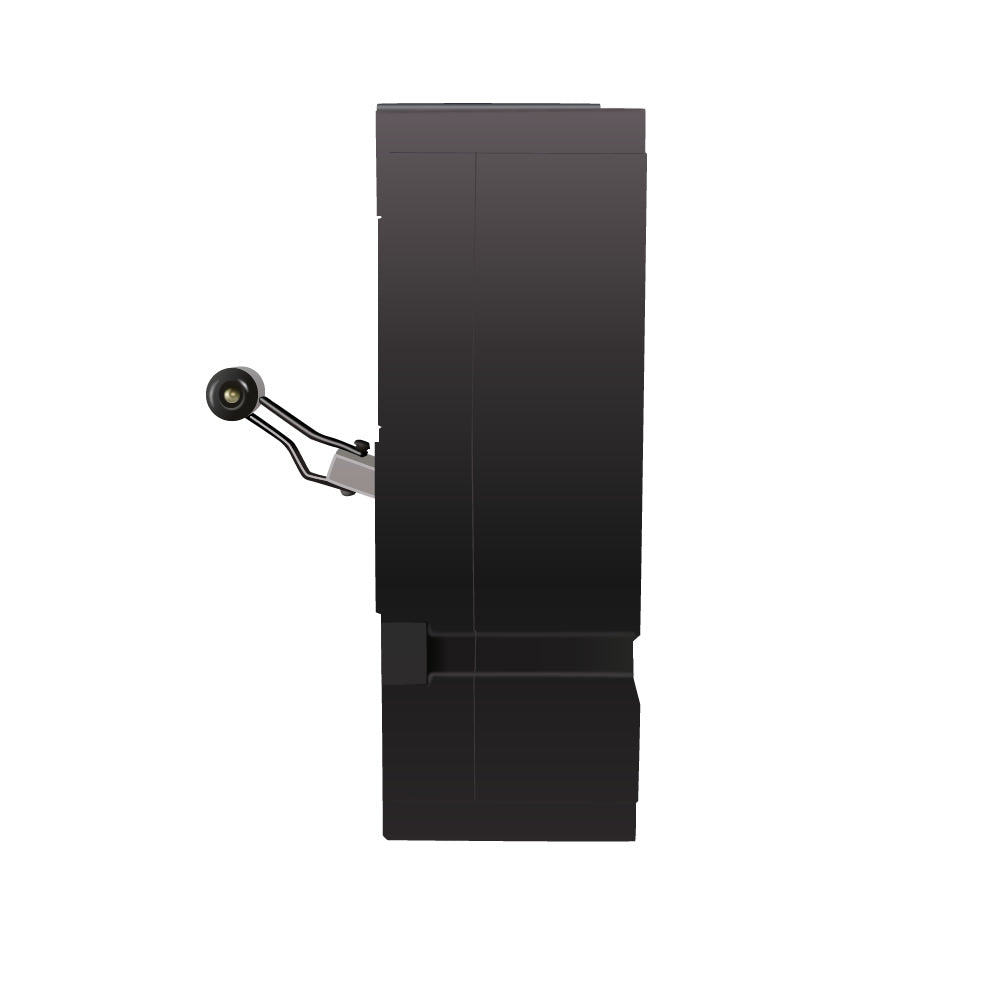

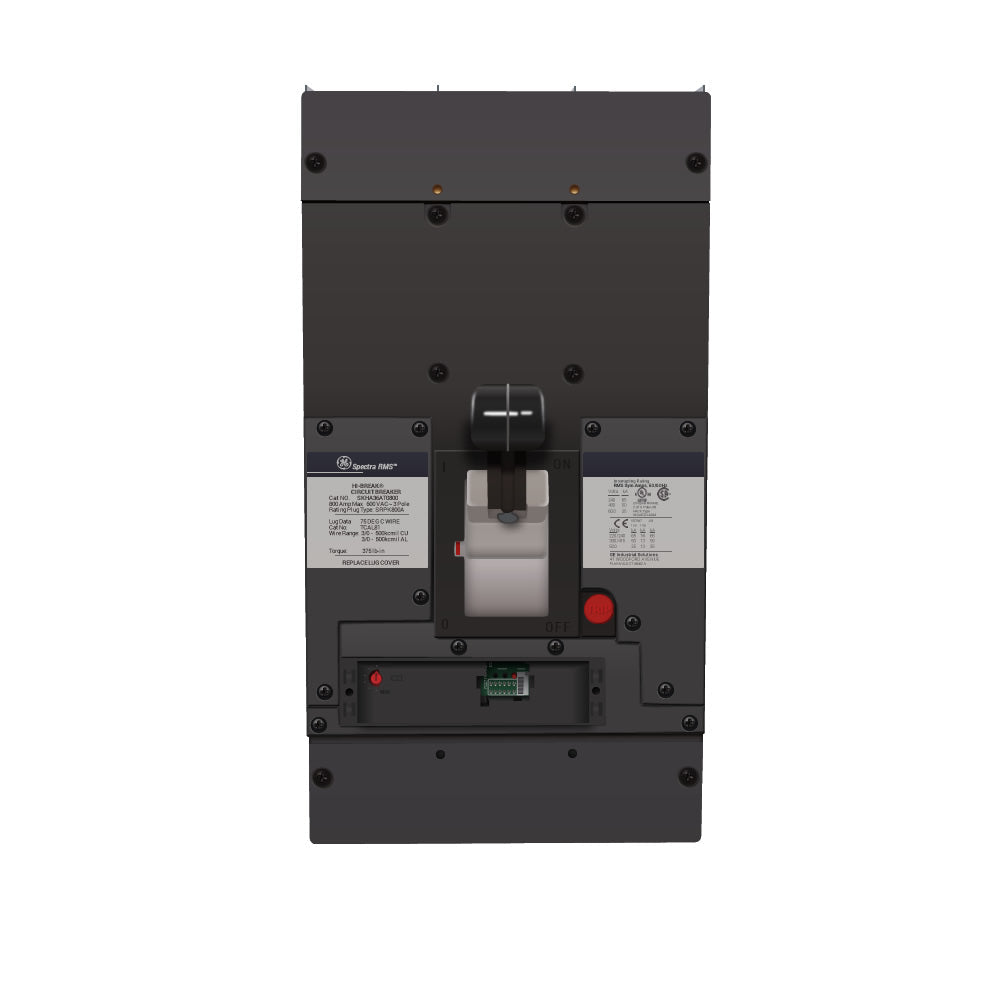

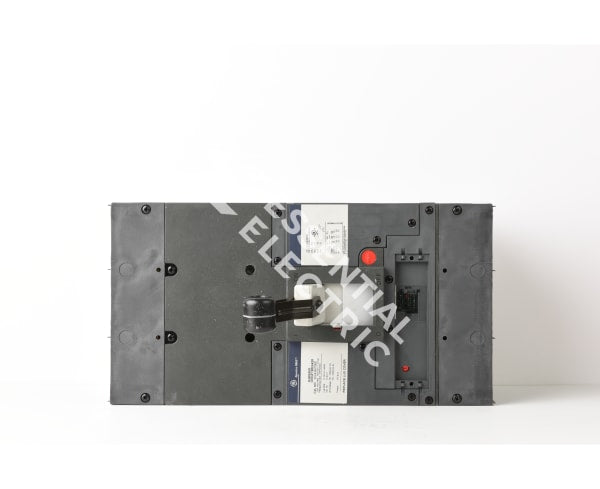

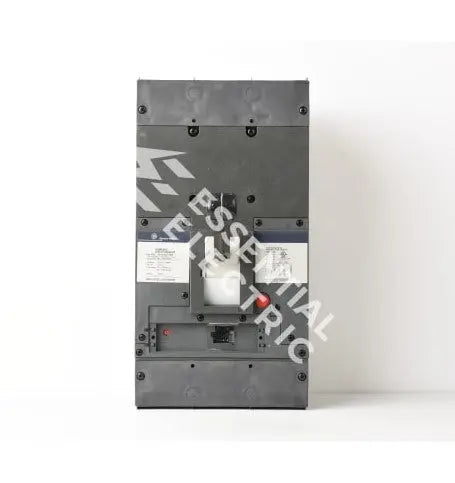

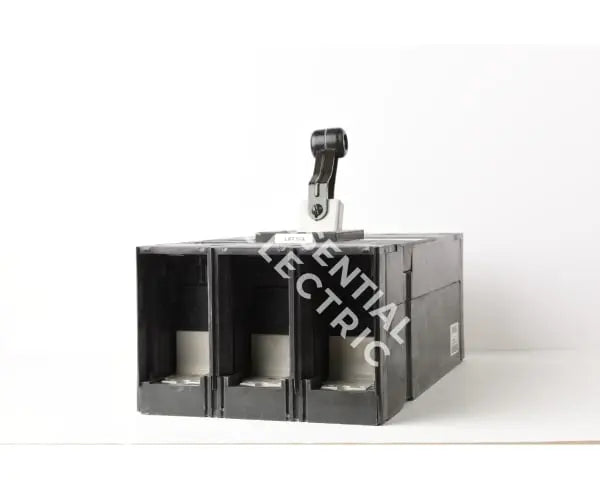

SKHA36AT0800 is a General Electric 800A, 600V, 3-pole molded case circuit breaker designed for demanding industrial applications.

This Spectra RMS series breaker features a solid-state, electronic trip unit with long-time, short-time, and instantaneous protection, housed in a robust SK frame. It is rated for standard continuous load, offers high interrupting capacity, and is suitable for bolt-on mounting. The breaker is UL and CSA listed, with HACR marking for HVAC applications.

Key Specifications
• Amperage: 800A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 240V, 50kA at 480V, 25kA at 600V (UL); 100kA at 220-240V, 65kA at 380-415V, 42kA at 500V, 14kA at 690V (IEC)
• Series/Frame: Spectra RMS, SK Frame
• Trip Unit: Digital, solid-state RMS1, LSI (Long-Time, Short-Time, Instantaneous)
• Certifications: UL (E11592), CSA (LR40350), HACR
• Dimensions: 15.5" H x 8.25" W x 5.5" D
• Weight: 40.05 lbs
• Connection: Bolt-On
• Continuous Current Rated: Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SKHA36AT0800
• Manufacturer : General Electric
• Brand : General Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Spectra Series
• Type : SKHA
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : Long Time, Short Time and Instantaneous Trip
• Protection : Solid State

Product Data

• UPC : 783164211740
• GTIN : 00783164211740
• Dimensions : 8.25" X 5.5" X 15.5"
• Weight : 57 lb
