Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Shunt Trip
Description
S47362

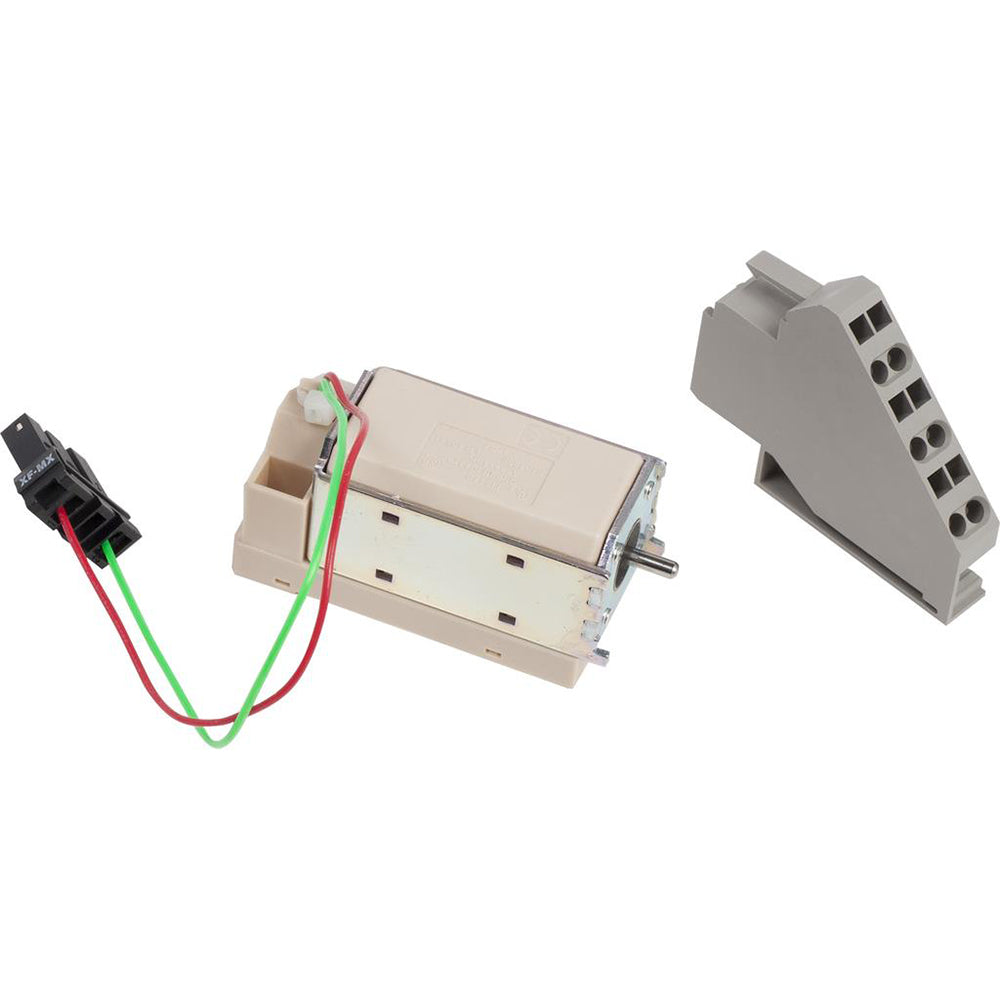

S47362 is a Square D circuit breaker shunt trip/close accessory that provides remote trip and close capability for MasterPact NT, NW, and Y frame circuit breakers. This field-installable unit accepts momentary or maintained inputs and operates at 100 to 130 V AC/DC, making it suitable for 50/60 Hz applications. The three-wire lead connection design enables flexible integration into existing control systems. Key Specifications
- Part Number: S47362
- Manufacturer: Square D (Schneider Electric)
- Product Type: Shunt Trip/Close Accessory
- Rated Voltage: 100 to 130 V AC/DC
- Frequency Rating: 50/60 Hz
- Compatible Frames: MasterPact NT, NW, Y Frame Circuit Breakers
- Connection Type: 3-Wire Lead
- Installation: Field Installable
- Input Type: Momentary or Maintained
- Certifications: UL, IEC, CSA
- Operating Temperature: 0 to 40 degrees Celsius
- Humidity: 80% non-condensing
Specifications
- Part Number: S47362
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Control Voltage Minimum : 100
- Compatible Frames : NW,NT
- Control Voltate Maximum : 130
Product Data
- UPC : 785901942771
- GTIN : 00785901942771
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.47
