Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
RLF36160U31F

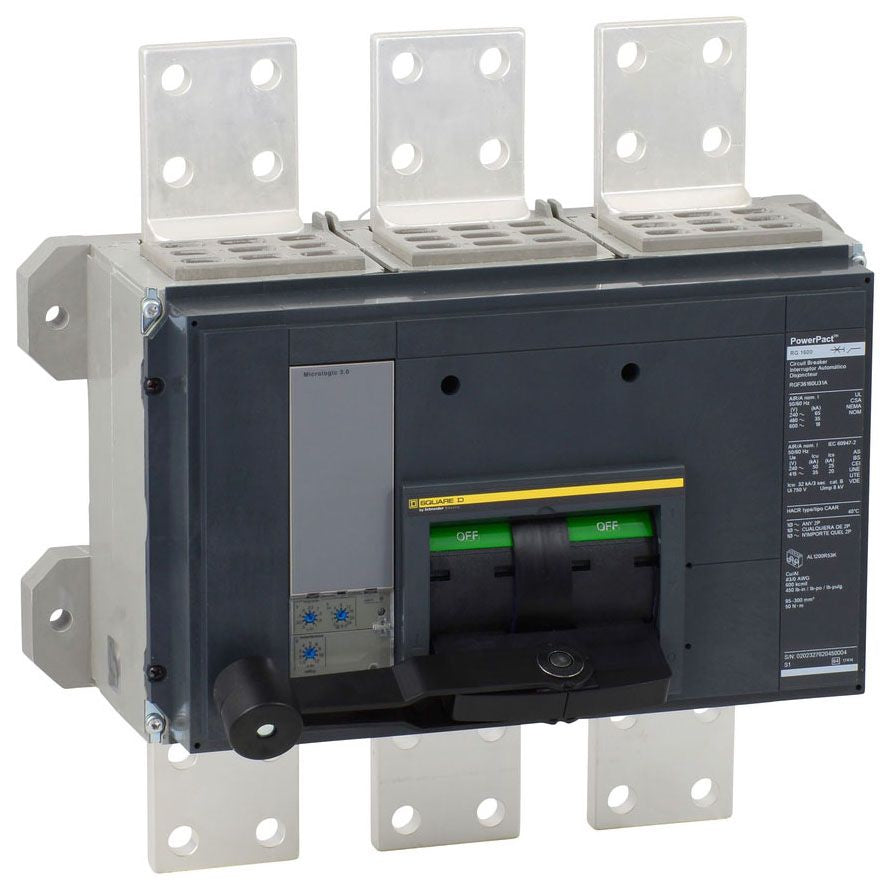

RLF36160U31F is a Square D 1600 amp, 600 volt, 3 pole bolt-on molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a bolt-on mounting type and is part of the PowerPact R frame series. It has an interrupt rating of 100kA at 480V, ensuring high fault current interruption capability. The breaker is engineered for industrial and commercial applications requiring robust and durable circuit protection.
- Amperage: 1600A
- Voltage Rating: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA @ 480V
- Series/Frame: PowerPact R
- Type: Molded Case Circuit Breaker
Specifications
- Part Number: RLF36160U31F
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : RLF
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Solid State
Product Data
- GTIN : 03606486286838
- Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
- Weight : 52.001
- Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...750 kcmil aluminium/copper
