Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

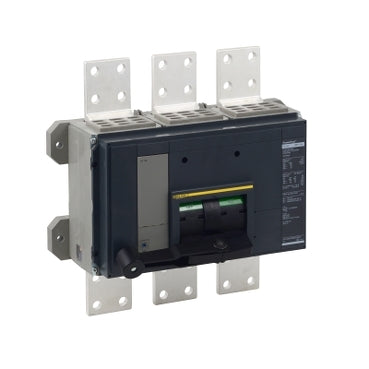

RLF36160
RLF36160 is a 3-pole, 600-volt, 1600-ampere molded case circuit breaker from Square D's PowerPact R-frame family, designed to protect electrical systems from overloads and short circuits. This heavy-duty breaker combines robust construction with reliable performance for industrial and commercial power distribution applications requiring high-amperage protection at medium voltage levels. Key Specifications
- Part Number: RLF36160
- Manufacturer: Square D
- Poles: 3
- Voltage Rating: 600V AC
- Amperage Rating: 1600A
- Frame: PowerPact R-Frame
- Type: Molded Case Circuit Breaker
- Interrupt Rating: 50kA at 600VAC
- Thermal Magnetic Trip Unit: ET 1.0I at 80%
Specifications
- Part Number: RLF36160
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : RLF
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 606481970667
- GTIN : 03606481970664
- Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
- Weight : 52.001
- Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...750 kcmil aluminium/copper
