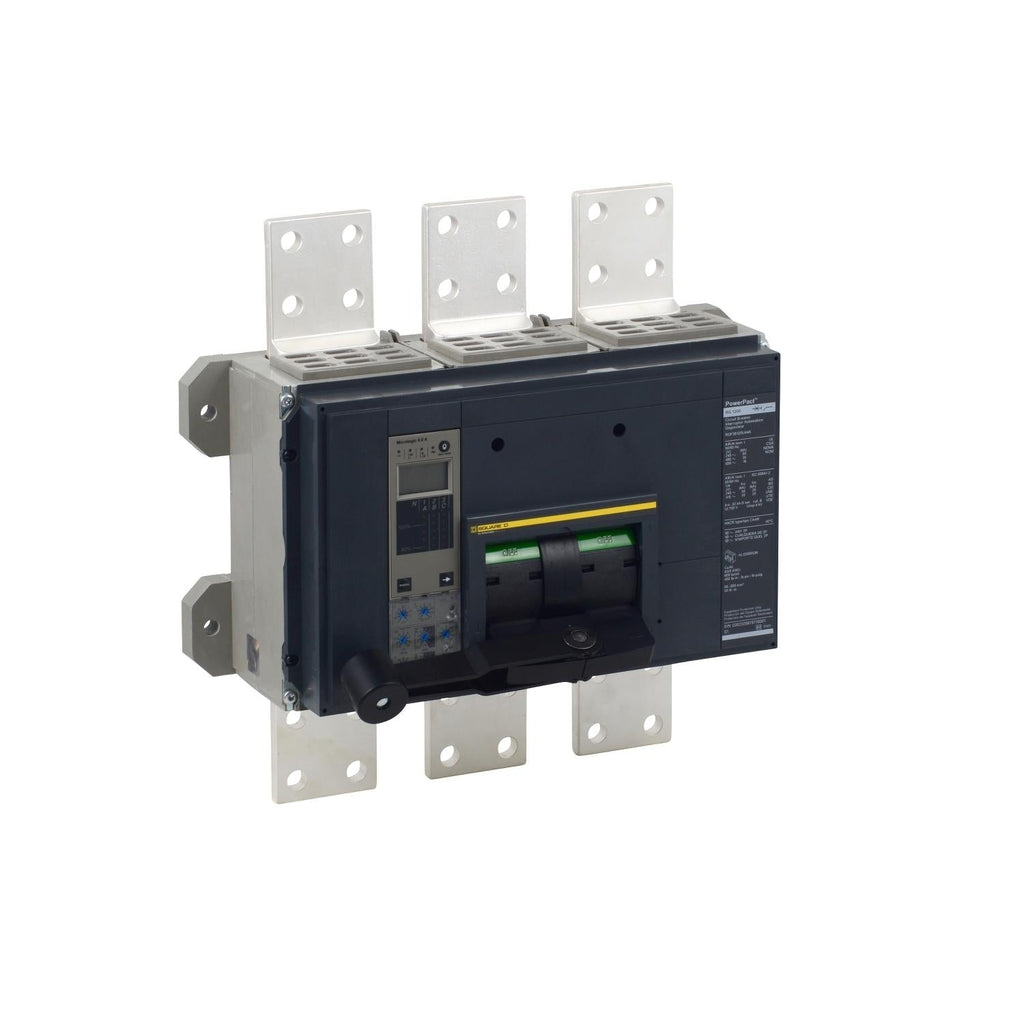

RJF36160U44A - Square D 1600A 600V 3-Pole PowerPact R-Frame Molded Case Circuit Breaker

RJF36160U44A

RJF36160U44A is a Square D PowerPact R-Frame molded case circuit breaker designed for high-capacity electrical protection.This 3-pole circuit breaker features a 1600 ampere current rating and is rated for use up to 600 volts AC. It includes an electronic trip unit with instantaneous, long time, and short time trip functions. The breaker is unit mount type and carries UL 489, CSA, and NOM certifications. It has a J interrupt rating and is suitable for busbar mounting.

• Manufacturer: Square D
• Part Number: RJF36160U44A
• Current Rating: 1600 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3
• Frame/Series: PowerPact R-Frame
• Trip Unit: Electronic (Instantaneous, Long Time, Short Time)
• Mounting Type: Unit Mount (Busbar)
• Interrupt Rating: J
• Certifications: UL 489, CSA, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RJF36160U44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RJF
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time, Short Time, Instantaneous, Ground Fault Trip
• Frame Size : R Frame
• Protection : Solid State

Product Data

• UPC : 785901280842
• GTIN : 00785901280842
• Country of Origin : Mexico
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 74.999
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
