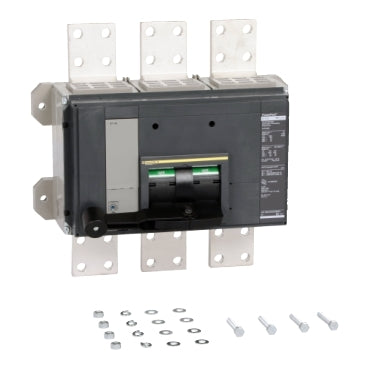

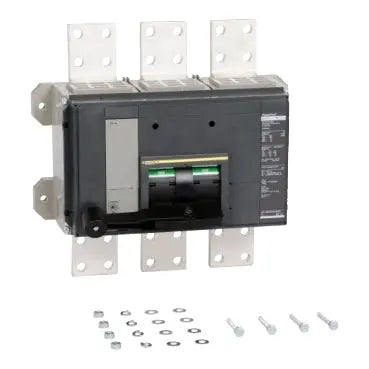

RJF36160 - Square D PowerPact R Frame Molded Case Circuit Breaker 1600A 600VAC 3 Pole Unit Mount

RJF36160

RJF36160 is a Square D PowerPact R Frame molded case circuit breaker designed for high-capacity electrical protection.

This circuit breaker features a 1600 ampere rating, 3 poles, and a maximum voltage rating of 600 VAC. It is unit mount type with a 25kA interrupting rating and an electronic trip unit with ET 1.0I and 80% continuous current rating. The breaker is UL 489 listed and CSA approved, suitable for industrial and commercial power distribution applications.

• Manufacturer: Square D
• Model: RJF36160
• Frame: PowerPact R
• Amperage: 1600 A
• Poles: 3
• Voltage Rating: 600 VAC
• Interrupt Rating: 25 kA
• Mounting Type: Unit Mount
• Trip Unit: Electronic Trip, ET 1.0I, 80% continuous rating
• Certifications: UL 489 Listed, CSA Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RJF36160
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RJF
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 785901566571
• GTIN : 00785901566571
• Country of Origin : Mexico
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 67.999
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
