Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
RJA36100CU33A

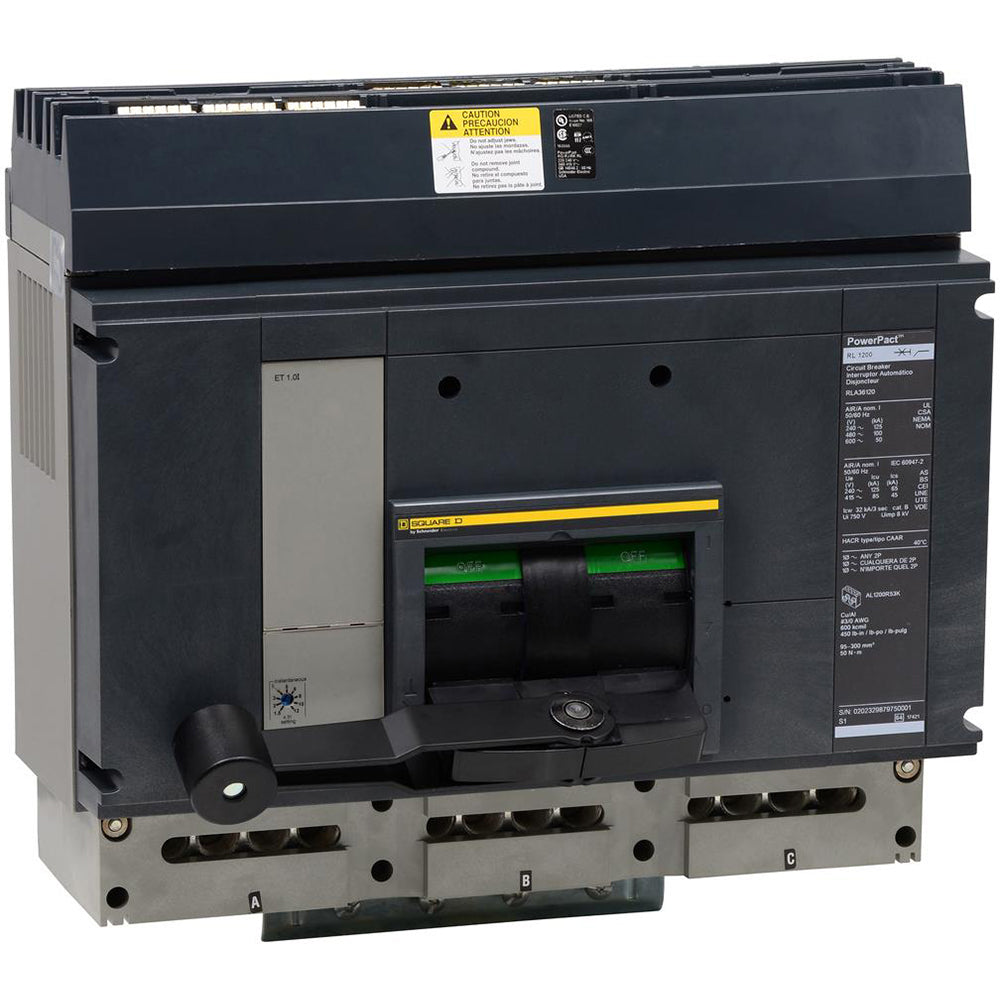

RJA36100CU33A is a Square D PowerPact R-frame molded case circuit breaker designed for reliable power distribution in commercial and industrial applications. This 3-pole, 1000A, 600VAC breaker features a 25kA interrupt rating and is equipped with the MicroLogic 5.0 electronic trip unit for precise protection and monitoring. The unit is I-Line compatible and rated for 100% continuous current, making it suitable for demanding environments. Engineered for durability and safety, the RJA36100CU33A is UL listed and meets rigorous industry standards. Its compact design and interchangeable trip units allow for flexible installation and easy maintenance. The breaker is designed for manual operation and is suitable for use in switchgear and panelboards.
- Manufacturer: Square D
- Series/Frame: PowerPact R
- Amperage: 1000A
- Number of Poles: 3
- Voltage: 600VAC
- Interrupt Rating: 25kA
- Mounting Type: I-Line
- Continuous Current Rating: 100%
- Trip Unit: MicroLogic 5.0
- Application: Molded Case Circuit Breaker
- Certifications: UL Listed
- Phase: 3 Phase
Specifications
- Part Number: RJA36100CU33A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : RJA
- Voltage : 600
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : I-Line Style Plug-In
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 606486287012
- GTIN : 03606486287019
- Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
- Weight : 52.001
- Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 4 x AWG 3/0...600 kcmil aluminium/copper
4 x AWG 3/0...500 kcmil copper
