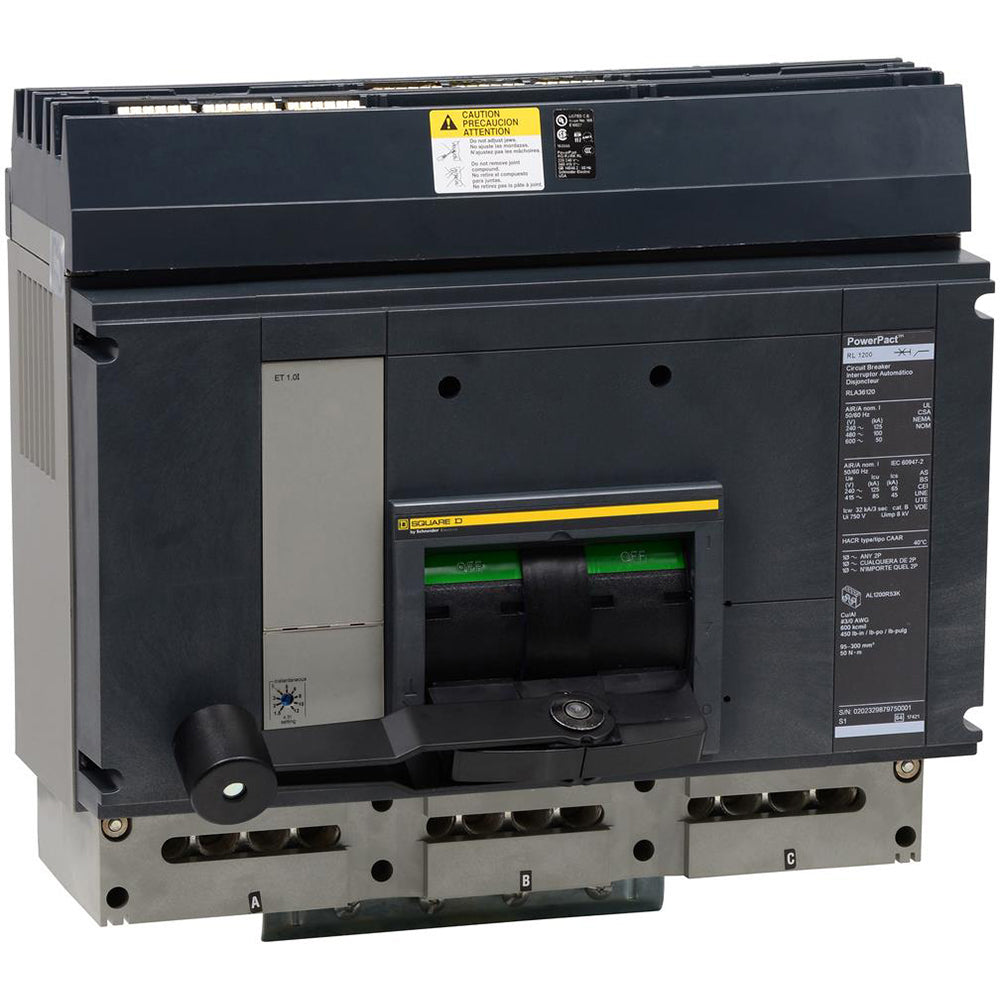

RJA36100CU31A - Square D PowerPact RJA 600V 1000A 3 Pole I-Line Plug-In Molded Case Circuit Breaker

RJA36100CU31A

RJA36100CU31A is a 3 pole, 600V, 1000A molded case circuit breaker from the Square D PowerPact RJA series, designed for I-Line plug-in mounting applications. This breaker features a high interrupt rating and is built for reliable performance in demanding electrical environments. The RJA36100CU31A is engineered for use in commercial and industrial power distribution systems, offering robust protection and compatibility with I-Line busway systems. Its plug-in design allows for quick installation and easy replacement, while the 1000A rating and 65kA@480V AIC ensure safe operation under high fault conditions.

• Part Number: RJA36100CU31A
• Manufacturer: Square D
• Series: PowerPact RJA
• Amperage: 1000A
• Voltage: 600V
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 65kA@480V, 100kA@240V
• Frame: RJA
• Trip Unit: Thermal-Magnetic
• Standards: UL 489, UL 1066, ANSI C37
• Application: Commercial/Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RJA36100CU31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RJA
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 785901912651
• GTIN : 00785901912651
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.001
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...600 kcmil aluminium/copper
  4 x AWG 3/0...500 kcmil copper
