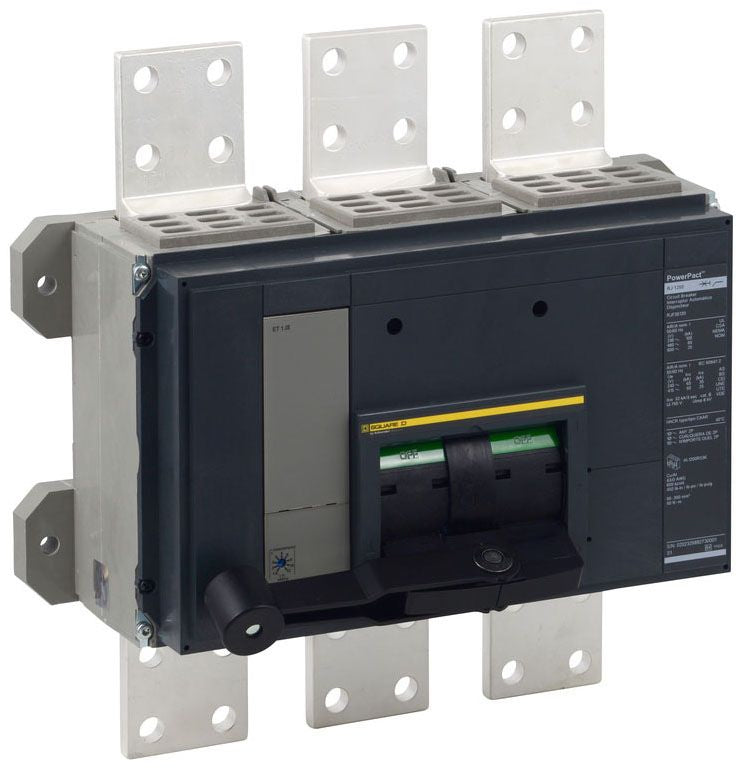

RGF36200CU31A - Square D PowerPact R Frame Molded Case Circuit Breaker 2000A 600VAC 3 Pole Micrologic Trip

RGF36200CU31A

RGF36200CU31A is a Square D PowerPact R Frame molded case circuit breaker designed for high-capacity industrial power distribution applications.RGF36200CU31A features a 2000 ampere rating with a maximum voltage of 600 VAC and three poles. It includes a Micrologic 3.0 electronic trip unit for precise protection and control. This unit is UL 489 and CSA listed, suitable for unit mounting, and offers an interrupt rating of 18 kA at 600 VAC. The breaker is part of the PowerPact R Frame series, known for robust performance in demanding environments.

Key Specifications
• Amperage: 2000A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 18 kA @ 600 VAC
• Series/Frame: PowerPact R Frame
• Trip Unit: Micrologic 3.0 Electronic Trip
• Certifications: UL 489 Listed, CSA Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RGF36200CU31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RGF
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : R Frame
• Protection : Solid State

Product Data

• UPC : 785901536628
• GTIN : 00785901536628
• Country of Origin : Mexico
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 74
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
