Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

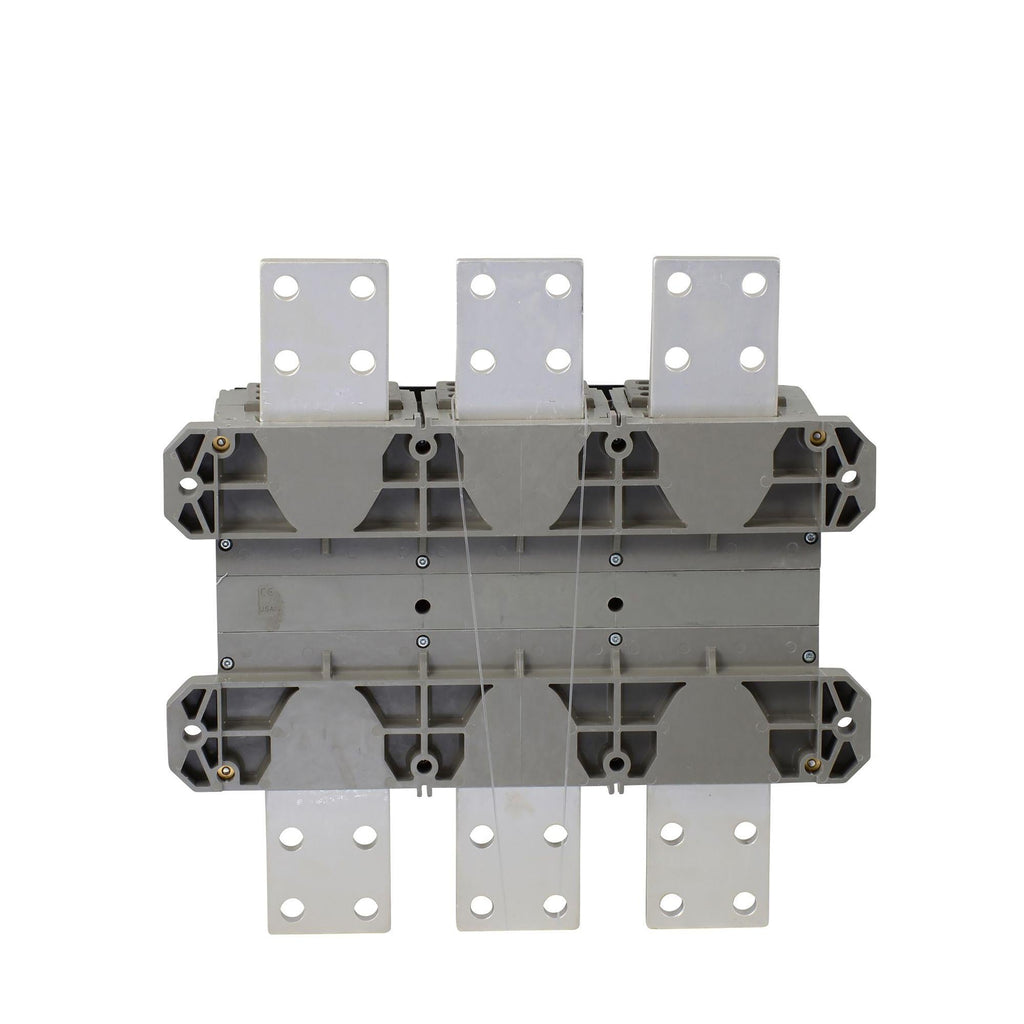

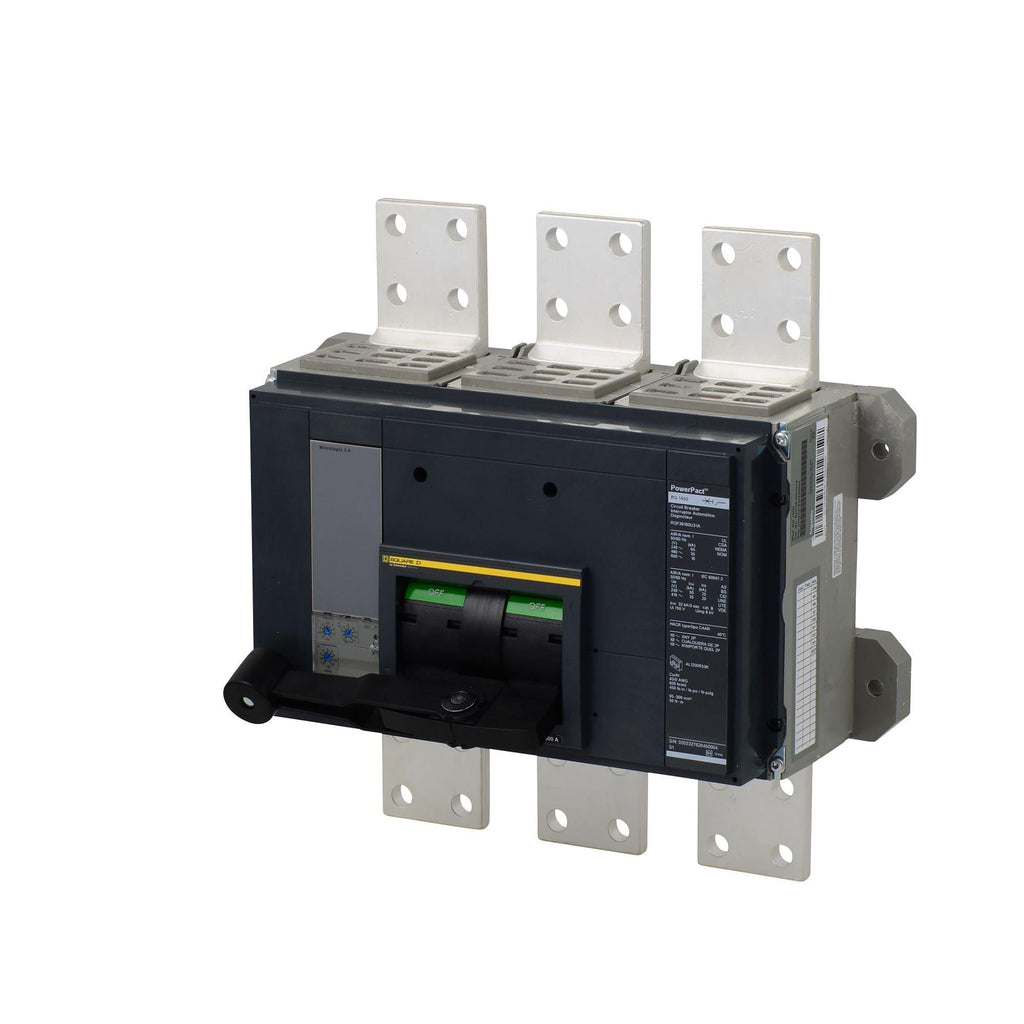

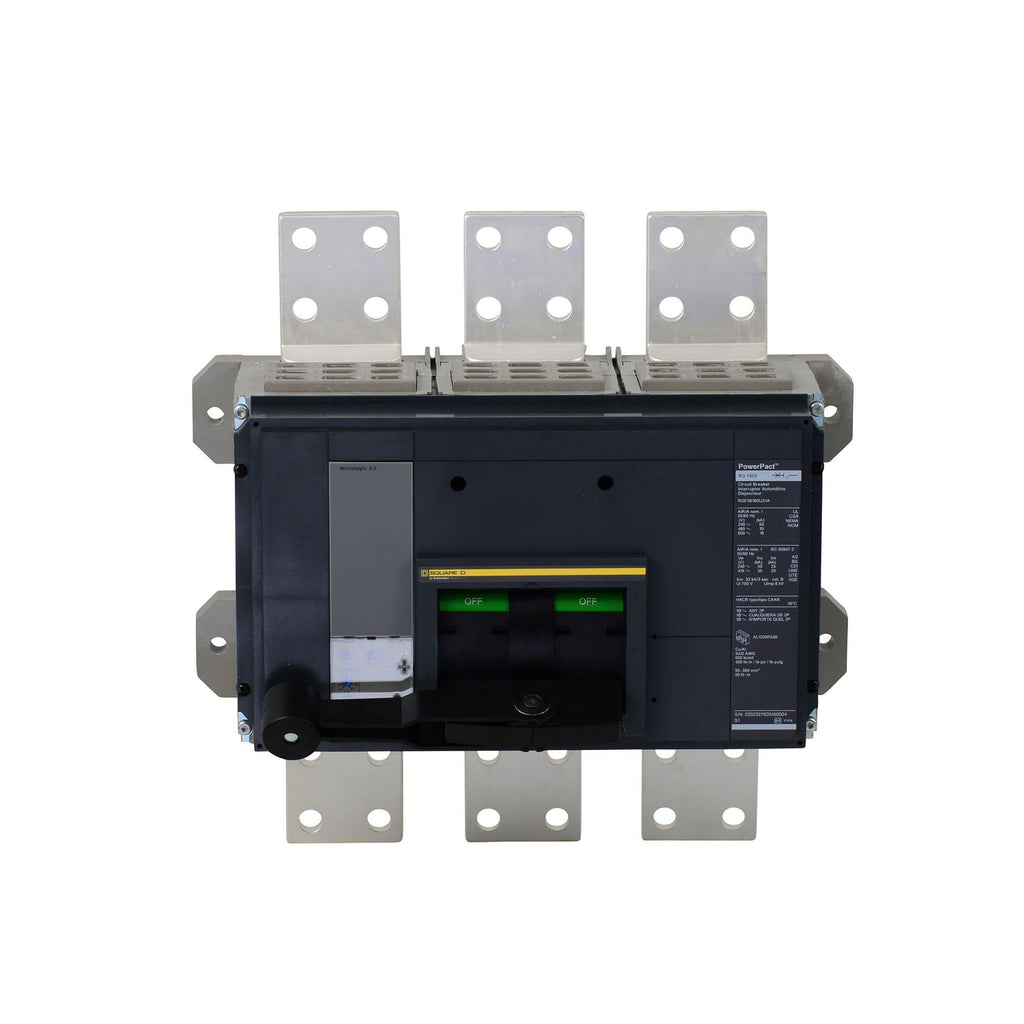

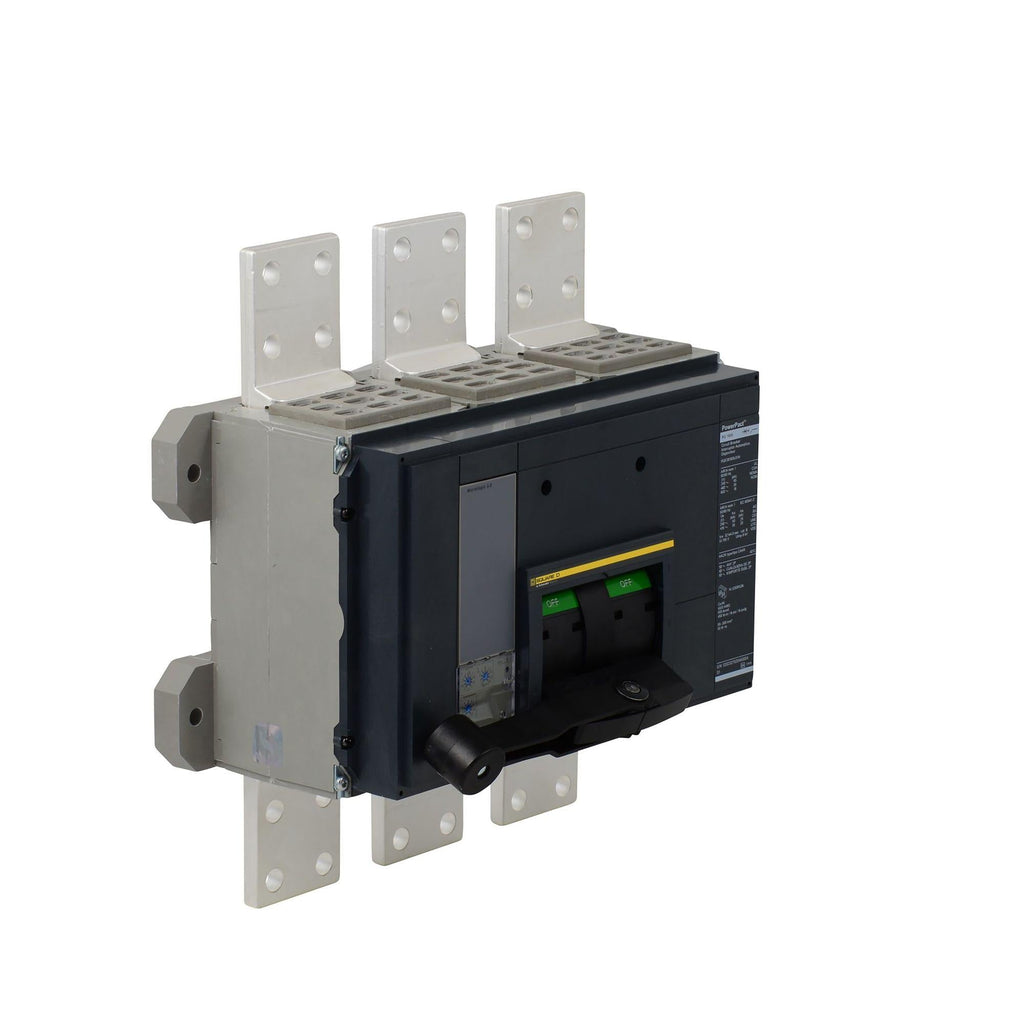

RGF36160U31A
RGF36160U31A is a 3 pole, 1600 Amp, 600 VAC molded case circuit breaker from Square D's PowerPact R series designed for solid state protection.This circuit breaker features a bolt-on connection type, long-time and instantaneous trip functions, and an interrupt rating of 35kAIC at 480VAC.
- Key Specifications
- Amperage: 1600 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Series/Frame: PowerPact R
- Interrupt Rating: 35kAIC at 480 VAC
- Mounting Type: Unit (Bolt-On)
- Trip Unit: LI (Long-Time and Instantaneous)
- Connection Type: Bolt-On
- Certifications: UL, CSA, CE, NEMA, NOM, IEC, NMX
- Terminal Connection: Busbar Line and Busbar Load
- Operating Temperature: -25 to 70 °C
- Dimensions (W x D x H): 16.54 x 14.49 x 16.24 inches
Specifications
- Part Number: RGF36160U31A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : RGF
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : R Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Solid State
Product Data
- UPC : 785901299448
- GTIN : 00785901299448
- Country of Origin : Mexico
- Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
- Weight : 67.589
- Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...750 kcmil aluminium/copper
