RGF36160CU63AE1 - Square D PowerPact R-Frame 1600 Amp 600V 3-Pole Molded Case Circuit Breaker

RGF36160CU63AE1

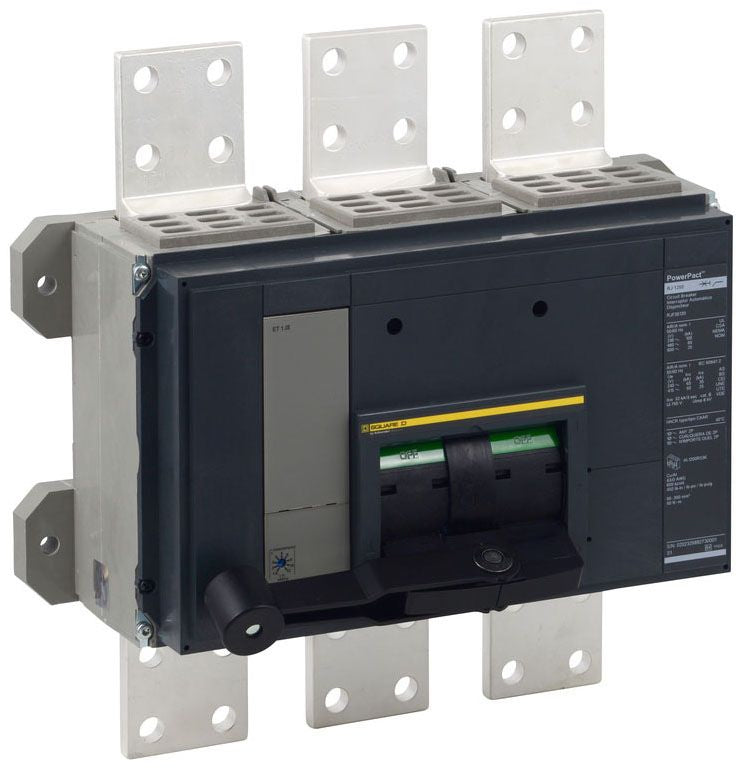

RGF36160CU63AE1 is a Square D PowerPact R-Frame molded case circuit breaker rated for 1600 amperes at 600 volts AC with three poles and unit mount configuration.

This UL 489 listed circuit breaker features electronic trip protection with Micrologic 5.0 trip unit capability. The R-Frame design provides compact installation while delivering high interrupt ratings across multiple voltage levels. The breaker is suitable for industrial and commercial power distribution applications requiring reliable overcurrent protection and coordination with downstream devices.

• Amperage: 1600 Amp
• Voltage Rating: 600 VAC
• Poles: Three Pole (3P)
• Frame Type: R-Frame
• Mounting: Unit Mount
• Series: PowerPact
• Trip Unit: Electronic with Micrologic 5.0 option
• Interrupt Rating: 65 kA at 240V, 35 kA at 480V, 18 kA at 600V
• UL Listing: UL 489
• Width: 16.53 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included

Specifications

• Part Number: RGF36160CU63AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RGF
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : R Frame
• Protection : Solid State

Product Data

• UPC : 078590198275
• GTIN : 00785901982753
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 67.682
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
