Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
RGF36120CU41A

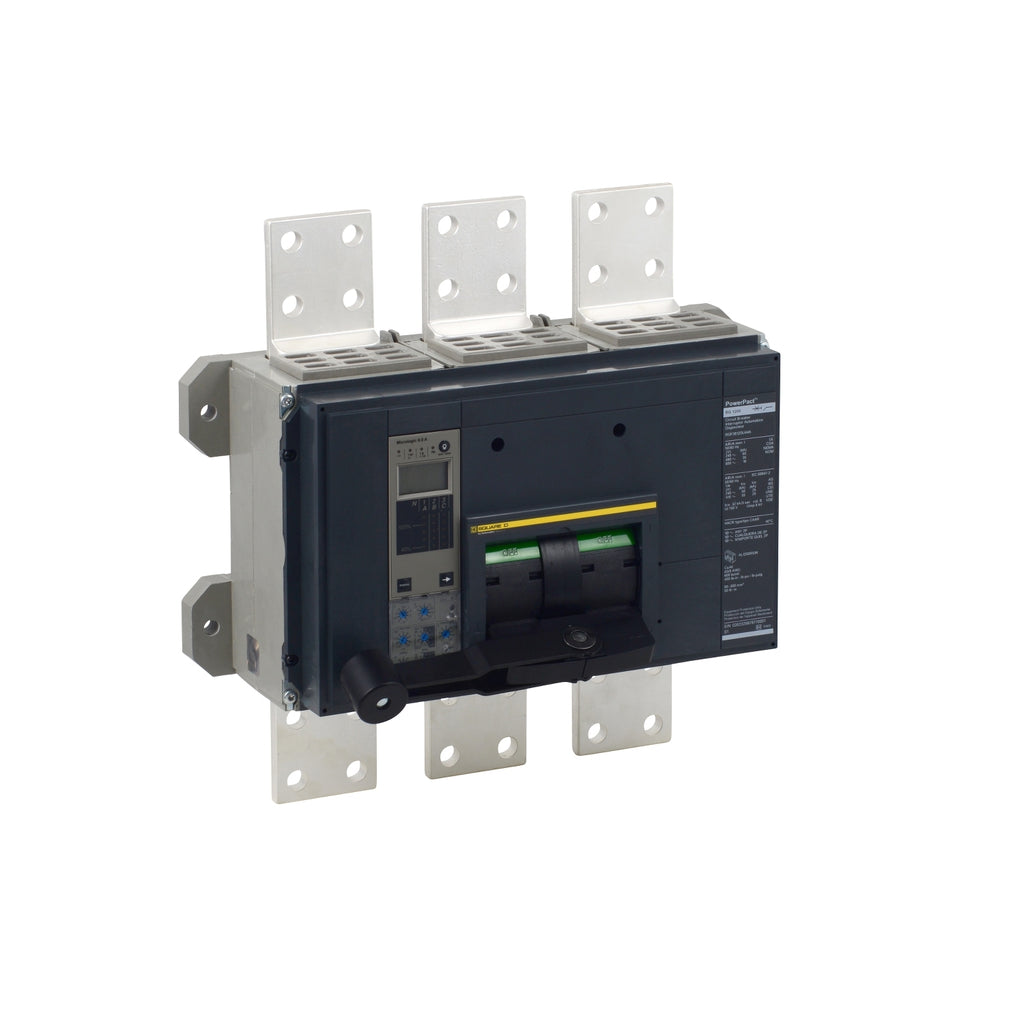

RGF36120CU41A is a Square D PowerPact R molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a 1200 ampere rating with 3 poles and operates at 600 volts AC. It has an interrupt rating of 18kA at 600VAC and includes a Micrologic 3.0A electronic trip unit for precise protection and control. The breaker is designed for busbar mounting and supports 100% rated continuous current.
- Key Specifications
- Manufacturer: Square D
- Series/Frame: PowerPact R
- Amperage: 1200A
- Voltage Rating: 600VAC
- Poles: 3
- Interrupt Rating: 18kA @ 600VAC
- Trip Unit: Micrologic 3.0A
- Mounting Type: Busbar
- Continuous Current Rating: 100%
Specifications
- Part Number: RGF36120CU41A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : RGF
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : R Frame
- Protection : Solid State
Product Data
- Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
- Weight : 52.001
- Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...750 kcmil aluminium/copper
