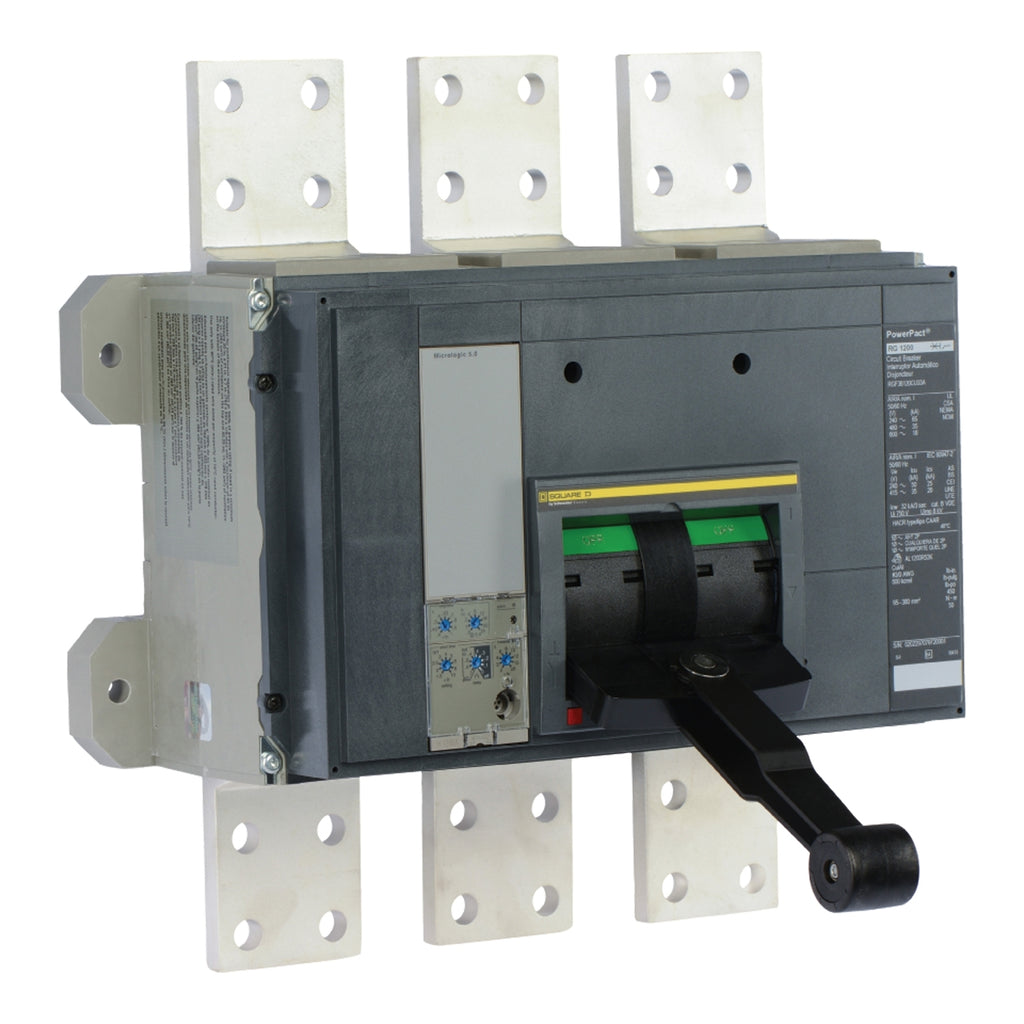

RGF36120CU33A - Square D PowerPact R-Frame 1200A 600V 3 Pole Molded Case Circuit Breaker

RGF36120CU33A

RGF36120CU33A is a three-pole, 1200 amp, 600V molded case circuit breaker from the Square D PowerPact R-Frame series, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a Micrologic 5.0 trip unit for precise overload and short circuit protection, and is rated for 18 kA interrupt capacity at 600VAC. Engineered for durability and safety, the RGF36120CU33A is suitable for a wide range of applications requiring high current interruption and dependable performance. It is UL 489 Listed and meets CSA NMX and IEC certification standards.

• Part Number: RGF36120CU33A
• Manufacturer: Square D
• Series/Frame: PowerPact R-Frame
• Amperage: 1200A
• Voltage: 600VAC
• Poles: 3 Pole
• Interrupt Rating: 18 kA @ 600VAC
• Mounting Type: Bolt-On
• Protection Type: Overload and Short Circuit
• Trip Unit: Micrologic 5.0
• Certifications: UL 489 Listed, CSA NMX, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RGF36120CU33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RGF
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State

Product Data

• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.001
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
