QOU125 - Square D 25 Amp 1 Pole 120/240VAC Bolt-On Circuit Breaker, QOU Series, 10kA Interrupt Rating, HACR Rated

QOU125

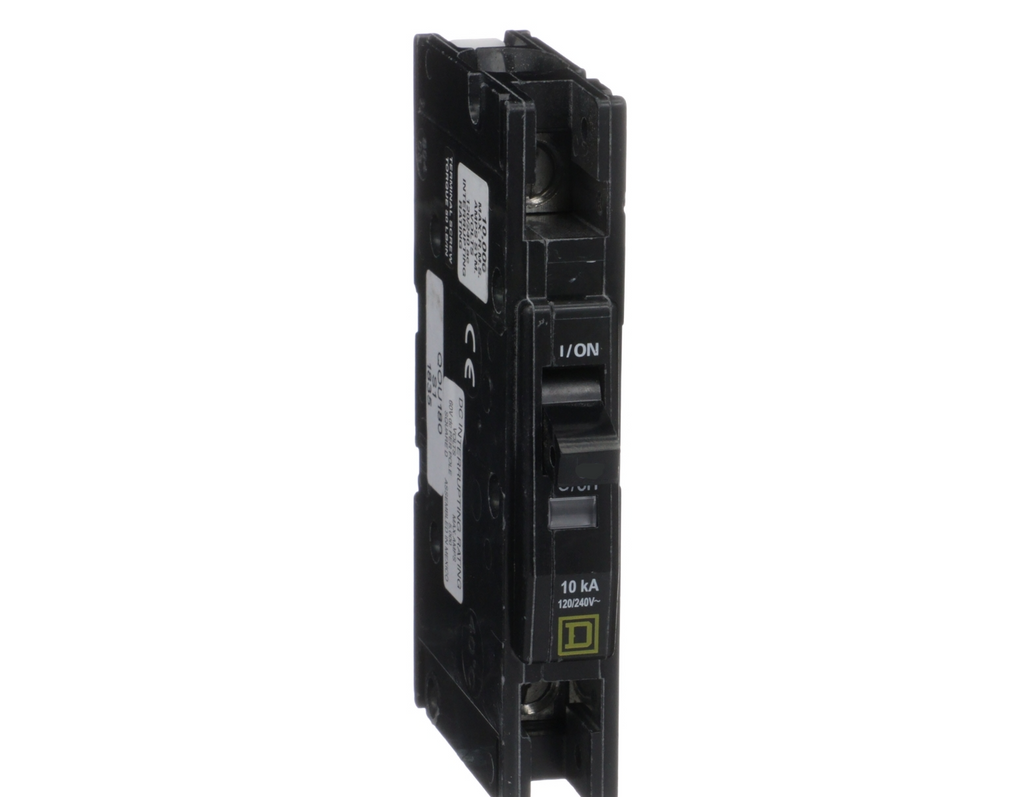

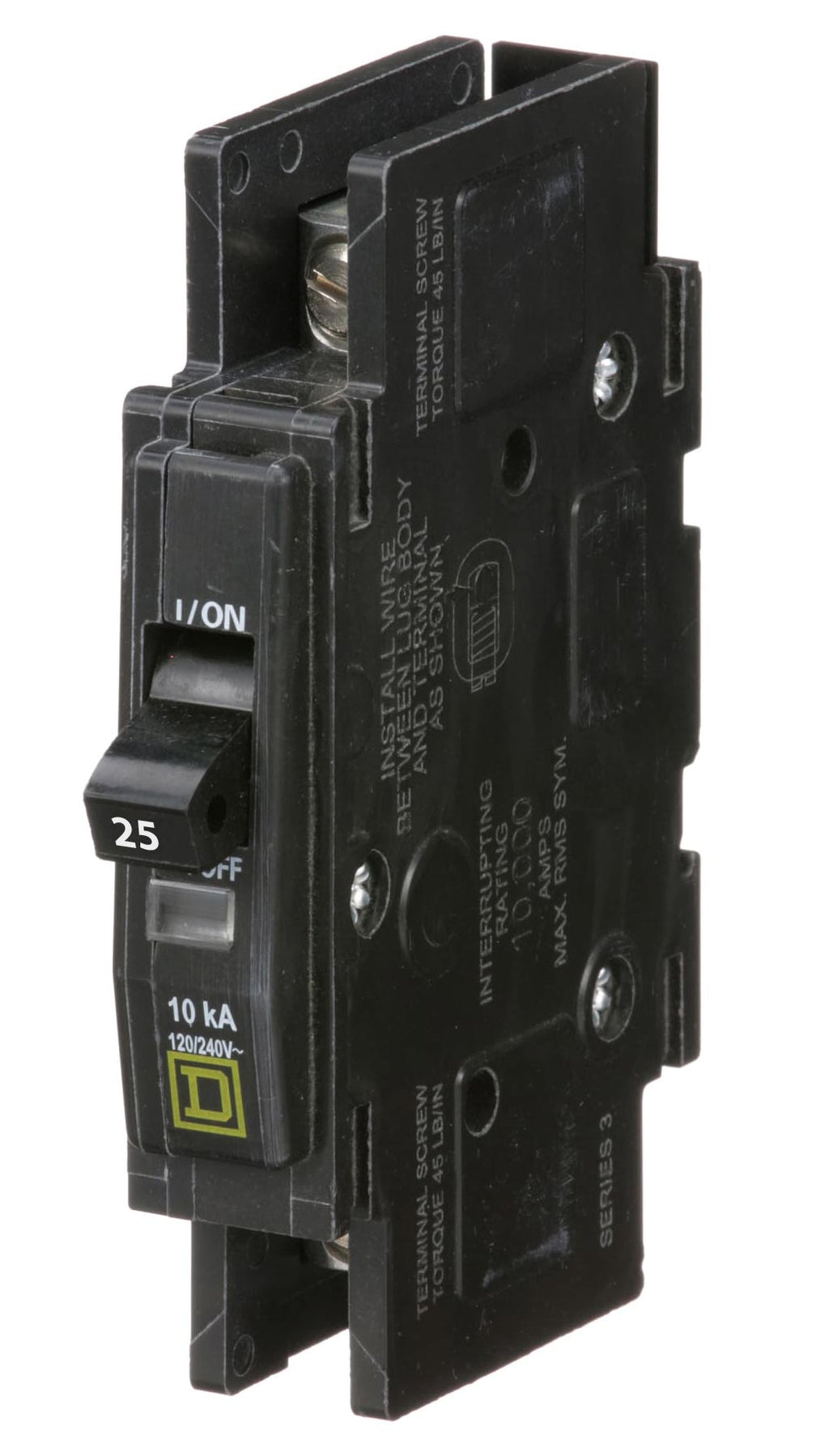

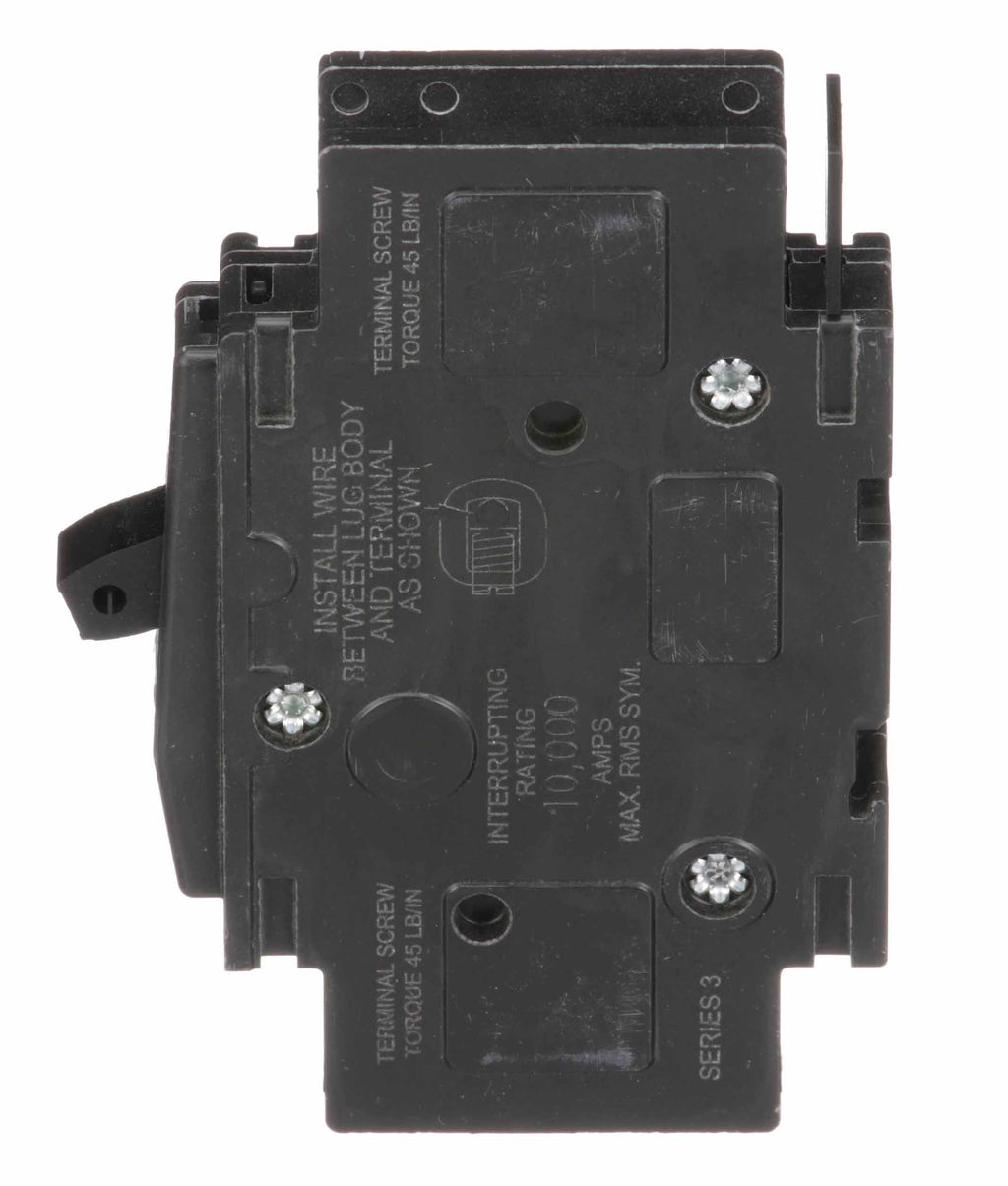

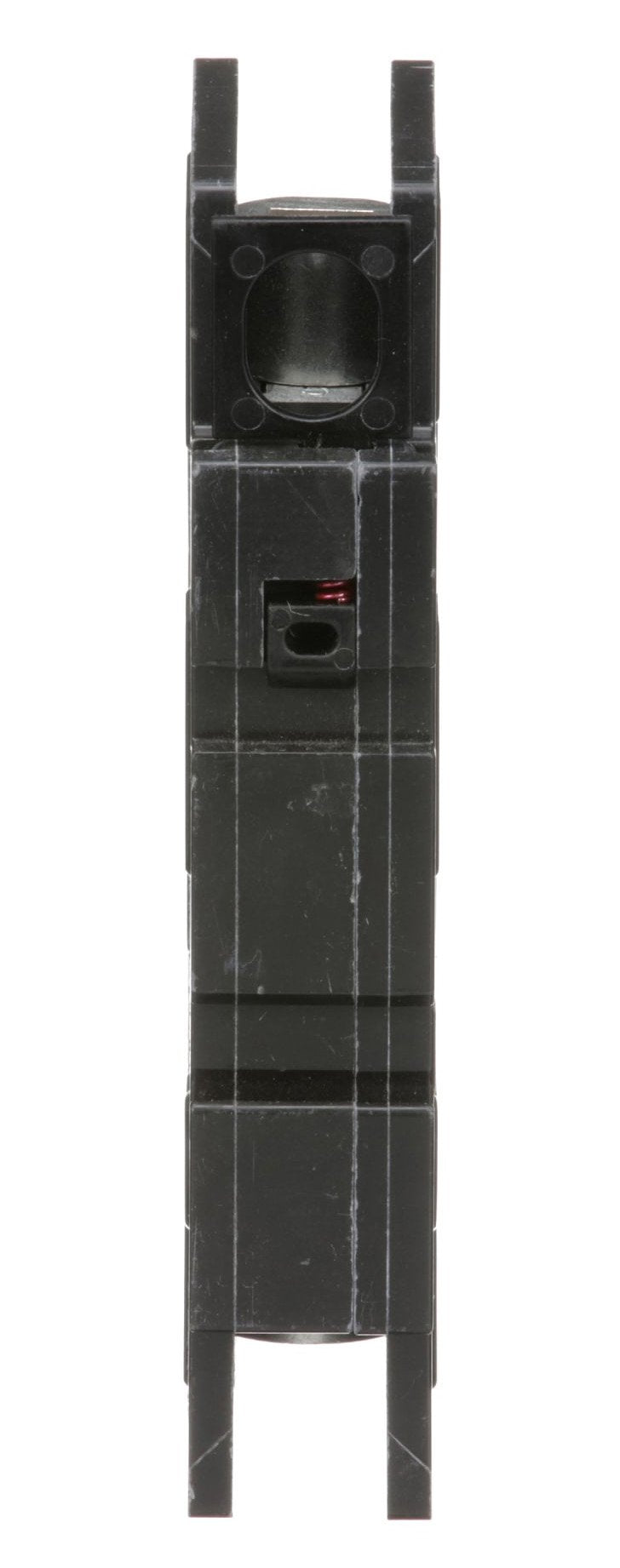

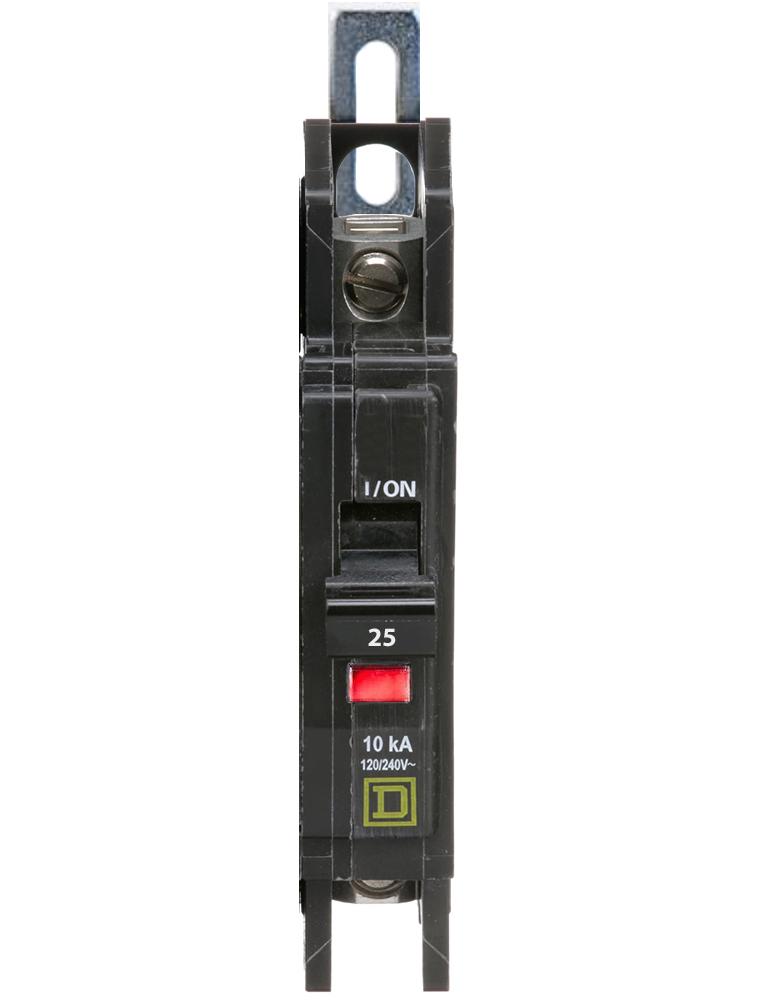

QOU125 is a Square D 1 pole, 25 amp, bolt-on miniature circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a 120/240VAC voltage rating, 10kA interrupt rating at 120VAC, and is HACR rated for HVAC equipment. It is part of the QOU series, known for durability and easy installation, and is suitable for use with 14 to 2 AWG copper or aluminum wire.

Key Specifications
• Part Number: QOU125
• Manufacturer: Square D
• Amperage: 25A
• Voltage: 120/240VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA @ 120VAC
• Series/Frame: QOU
• Trip Unit: Thermal Magnetic
• Certifications: HACR Rated
• Termination: Line and Load Side Lugs
• Wire Range: 14 to 2 AWG (Copper/Aluminum)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 120/240
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Unit Mount
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901489085
• GTIN : 00785901489085
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 0.75 in (19.05 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.35
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
