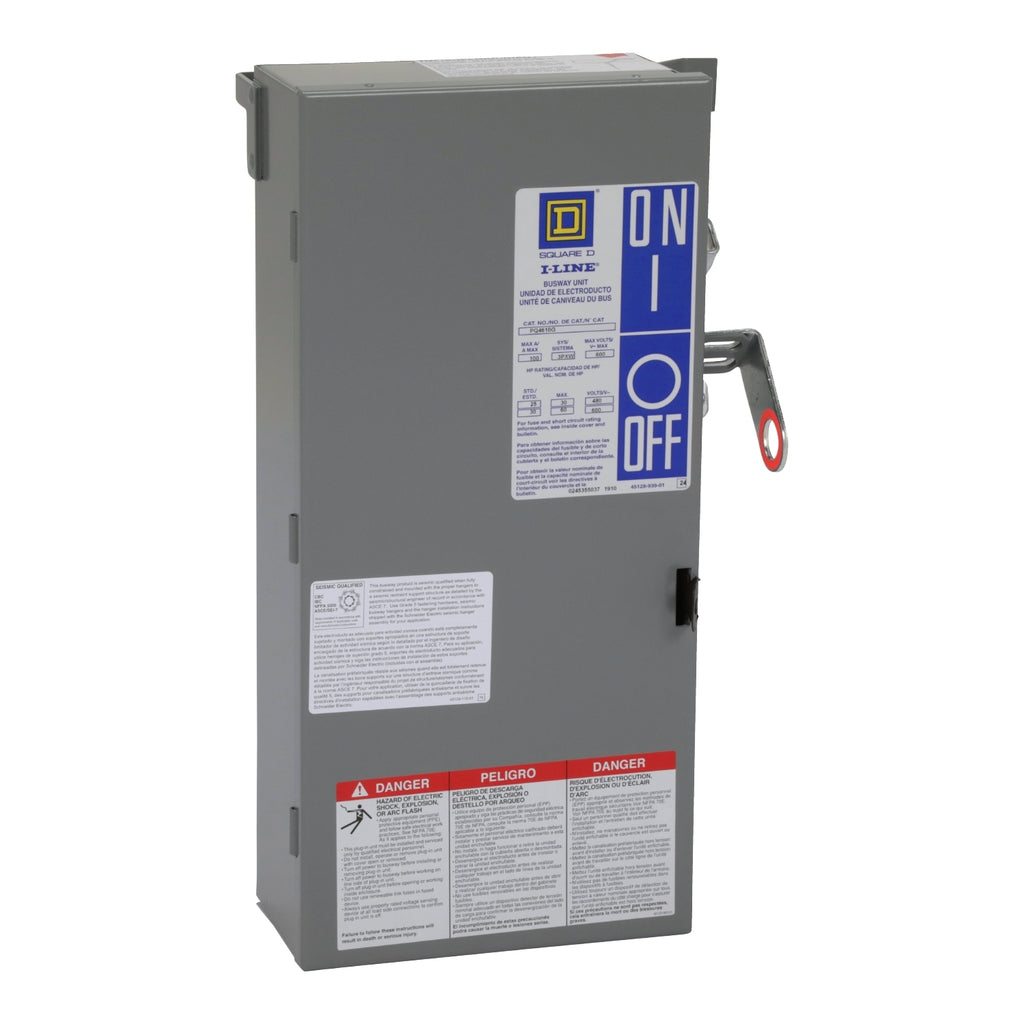

PQ4610GRA - Schneider Electric Fusible Bus Plug 100A 600V 4-Pole

PQ4610GRA

PQ4610GRA is a fusible plug-in bus plug unit designed for use with Schneider Electric I-Line busway systems in commercial and industrial electrical distribution applications.

This three-phase, four-pole fusible busway plug-in unit is rated at 100 amperes with a maximum voltage of 600V and features a standard interrupting rating of 200 kiloamperes at 480V. The unit utilizes sandwich-type construction to provide superior voltage drop characteristics and is compatible with I-Line I and I-Line II aluminum and copper busway systems. It accepts UL Class H, K, and R fuses and includes a ground conductor. The compact and totally enclosed design features a durable polyester powder coat paint finish with silver-plated copper conductor bars for maximum electrical efficiency and low surface-to-surface contact resistance.

• Amperage Rating: 100A
• Maximum Voltage: 600V
• Phase Configuration: Three-phase, four-pole with ground
• Interrupting Rating: 200kA at 480V
• Fuse Type: Class H, K, and R compatible
• Mounting Type: Plug-in fusible unit
• Busway Compatibility: I-Line I and I-Line II systems
• Construction: Sandwich-type with silver-plated copper conductors
• Certifications: UL and CSA certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ4610GRA
• Manufacturer : Schneider Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 100
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H,K,R
• Wire : 4

Product Data

• Weight : 35
