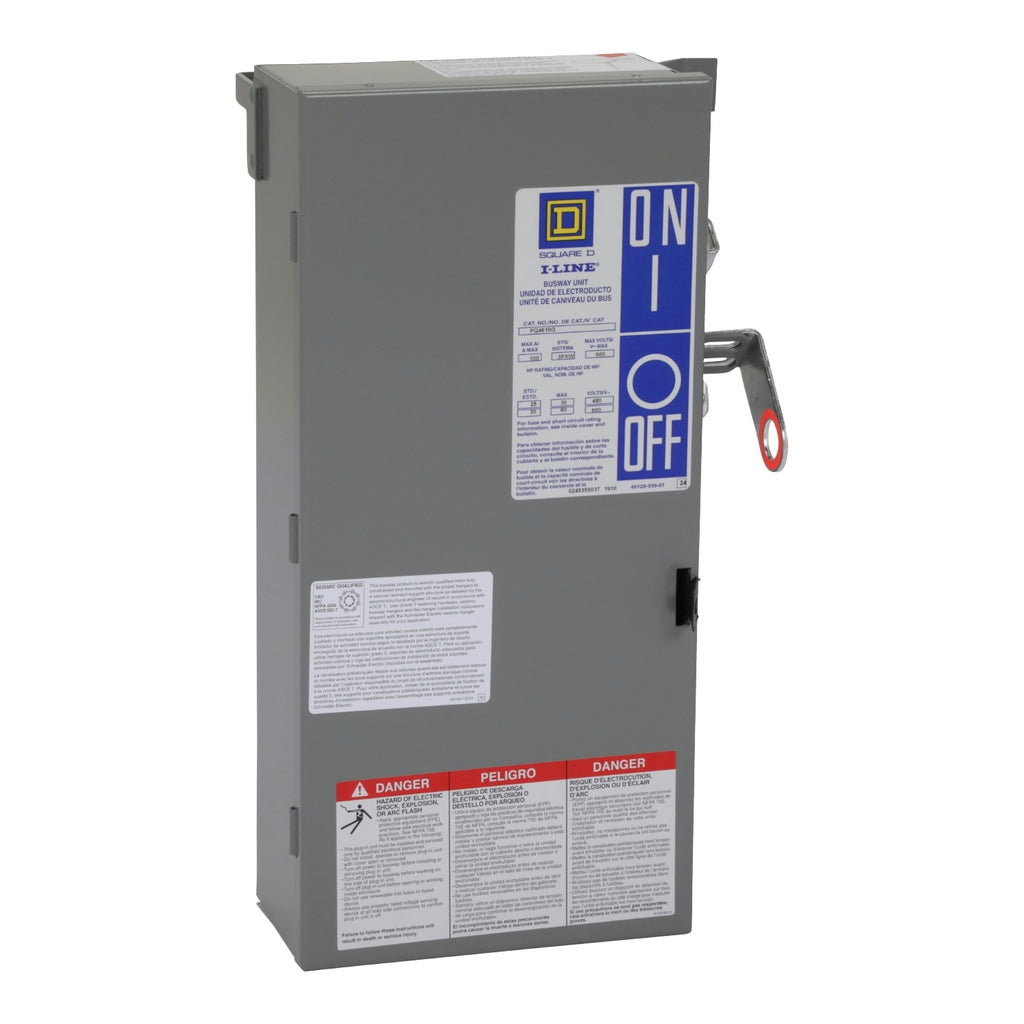

PQ4610G - Square D 100A 600V 4-Pole Fusible Bus Plug I-Line II

PQ4610

PQ4610G is a Square D fusible bus plug designed for 3-phase, 4-wire busway systems with a 100 ampere rating and 600 volt maximum voltage.

This I-Line II series plug-in unit features a 4-pole configuration with 3 fuses and ground, hook-swing mounting, and uses Class H fuses. It offers a 200 kA interrupt rating at 480V and is built with a compact, totally enclosed design for easy handling and installation. The unit is constructed with a durable polyester powder coat finish and plated contacts to ensure low resistance and reliable performance in industrial power distribution applications.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 V AC
• Poles: 4 (3 fuse + ground)
• Mounting Type: Hook-swing
• Interrupt Rating: 200 kA at 480 V
• Series/Frame: I-Line II, FS Frame
• Fuse Type: Class H Fusible
• Phase: 3-Phase
• Wiring: 4-wire configuration with integral ground bus
• Enclosure Type: NEMA 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ4610
• Manufacturer : Square D
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 100
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H,K,R
• Wire : 4

Product Data

• GTIN : 00785901309901
• Weight : 35
