Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description

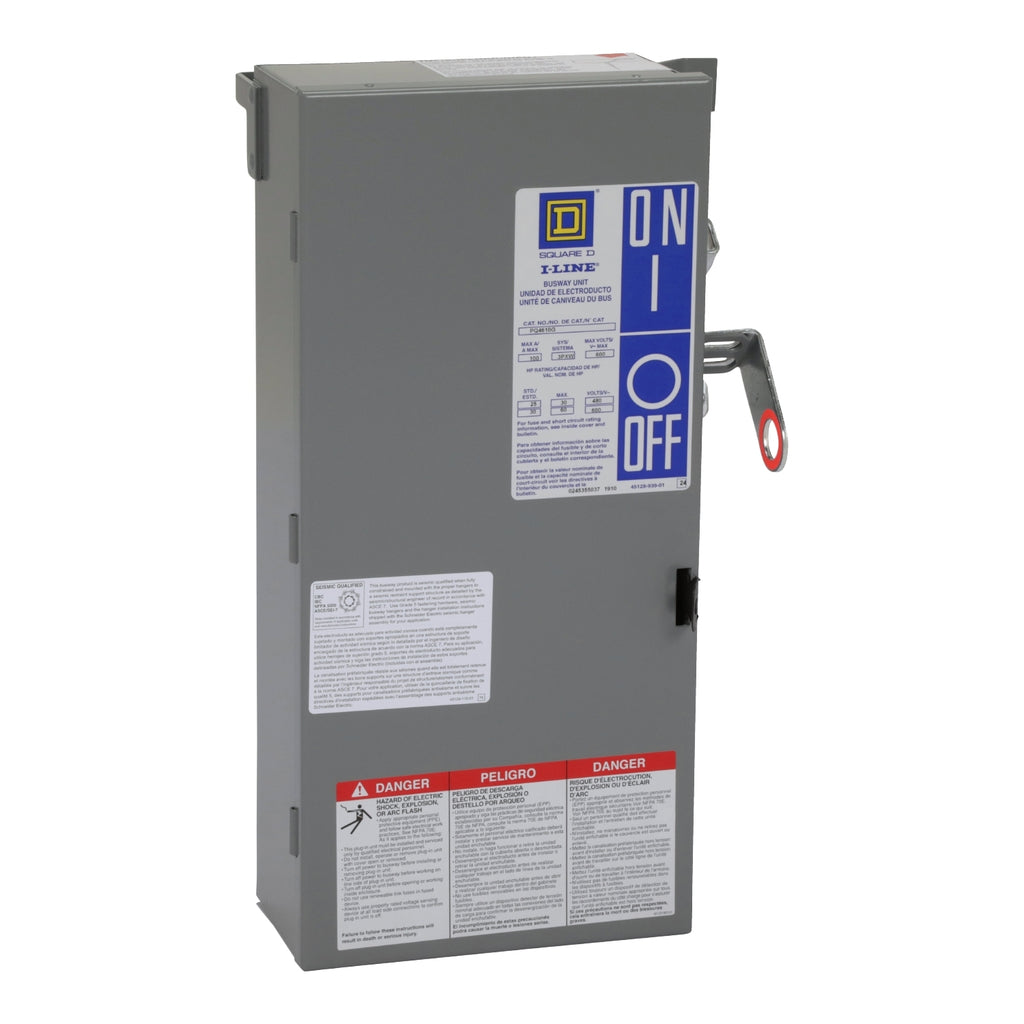

PQ4610GLP
PQ4610GLP is a fusible plug-in unit designed for I-Line style busway systems, rated at 100 amperes with a maximum voltage of 600V. This three-phase, four-pole unit features sandwich-type construction and accepts Class H, K, and R fuses for flexible circuit protection. The compact, totally enclosed design provides lightweight handling and quick installation with superior voltage drop characteristics. Key Specifications
- Amperage Rating: 100A
- Voltage Rating: 600V maximum
- Poles: 4-pole with neutral
- Phase: Three-phase
- Fuse Type: Class H, K, R compatible
- Interrupting Rating: 200kA at 480V
- Series: PQ I-Line
- Mounting: Plug-in fusible unit
- Construction: Sandwich-type with silver-plated copper conductors
- Certifications: UL and CSA certified
- Finish: Polyester powder coat paint
Specifications
- Part Number: PQ4610GLP
- Manufacturer : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,R
- Wire : 4
Product Data
- Weight : 35
