PQ4610GJA - Schneider Electric Fusible Bus Plug 100A 600V 4-Pole 200kA

PQ4610GJA

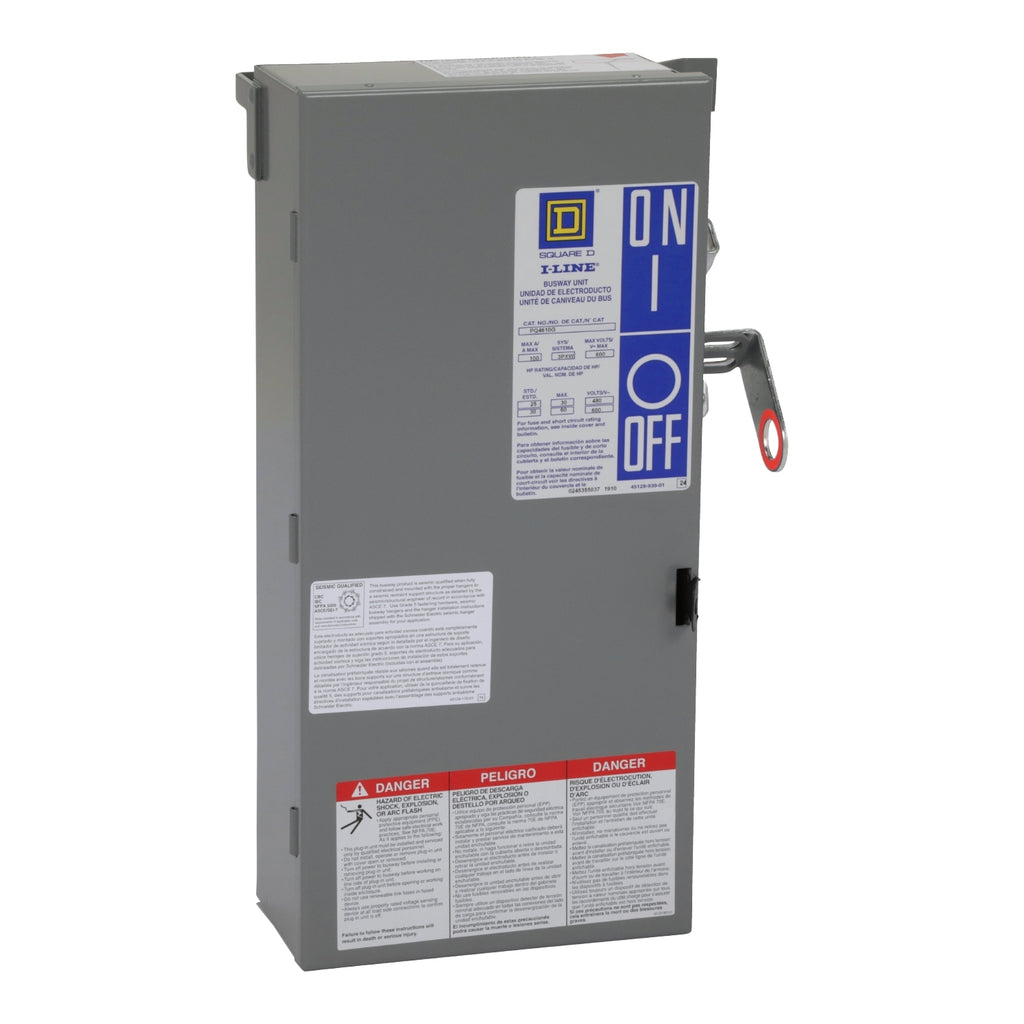

PQ4610GJA is a three-phase four-wire fusible bus plug rated for 100 amperes at 600 volts maximum, designed for use with Schneider Electric I-Line busway systems. This plug-in unit features a standard interrupting rating of 200 kiloamperes at 480 volts and accepts UL Class H, K, and R fuses for flexible circuit protection. The compact and totally enclosed design provides lightweight construction with easy installation, utilizing sandwich-type construction for superior voltage drop characteristics. The unit is plated to ensure low surface-to-surface contact resistance and finished with a durable polyester powder coat paint.

• Amperage Rating: 100 Amps
• Voltage Rating: 600V maximum
• Phase Configuration: 3-phase, 4-wire
• Poles: 4-pole
• Interrupting Rating: 200kA at 480V
• Fuse Type: Class H, K, and R compatible
• Mounting Type: Plug-in fusible unit
• Compatible Busway: Square D I-Line I and I-Line II systems
• Construction: Sandwich-type with polyester powder coat finish
• Certifications: UL and CSA certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ4610GJA
• Manufacturer : Schneider Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 100
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : J
• Wire : 4

Product Data

• Weight : 35
