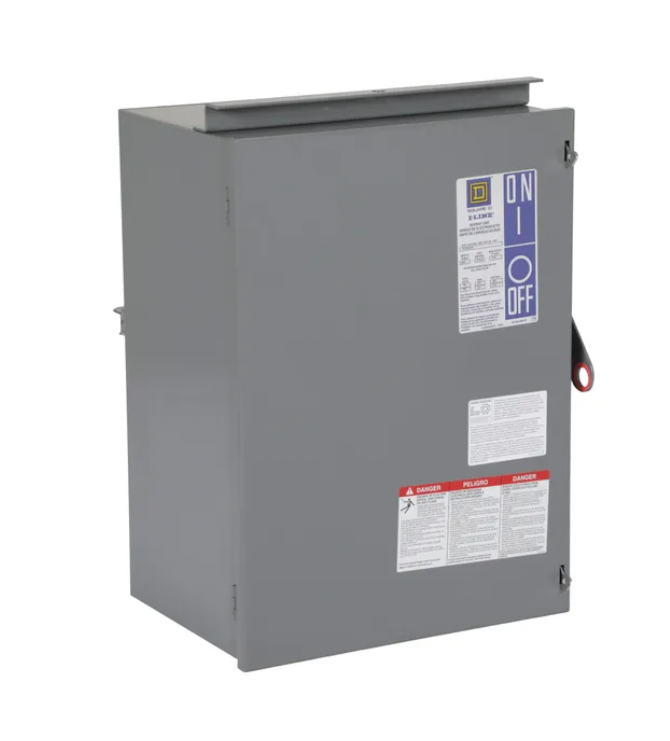

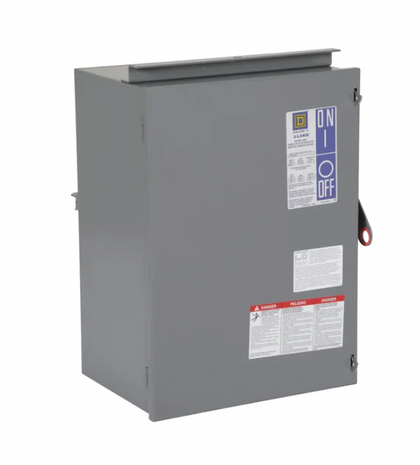

PQ3620GRA - Square D 200A 600V 3-Pole I-Line Fusible Bus Plug with R Fuse Reject and Copper Lugs

PQ3620GRA

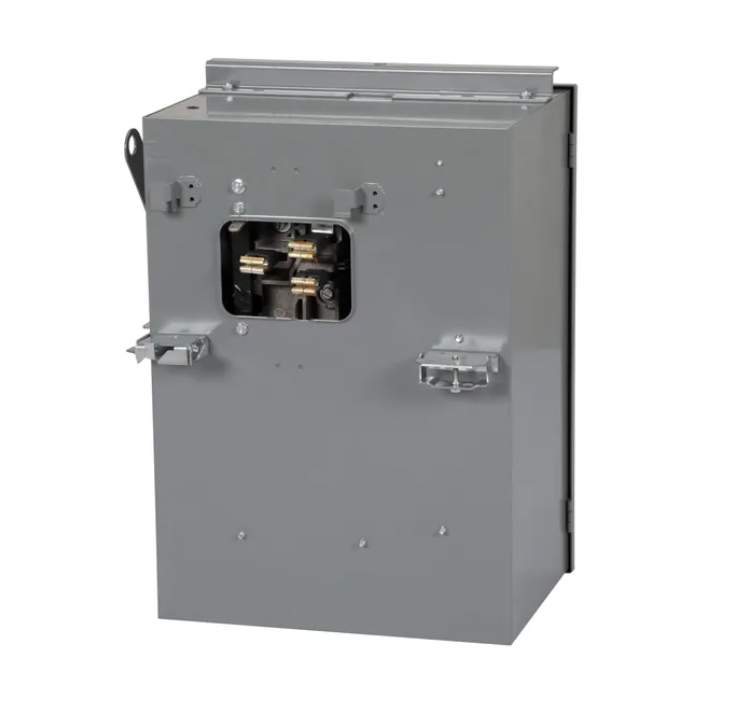

PQ3620GRA is a Square D fusible bus plug designed for I-Line busway systems, rated at 200 Amps and 600 Volts with 3 poles.This bus plug features a 3-pole, 3-wire configuration with an integral ground bus, compatible with aluminum and copper busway. It includes R fuse reject to prevent incorrect fuse installation and copper lugs for reliable connections. The unit supports AWG 6 to 300 kcmil for phase and neutral conductors and AWG 10 to 2/0 for ground. It is suitable for use in industrial and commercial power distribution applications.

Key Specifications
• Amperage: 200 Amps
• Voltage: 600 Volts
• Poles: 3
• Mounting Type: I-Line Busway Plug-in
• Fuse Type: Fusible with R Fuse Reject
• Conductor Lugs: Copper
• Wire Range: AWG 6-300 kcmil (phase/neutral), AWG 10-2/0 (ground)
• Integral Ground Bus Included
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PQ3620GRA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 200
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J
• Wire : 3



Product Data

• UPC : 785901008774
• GTIN : 00785901008774
• Country of Origin : Mexico
• Dimensions : 22.5 in (571 mm) x 17.3 in (440 mm) x 14.4 in (366 mm) (Height x Width x Depth)
• Weight : 73
• Certification : UL - CSA
