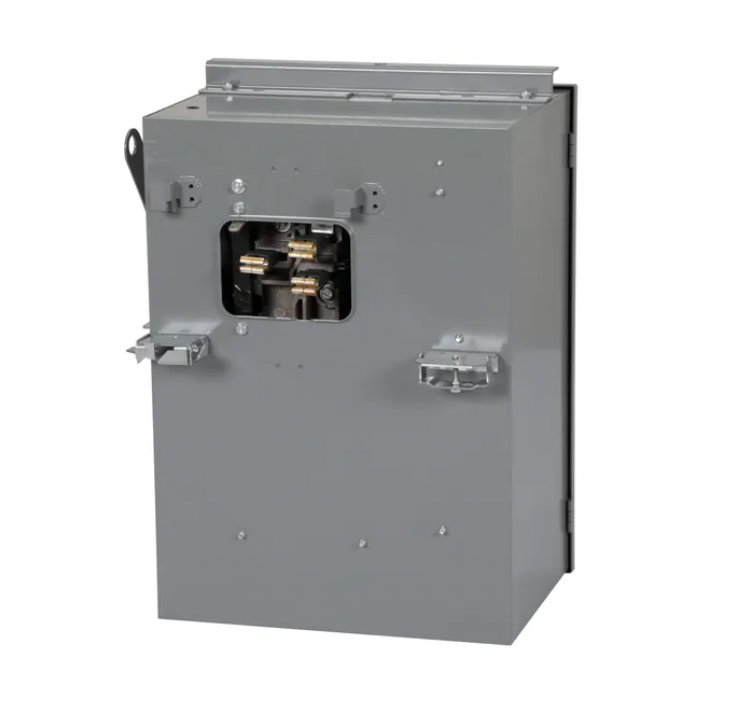

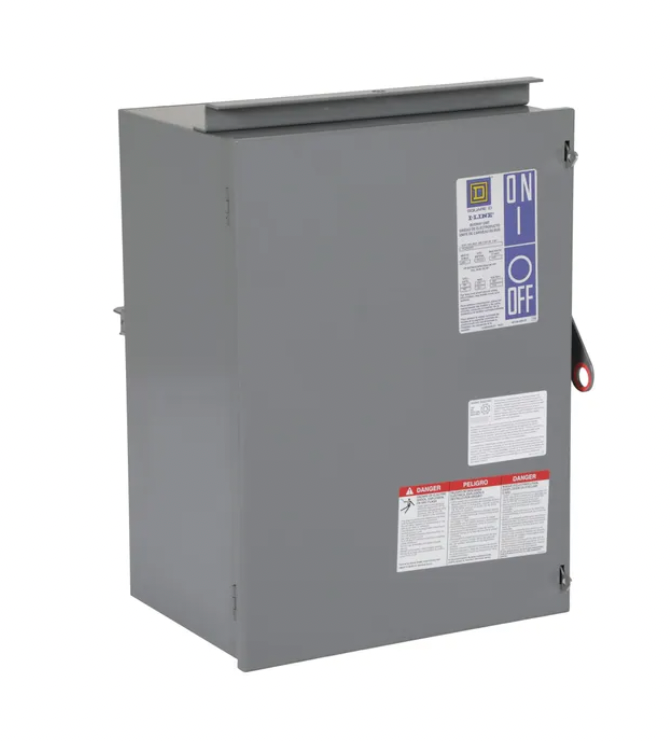

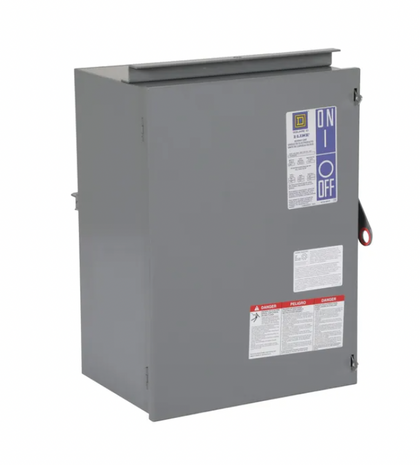

PQ3620GR - Schneider Electric 200A 600V 3-Pole Fusible I-Line Bus Plug

PQ3620GR

PQ3620GR is a Schneider Electric fusible bus plug designed for 3-phase, 3-wire busway systems, rated at 200 amps and 600 volts.This I-Line style plug-in unit features a 3-pole fusible design suitable for reliable power distribution in commercial and industrial applications. It supports a plug-in connection for easy installation and maintenance, with integral grounding for safety. The unit is compatible with H, K, and J fuse classes, providing interrupt ratings of 10 kA for H or K and 200 kA for J fuses.

Key Specifications
• Amperage: 200A
• Voltage: 600V AC
• Poles: 3
• Phase: 3-phase, 3-wire
• Mounting Type: Plug-in (I-Line busway)
• Fusible: Yes
• Interrupt Rating: 10 kA (H or K fuse), 200 kA (J fuse)
• Integral Ground Bus Included
• Compatible Fuse Classes: H, K, J
• Series/Frame: I-Line PQ Series
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PQ3620GR
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 200
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H,K,R
• Wire : 3



Product Data

• UPC : 785901409090
• GTIN : 00785901409090
• Country of Origin : United States
• Dimensions : 22.5 in (571 mm) x 17.3 in (440 mm) x 14.4 in (366 mm) (Height x Width x Depth)
• Weight : 71
• Certification : CSA C22.2 NO 27-UL LISTED FILE E22182
