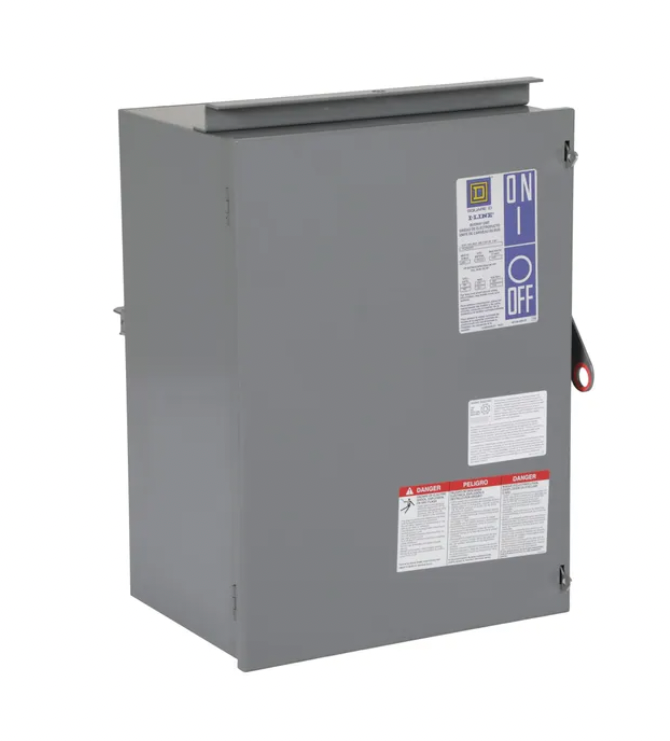

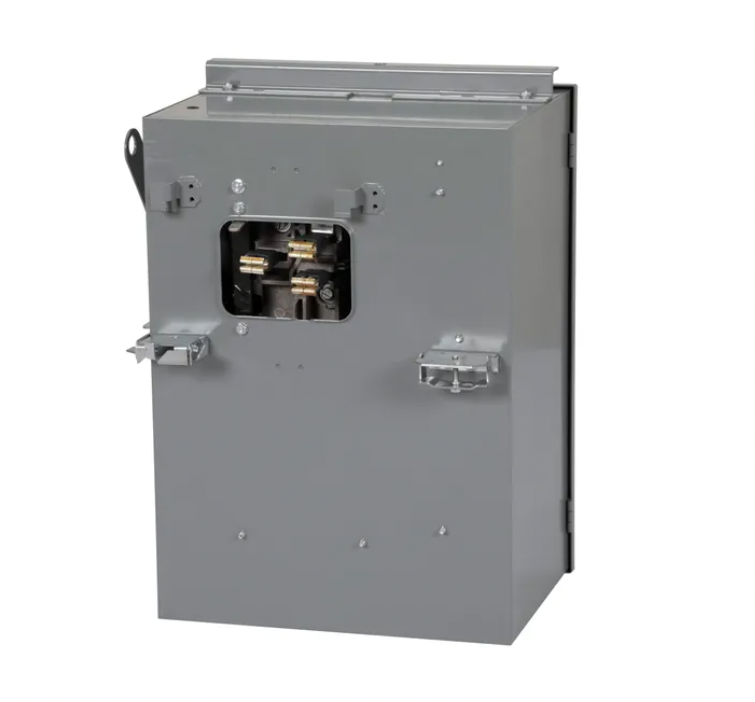

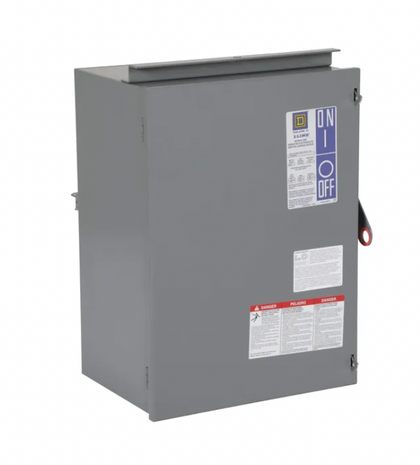

PQ3620GGS - Schneider Electric 200A 600V 3-Pole Fusible I-Line Busway Plug-In Unit with Door Gasket

PQ3620GGS

PQ3620GGS is a Schneider Electric fusible plug-in unit designed for I-Line busway systems, rated at 200 Amps and 600 Volts with 3 poles and an integral ground bus.

This plug-in unit features a fusible design compatible with H, K, J, or R fuse types and includes a door gasket for enhanced protection. It supports a 3-wire configuration with an integral ground bus and is rated for a maximum operational voltage of 600 VAC. The unit is designed for plug-in mounting, facilitating quick installation and maintenance in busway systems. It offers interrupt ratings of 10 kA for H or K fuses and 200 kA for R or J fuses, ensuring reliable circuit protection. The PQ3620GGS accepts conductor sizes from AWG 6 to 300 kcmil for phase and neutral, and AWG 10 to AWG 2/0 for ground conductors.

• Amperage: 200A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Plug-in
• Fuse Types: H, K, J, R
• Interrupt Rating: 10 kA (H/K), 200 kA (R/J)
• Conductor Range: AWG 6–300 kcmil (phase/neutral), AWG 10–2/0 (ground)
• Integral Ground Bus Included
• Door Gasket for Environmental Protection
• Series: I-Line Busway

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ3620GGS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 200
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J, R
• Wire : 3

Product Data

• Dimensions : 22.5 in (571 mm) x 16.2 in (411 mm) x 14.4 in (366 mm) (Height x Width x Depth)
• Weight : 67.999
• Certification : CSA C22.2 No 27 - UL listed file E22182
