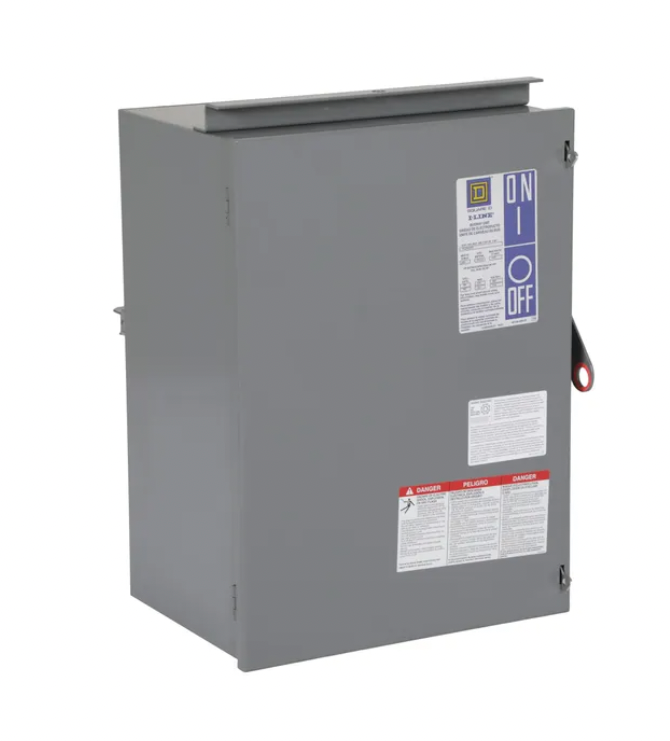

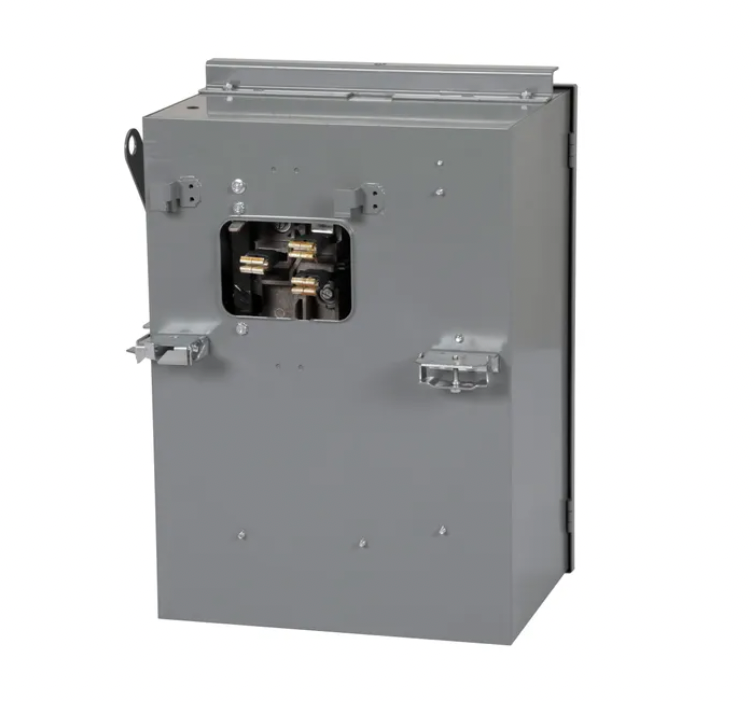

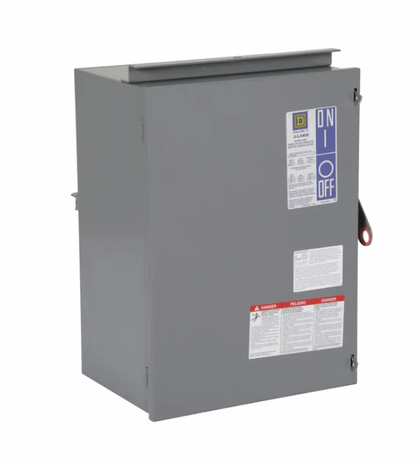

PQ3620GGSC - Schneider Electric 200A 600V Fusible Bus Plug 3-Pole I-Line

PQ3620GGSC

PQ3620GGSC is a three-phase fusible bus plug designed for use with Schneider Electric I-Line busway systems. This unit provides reliable circuit protection and easy plug-in installation for industrial and commercial power distribution applications.Engineered for durability and safety, the PQ3620GGSC features a 200A current rating, 600V maximum voltage, and a 3-pole configuration. It is compatible with I-Line style busway systems and supports H, K, J, or R type fuses for flexible protection options. The plug-in mounting design allows for quick and secure installation without the need for additional tools or complex wiring.

• Part Number: PQ3620GGSC
• Manufacturer: Schneider Electric
• Series: I-Line
• Amperage: 200A
• Voltage: 600V
• Phase: 3
• Poles: 3
• Mounting Type: Plug-in
• Fuse Compatibility: H, K, J, R
• Application: Busway Circuit Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ3620GGSC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 200
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H,K,R
• Wire : 3

Product Data

• UPC : 785901458166
• GTIN : 00785901458166
• Country of Origin : Mexico
• Dimensions : 22.5 in (571 mm) x 16.2 in (411 mm) x 14.4 in (366 mm) (Height x Width x Depth)
• Weight : 4.54
