Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description
PQ3620GE

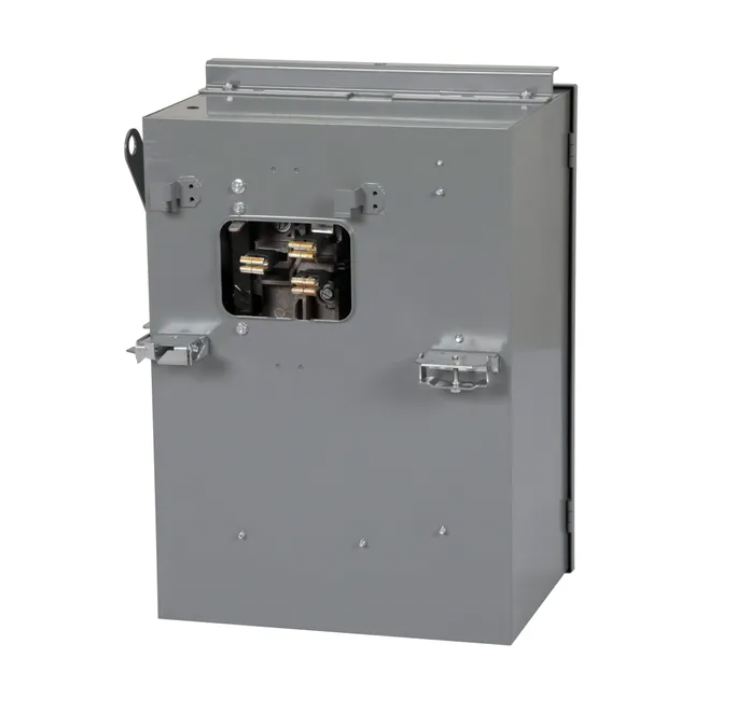

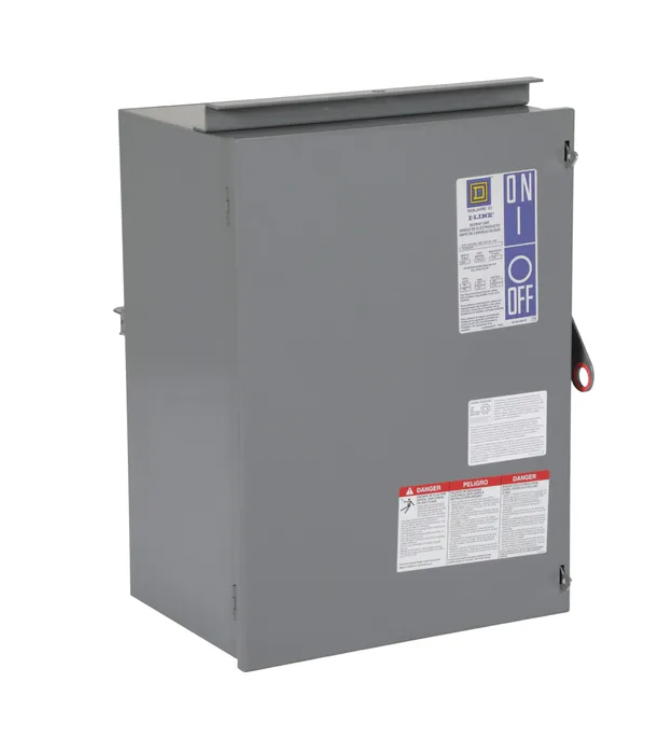

PQ3620GE is a Schneider Electric fusible bus plug designed for 3-phase, 3-wire busway systems with a 200 Ampere rating and 600 Volt maximum voltage.
This plug-in unit features a 3-pole configuration with grounding and is part of the I-Line series, providing a reliable fusible connection for power distribution. It accepts Class H, J, K, or R fuses and uses a plug-in connection for easy installation. The PQ3620GE is switch-operated and designed to reduce installation time with mounting hook alignment to the busway opening.
- Key Specifications
- Amperage: 200 Amps
- Voltage: 600 Volts AC
- Poles: 3-Pole with Ground
- Mounting Type: Plug-in connection
- Fuse Type: Accepts Class H, J, K, or R fuses
- Series/Frame: I-Line Busway
- Switch Operated Fusible Plug
- Phase: 3-Phase, 3-Wire
- Part Number: PQ3620GE
- Manufacturer : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 200
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,R
- Wire : 3
- Weight : 65
