Description
PQ3606J

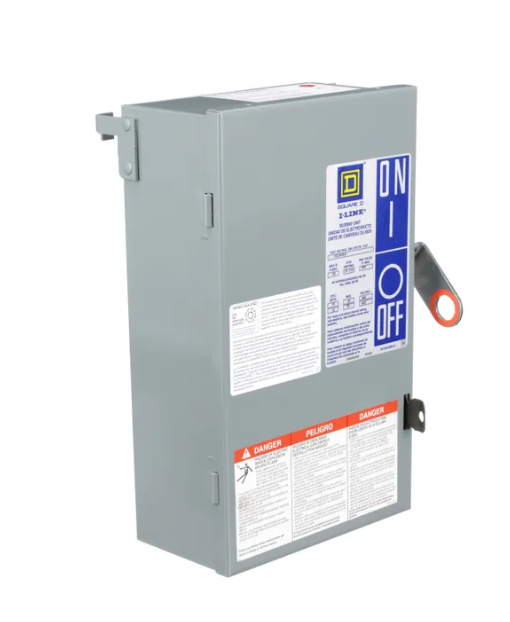

PQ3606J is a Square D fusible bus plug designed for use with I-Line busway systems, rated for 60 amps and 600 volts with 3 poles and 3 wires. PQ3606J provides reliable overcurrent protection with fusible design, compatible with Square D I-Line plug-in bus duct systems. It supports three-phase power distribution and includes grounding provisions for safety.
- Amperage: 60 Amps
- Voltage: 600 Volts
- Poles: 3
- Wires: 3
- Type: Fusible Bus Plug
- Series: I-Line
- Phase: 3
- Mounting: Plug-in for busway
Specifications
- Part Number: PQ3606J
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Wire : 3
Product Data
- Weight : 30
