Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description
PQ3603GR

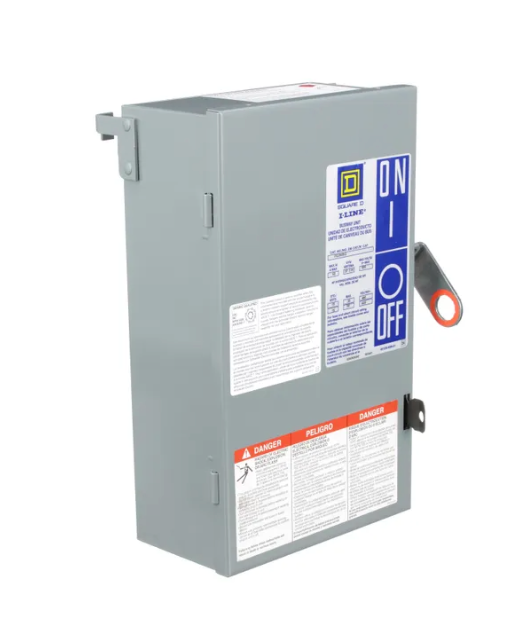

PQ3603GR is a Square D fusible bus plug rated for 30 amperes at 600 volts, designed for use with I-Line Style I and II busway systems. This 3-phase, 3-wire plug-in unit provides reliable overcurrent protection through R-class fuse rejection and is suitable for both aluminum and copper busway configurations. The unit features mechanical lugs for secure connections and includes fuse rejection clips as standard equipment. Key Specifications
- Manufacturer: Square D / Schneider Electric
- Catalog Number: PQ3603GR
- Amperage Rating: 30 Amps
- Voltage Rating: 600 Volts
- Phase: 3-Phase
- Wire Configuration: 3-Wire
- Bus Plug Type: Fusible
- Series: I-Line (Style I & II compatible)
- Fuse Class: R-Class with rejection clips
- Mounting: Plug-in
- Standards: UL 857
- Dimensions: 14.9 in Height x 10.5 in Width
Specifications
- Part Number: PQ3603GR
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- UPC : 785901409069
- GTIN : 00785901409069
- Country of Origin : Mexico
- Dimensions : 14.9 in (379 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
- Weight : 15
