Description
PQ3603GJA

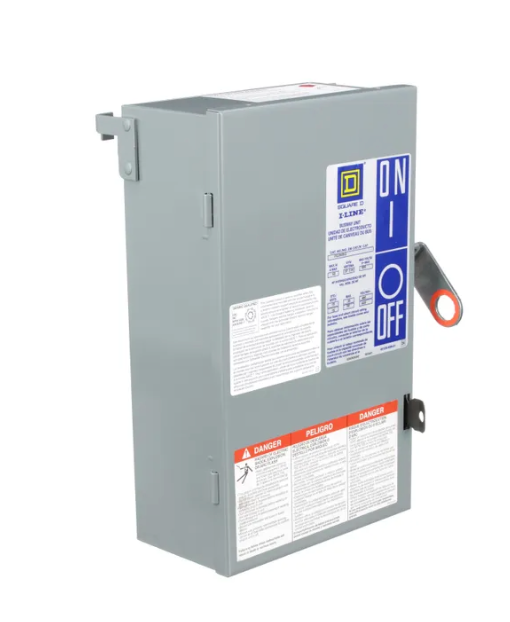

PQ3603GJA is a 3-phase, 3-wire fusible bus plug rated for 30 amperes at 600 volts, designed for use with Square D I-Line busway systems. This plug-in unit provides reliable overcurrent protection and is suitable for both aluminum and copper busway installations. The fusible design accepts H, K, J, or R class fuses for flexible protection coordination. Key Specifications
- Amperage Rating: 30A
- Voltage Rating: 600V
- Phase: 3-phase
- Wire Configuration: 3-wire
- Fuse Type: Fusible (H, K, J, or R class)
- Series: I-Line (Style I and II compatible)
- Connection Type: Plug-in
- Mounting: Mechanical lugs standard
- Ground Tab: Yes
- Certifications: UL Listed and CSA Certified
Specifications
- Part Number: PQ3603GJA
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Wire : 3
Product Data
- Weight : 30
