- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description
PQ3603GGS

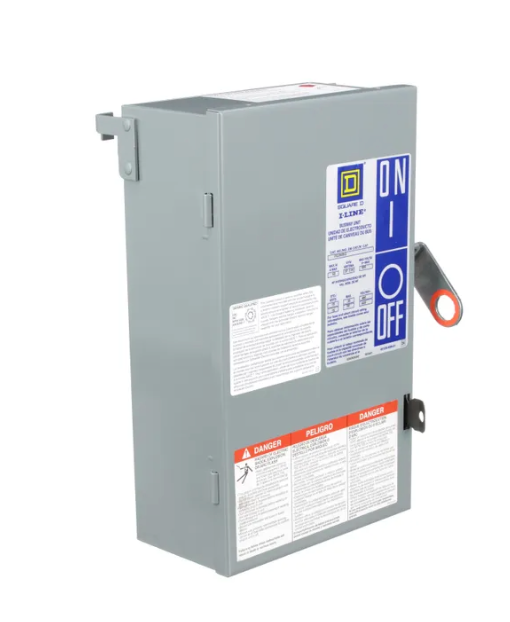

PQ3603GGS is a 30A, 600V, 3-pole fusible bus plug designed for use with Square D I-Line busway systems, providing reliable overcurrent protection for industrial power distribution applications. This fusible bus plug features a plug-in mounting design for easy installation and removal, and is compatible with H, K, J, and R class fuses. It is suitable for both aluminum and copper I-Line busway systems, and includes a ground connection for added safety. The unit is UL Listed and CSA Certified for use in North American installations.
- Part Number: PQ3603GGS
- Manufacturer: Square D
- Amperage: 30A
- Voltage: 600V
- Poles: 3
- Mounting Type: Plug-In
- Series: I-Line
- Fuse Compatibility: H, K, J, R
- Ground: Yes
- Approvals: UL Listed, CSA Certified
- Application: Busway Plug-In Unit
- Interrupt Rating: Not specified
- Trip Unit: Fusible
Specifications
- Part Number: PQ3603GGS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H, K, J, R
- Wire : 3
Product Data
- Dimensions : 14.9 in (379 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
- Weight : 14
- Certification : CSA C22.2 No 27 - UL listed file E22182
