Description
PQ3603J

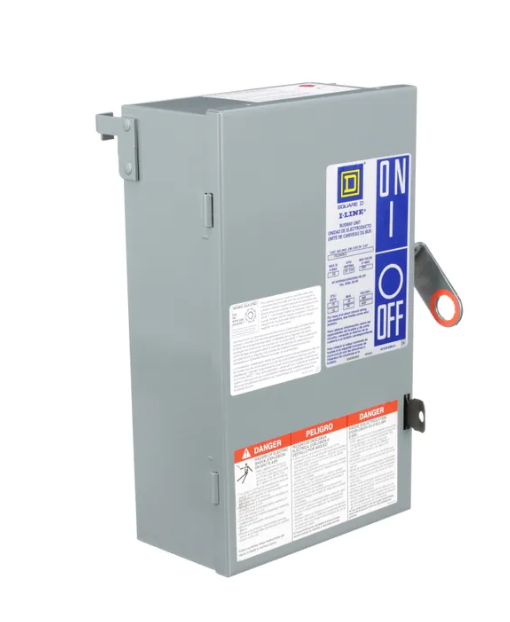

PQ3603J is a fusible bus plug designed for use with Square D I-Line busway systems, providing reliable circuit protection in industrial and commercial applications.This Square D PQ3603J bus plug is rated for 30 amps and 600 volts, featuring a 3-pole, 3-wire configuration. It is compatible with I-Line I and I-Line II bus duct systems and is designed for plug-in mounting, making installation quick and efficient. The unit is fusible, supporting UL class H, K, J, and R fuses for flexible overcurrent protection.
- Part Number: PQ3603J
- Manufacturer: Square D
- Amperage: 30A
- Voltage: 600V
- Poles: 3
- Wire: 3-wire
- Mounting Type: Plug-in
- Series: I-Line
- Fuse Compatibility: UL Class H, K, J, R
- Busway Compatibility: I-Line I and I-Line II
Specifications
- Part Number: PQ3603J
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Wire : 3
Product Data
- Weight : 30
