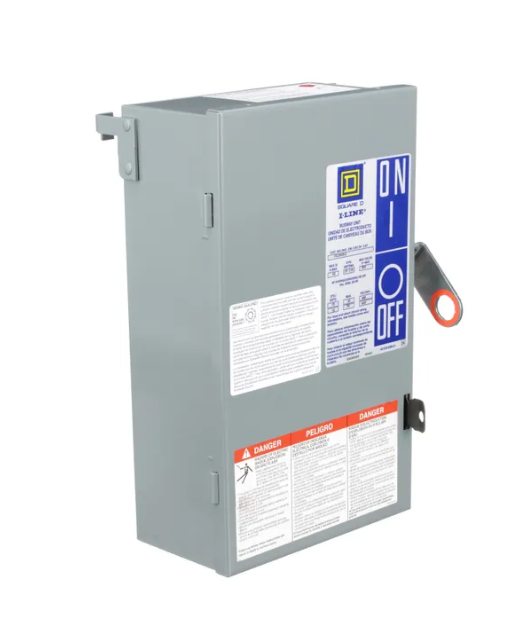

PQ3603GRA - Square D 30A 600V 3-Phase Fusible Bus Plug I-Line Series

PQ3603GRA

PQ3603GRA is a 30 amp, 600 volt, 3-phase fusible bus plug from Square D's I-Line series designed for plug-in bus duct systems.

This bus plug supports H, K, J, and R class fuses and provides an interrupting rating of 200kA at 480V. It features a 3-wire configuration with integral grounding and mechanical lugs for secure connections. The PQ3603GRA is compatible with Square D I-Line Style I and II busway systems and offers reliable overcurrent protection with fusible elements.

• Amperage: 30 Amps
• Voltage: 600 Volts
• Phases: 3-Phase
• Wire Configuration: 3-Wire with Ground
• Fuse Types: H, K, J, R Class
• Interrupt Rating: 200kA at 480V
• Series: I-Line
• Mounting Type: Plug-In Busway
• Ground: Integral Ground Tab

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ3603GRA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 30
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J
• Wire : 3

Product Data

• UPC : 785901087236
• GTIN : 00785901087236
• Country of Origin : Mexico
• Dimensions : 14.9 in (379 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
• Weight : 13.32
• Certification : CSA C22.2 NO 27-UL LISTED FILE E22182
