PGL36120U43A - Square D 1200A 600V 3 Pole Feed-Thru Circuit Breaker 35kA@480V

PGL36120U43A

PGL36120U43A is a Square D 3 pole, 1200 amp, 600 Volt feed-thru circuit breaker with a 35kA interrupt rating at 480V. It is designed for high-performance electrical protection in industrial and commercial applications.This molded case circuit breaker features solid-state protection and is part of the PowerPact P series. It supports a 3-pole configuration with a feed-thru mounting type, providing reliable interruption capacity and operational safety. The breaker is UL listed and meets industry certification standards.

• Amperage: 1200A
• Voltage Rating: 600V AC
• Poles: 3
• Interrupt Rating: 35kA at 480V
• Mounting Type: Feed-Thru
• Series/Frame: PowerPact P
• Trip Unit: Solid State
• Certifications: UL Listed
• Manufacturer: Square D
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL1200P25K

Specifications

• Part Number: PGL36120U43A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 606486285261
• GTIN : 03606490000000
• Country of Origin : United States

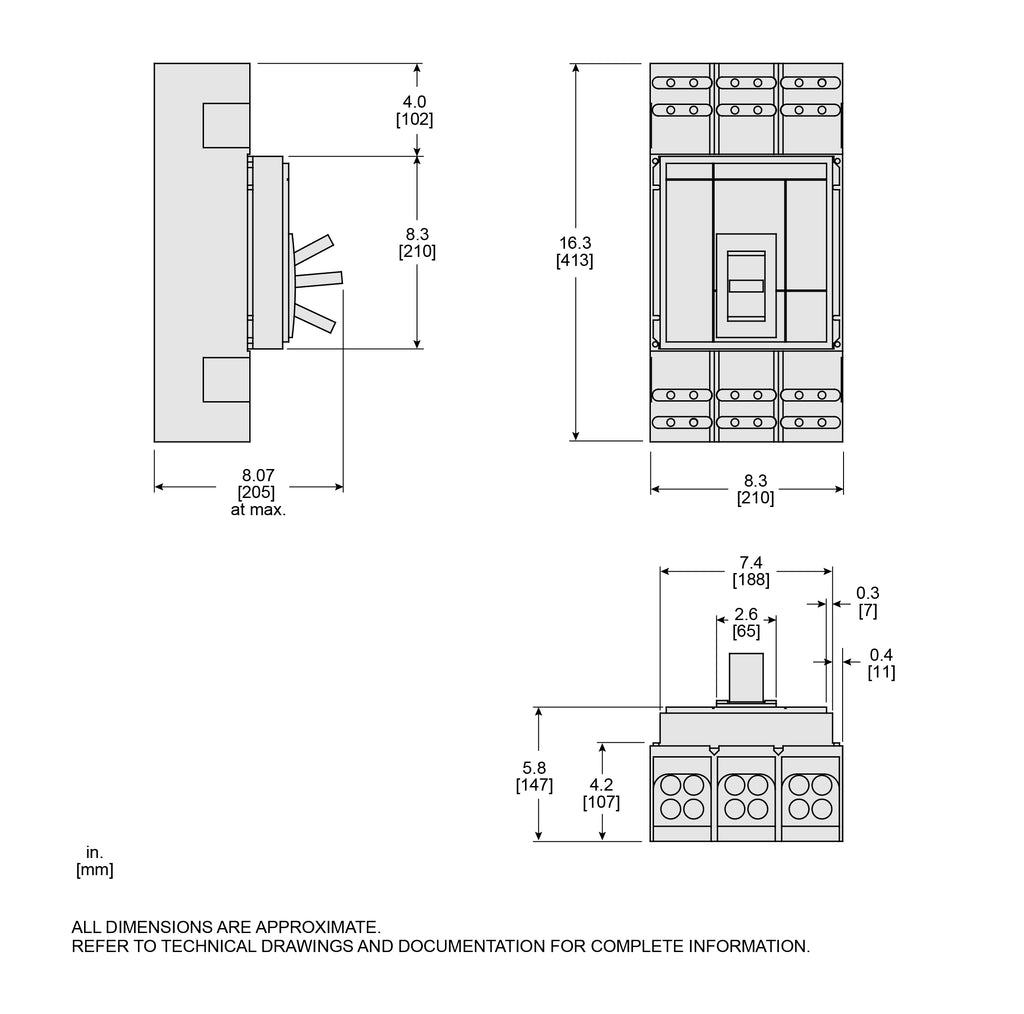

• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
