PGL36120 - Square D PowerPact P Molded Case Circuit Breaker 1200A 600V 3 Pole ET1.0I Trip

PGL36120

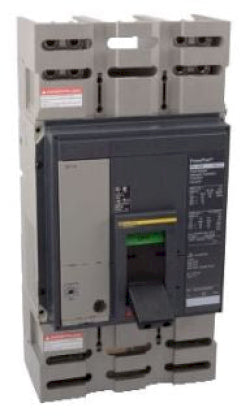

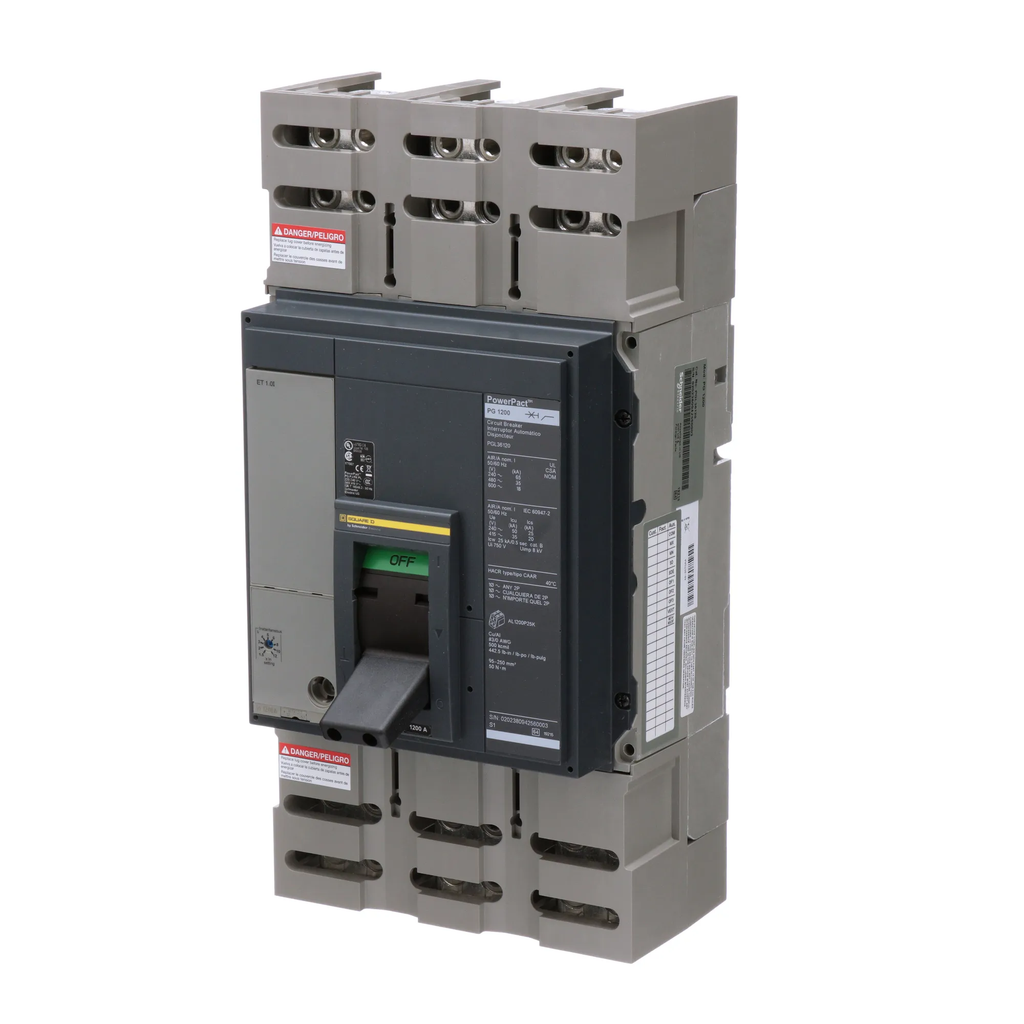

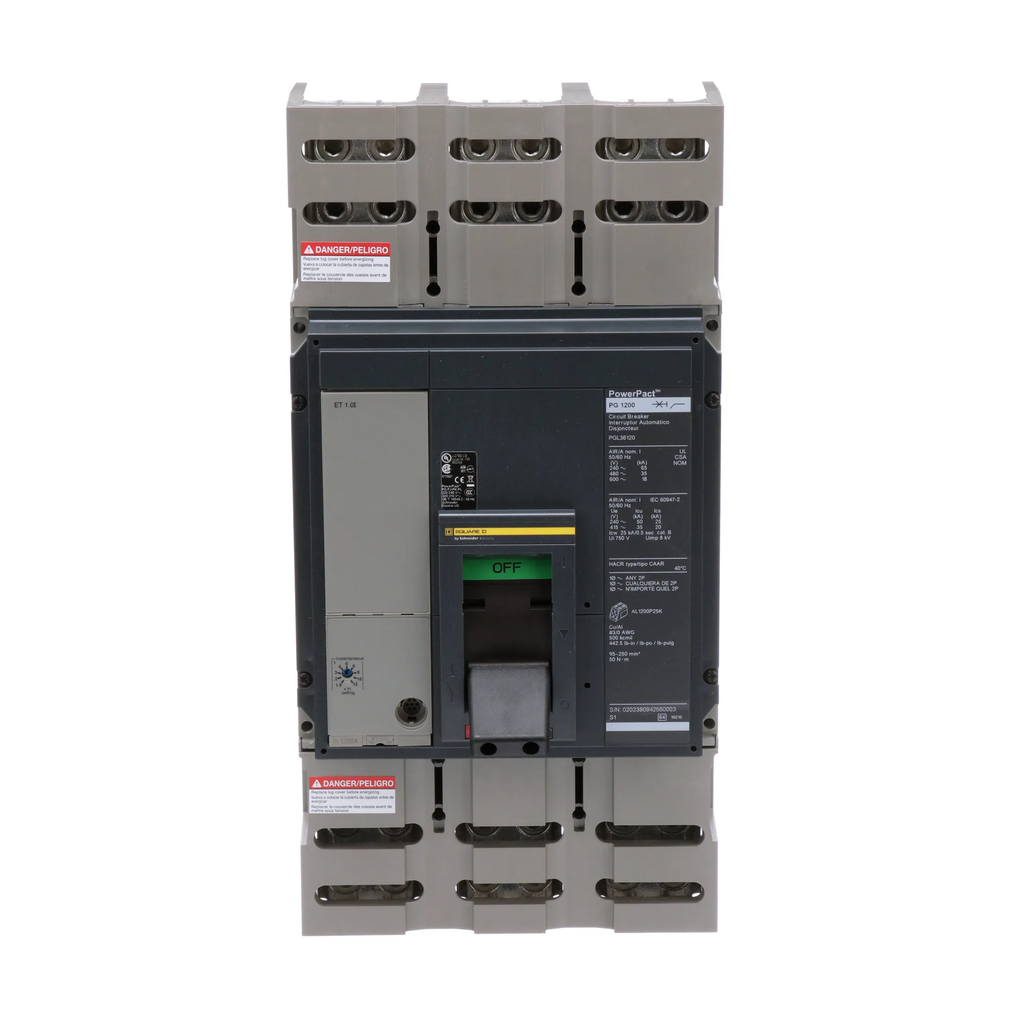

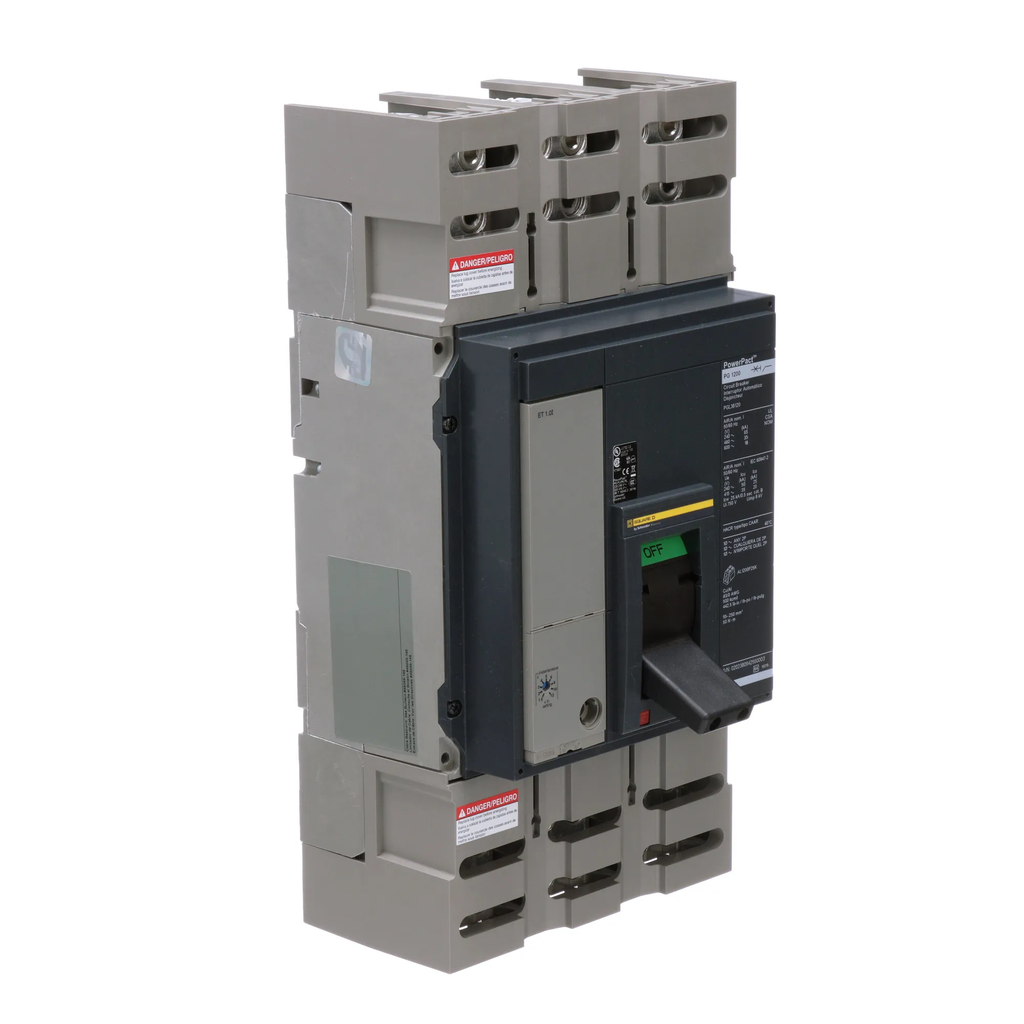

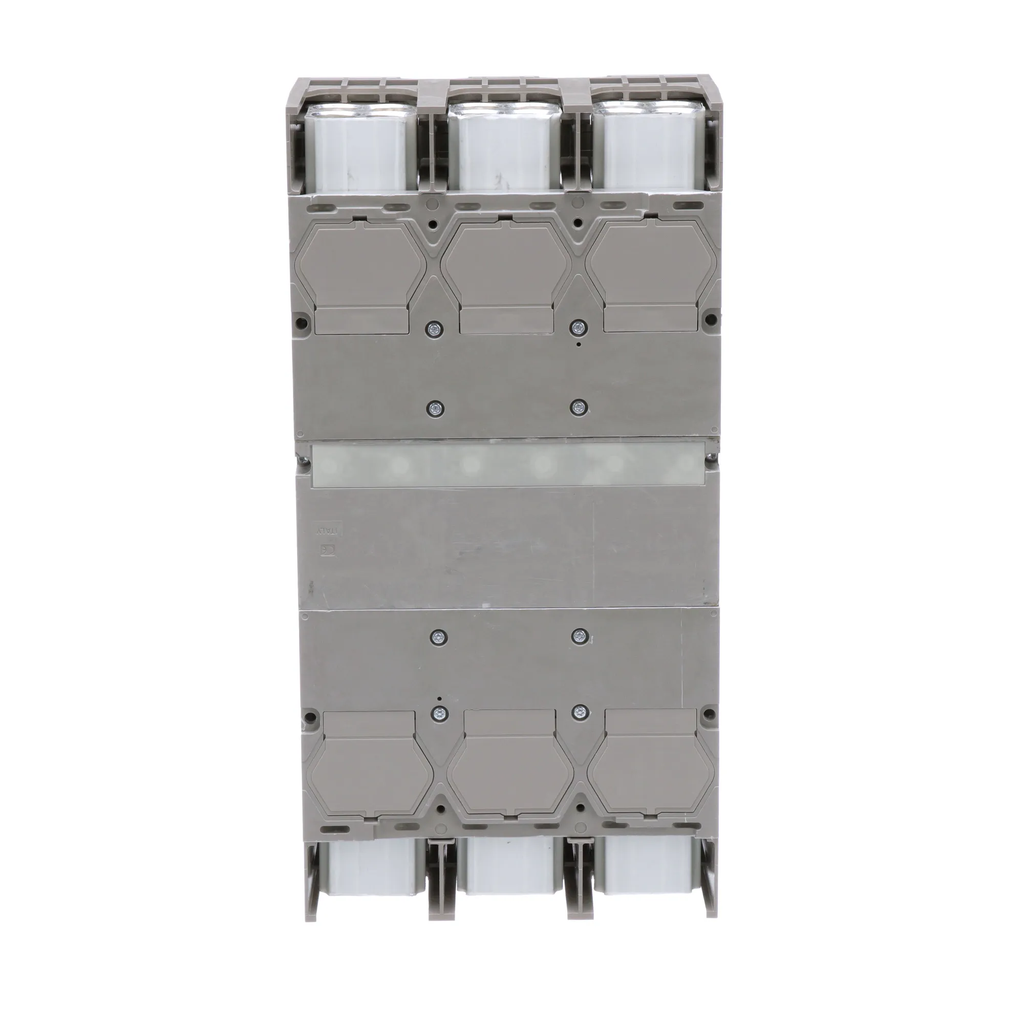

PGL36120 is a Square D PowerPact P molded case circuit breaker designed for reliable power distribution and protection.This 3 pole circuit breaker features a 1200 Amp rating and 600 Volt AC maximum voltage. It includes an electronic basic ET 1.0I trip unit and line and load lugs suitable for AWG 3/0 to 500 kcmil aluminum or copper conductors. The breaker has a high interrupt rating of 65 kA at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC, ensuring robust fault current interruption. It is UL 489 listed and CSA NMX and IEC certified for worldwide applications. The PowerPact P frame offers common mounting holes and accessories for easy panel integration.

Key Specifications
• Amperage: 1200 Amps
• Voltage Rating: 600 VAC max
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 65 kA @ 240V, 35 kA @ 480V, 18 kA @ 600V
• Series/Frame: PowerPact P
• Trip Unit: Electronic Basic ET 1.0I
• Line and Load Lugs: AWG 3/0 to 500 kcmil Aluminum/Copper
• Certifications: UL 489, CSA NMX, IEC
• Dimensions: 16.16" H x 8.05" D x 8.27" W
• Weight: Approx. 32 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Lugs included AL1200P25K




Specifications

• Part Number: PGL36120
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State



Product Data

• UPC : 785901446453
• GTIN : 00785901446453
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 37.58
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
