Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
S143A

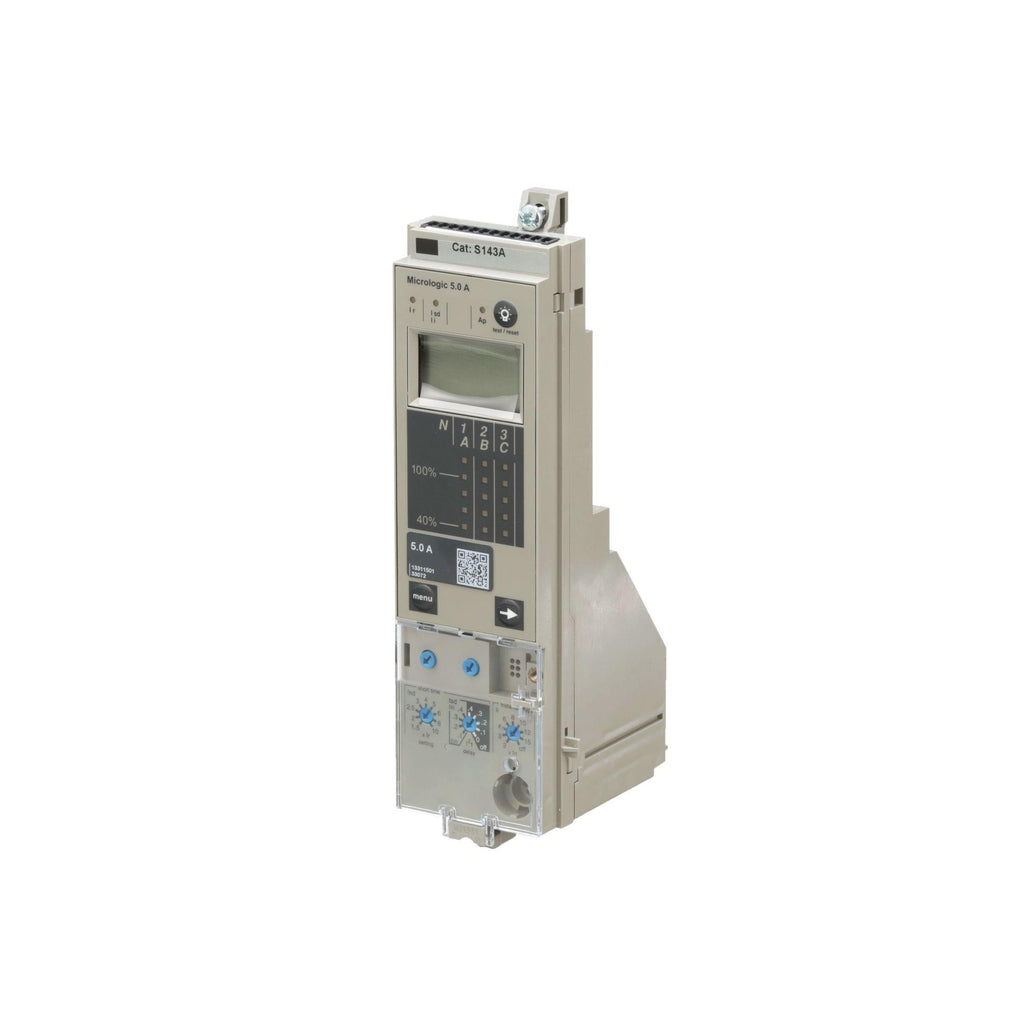

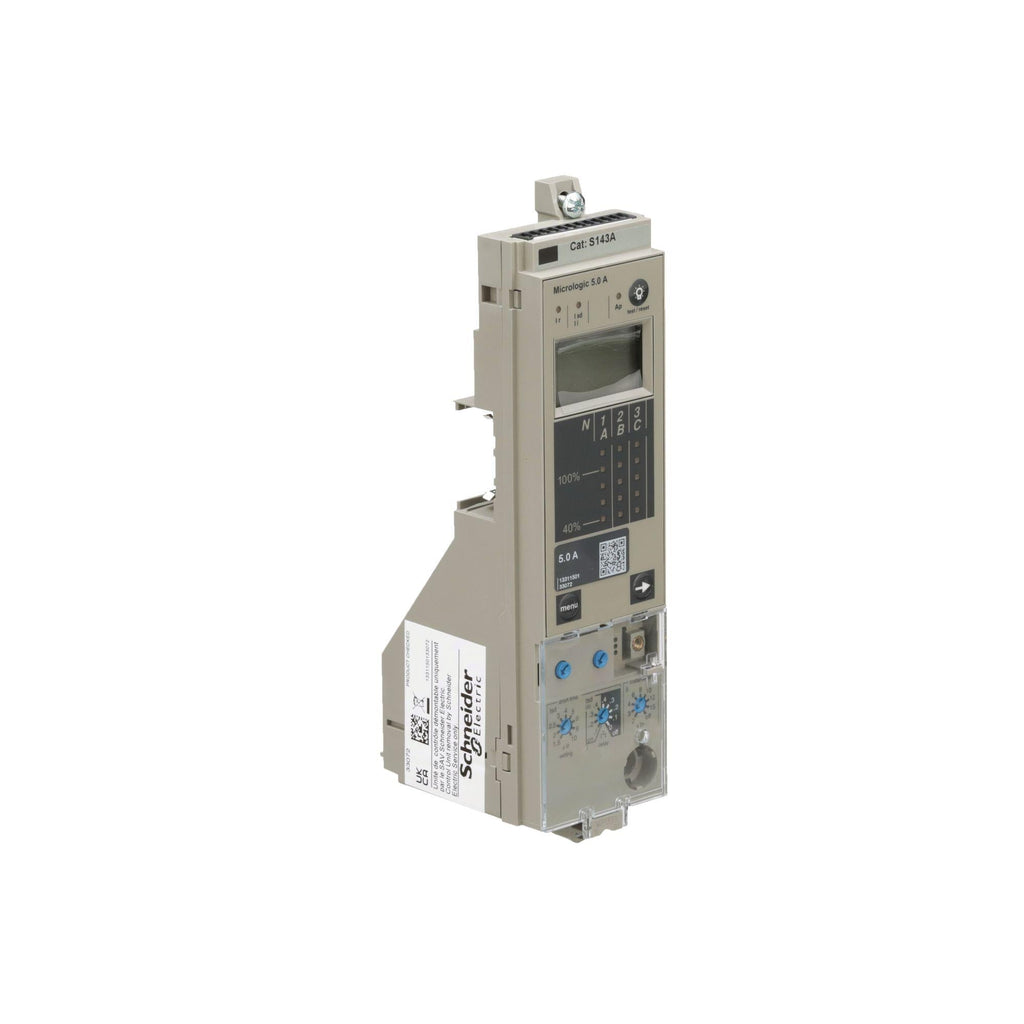

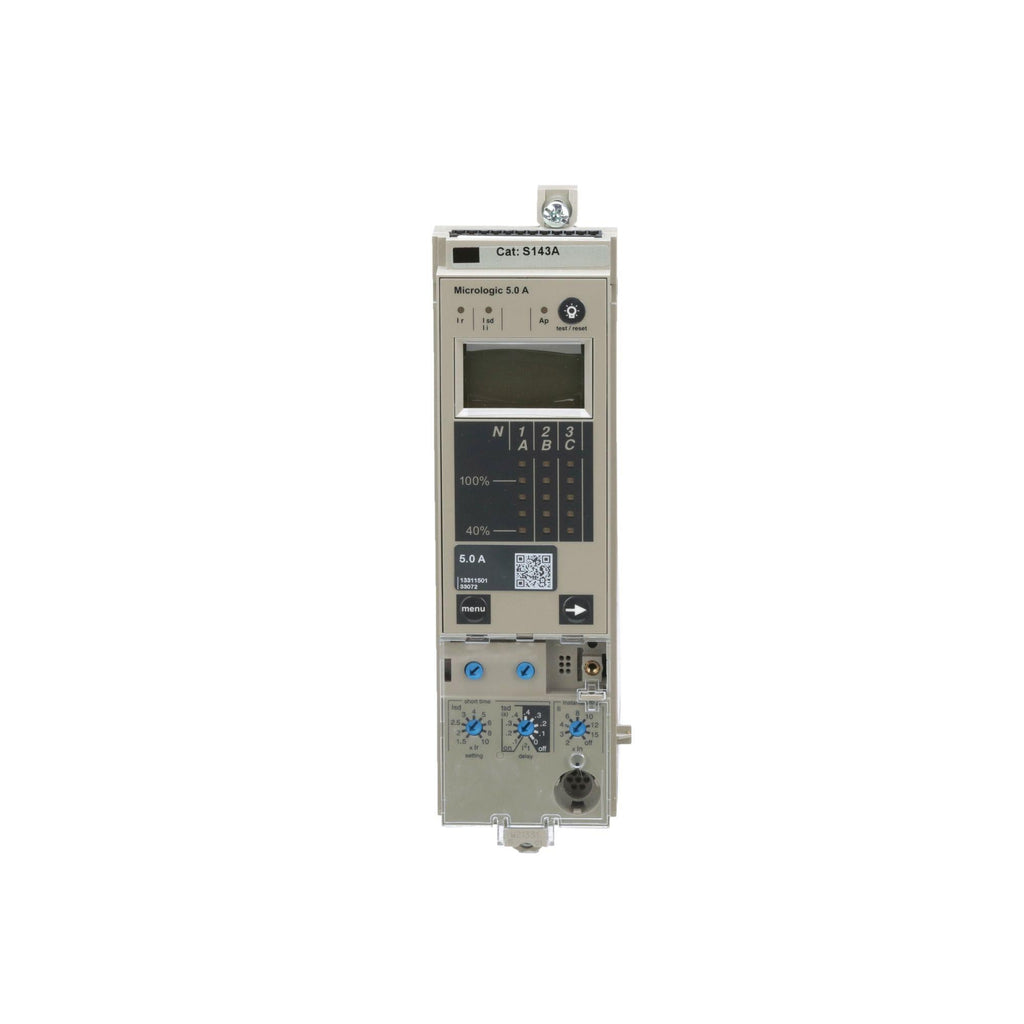

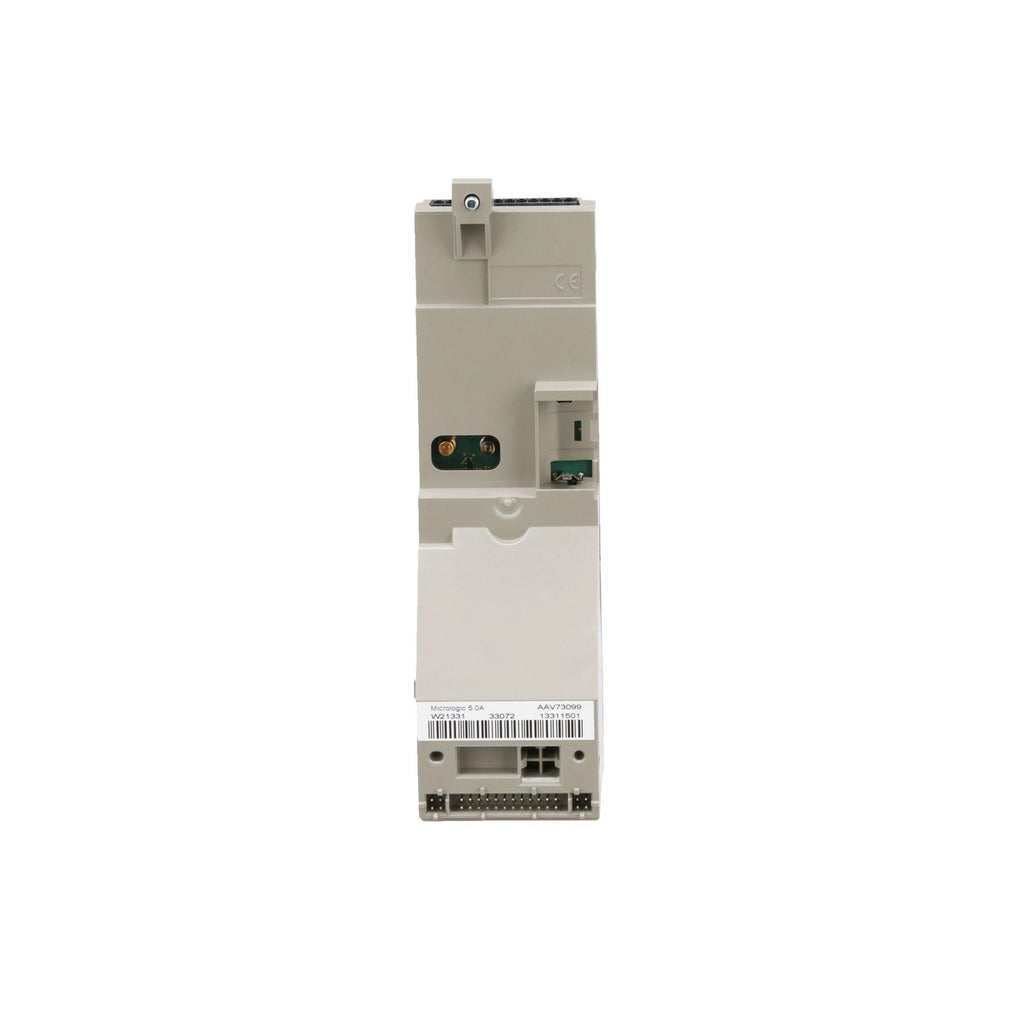

S143A is a Micrologic electronic trip unit designed for use with Square D PowerPact P and R frame circuit breakers, providing reliable protection for power circuits and loads. This field-replaceable trip unit features LSI protection and includes an ammeter function for monitoring current. It is compatible with Compact NS630B to NS3200 circuit breakers and is UL listed and CSA certified for safety and compliance.
- Part Number: S143A
- Manufacturer: Square D
- Current Rating: 5.0 A
- Frame Type: P, R
- Protection Functions: LSI
- Technology: Electronic
- Standards: UL Listed, CSA Certified
- Mounting: Field Replaceable
- Rating Plug: Included
- Tightening Torque: 0.8 N.m
- Compliance: RoHS
- Country of Origin: US
Specifications
- Part Number: S143A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Micrologic
- Type : S143
- Voltage : 600VAC
- Amperage : 5
- Functions : LSI - Long Time, Short Time and Instantaneous
- Protection : Solid State
- Compatible Frames : NS, NT, NW, PG, PJ, PK, PL, RG, RJ, RK, RL
Product Data
- UPC : 785901560715
- GTIN : 00785901560715
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 1.06
- Standards : RoHS
- Certification : UL, CSA
