CU1200P25K - Square D 1200A Mechanical Lug Kit for PowerPact P Frame Circuit Breakers

CU1200P25K

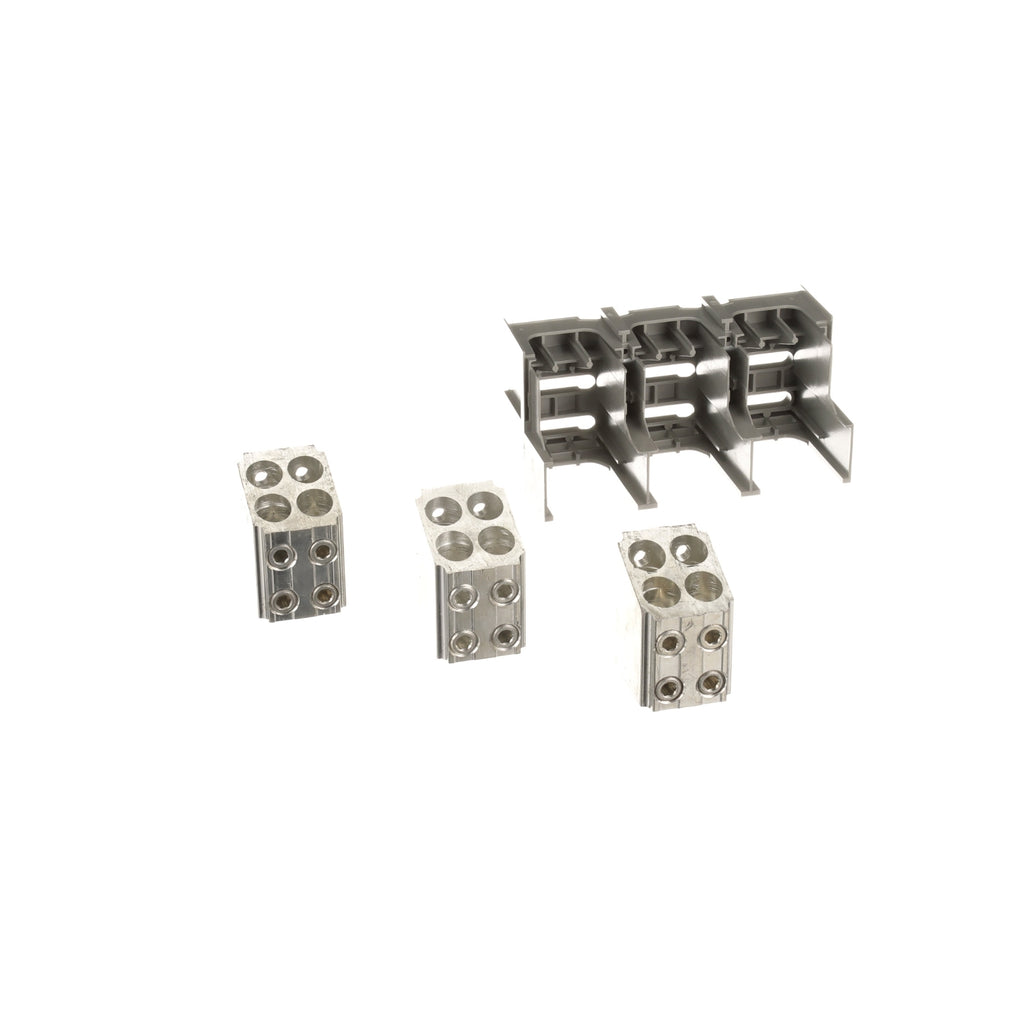

CU1200P25K is a mechanical lug kit designed for Square D PowerPact P frame circuit breakers, providing reliable connection for high amperage applications.

This lug kit supports up to 1200 amps and accommodates wire sizes from 3/0 AWG to 500 kcmil copper conductors. It is compatible with multiple PowerPact frame types including PG, PJ, PL, PGL, PGP, PJL, PJP, PKL, PKP, PLL, and PLP, enabling versatile field installation and upgrades. This accessory enhances circuit breaker connectivity and ensures secure mechanical lug termination.

• Manufacturer: Square D
• Part Number: CU1200P25K
• Amperage Rating: 1200A
• Compatible Frame Types: PowerPact P series (PG, PJ, PL, PGL, PGP, PJL, PJP, PKL, PKP, PLL, PLP)
• Wire Size Range: 3/0 AWG to 500 kcmil copper
• Accessory Type: Mechanical Lug Kit
• Mounting: Field installable on PowerPact P frame breakers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CU1200P25K
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Powerpact
• Type : CU
• MCM Size : 500
• Barrels : 4
• Metal Type : Copper
• Compatible Frames : PG,PJ,PL,PGL,PGP,PJL,PJP,PKL,PKP,PLL,PLP

Product Data

• UPC : 3606486279526
• GTIN : 03606486279526
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 10.501 lb
• Certification : CSA - UL
• Wire Size : AWG 3/0...500 kcmil aluminium
