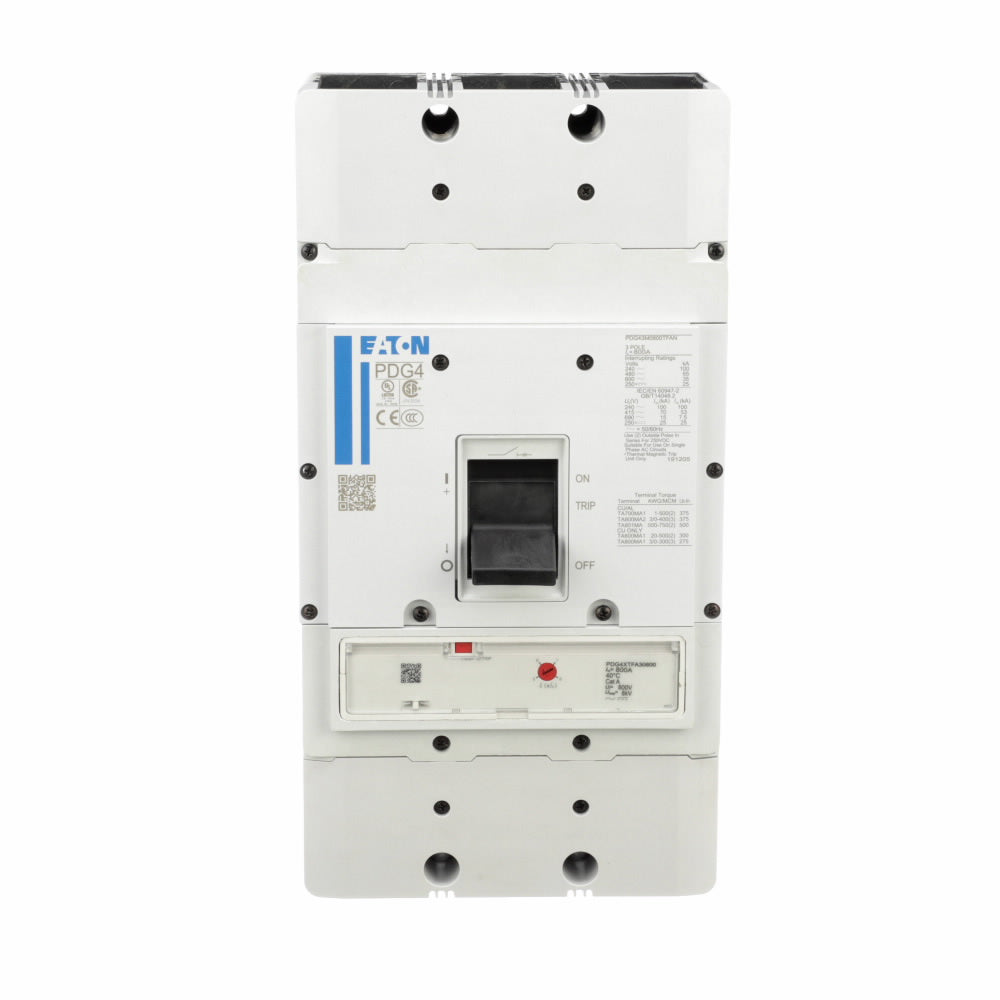

PDG43G0800TFAJ - Eaton Cutler Hammer 800A 600V 3-Pole Power Defense Molded Case Circuit Breaker Frame 4
Hover to zoom
PDG43G0800TFAJ - Eaton Cutler Hammer 800A 600V 3-Pole Power Defense Molded Case Circuit Breaker Frame 4

Reference images. Contact us for photos of the available unit.


Eaton

PDG43G0800TFAJ

Eaton Cutler Hammer 800A 600V 3-Pole Power Defense Molded Case Circuit Breaker Frame 4

Current: 800Poles: 3Voltage: 600VConnection: Feed-Thru
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$3,926.30
Low inventory, please call (866) 377-3532 for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Sub-Category
Molded Case
Series
Power Defense Series
Frame
PDG
Rated current
800
Voltage
600V
Poles
3
Phases
3
Interrupting rating
35kA@480V
Trip functions
Long Time and Instantaneous Trip
Protection
Thermal Magnetic
Connection
Feed-Thru
UPC
786679365687
Dimensions
111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
Show all specifications (1 more)
Weight
29.436
Product description & additional details

PDG43G0800TFAJ


PDG43G0800TFAJ is a Power Defense molded case circuit breaker by Eaton Cutler Hammer designed for reliable power distribution protection.This 3-pole breaker features an 800 ampere rating, 600 VAC voltage rating, and a 35 kA interrupting rating at 480 VAC. It uses a Frame 4 design with standard line and load terminals and a fixed thermal/adjustable magnetic trip unit (T297). The breaker is globally rated and built to Class A standards for industrial applications.
  • Manufacturer: Eaton Cutler Hammer
  • Part Number: PDG43G0800TFAJ
  • Amperage: 800 A
  • Voltage Rating: 600 VAC
  • Poles: 3
  • Interrupt Rating: 35 kA at 480 VAC
  • Frame: 4 (Power Defense Series)
  • Trip Unit: Fixed Thermal / Adjustable Magnetic (T297)
  • Terminals: Standard Line and Load
  • Mounting Type: Complete breaker frame
  • Class: Class A
  • Certifications: Globally rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: PDG43G0800TFAJ
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Power Defense Series
  • Type : PDG
  • Voltage : 600
  • Amperage : 800
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Feed-Thru
  • Functions : Long Time and Instantaneous Trip
  • Protection : Thermal Magnetic

Product Data

  • UPC : 786679365687
  • Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
  • Weight : 29.436

Return eligibility: what to know before ordering

Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.

Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.

Read the complete return and warranty policy ↗

Warranty supplied by Essential Electric

Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.

Review coverage, exclusions, and the claim process ↗
