Description
PDG4XTFA30800

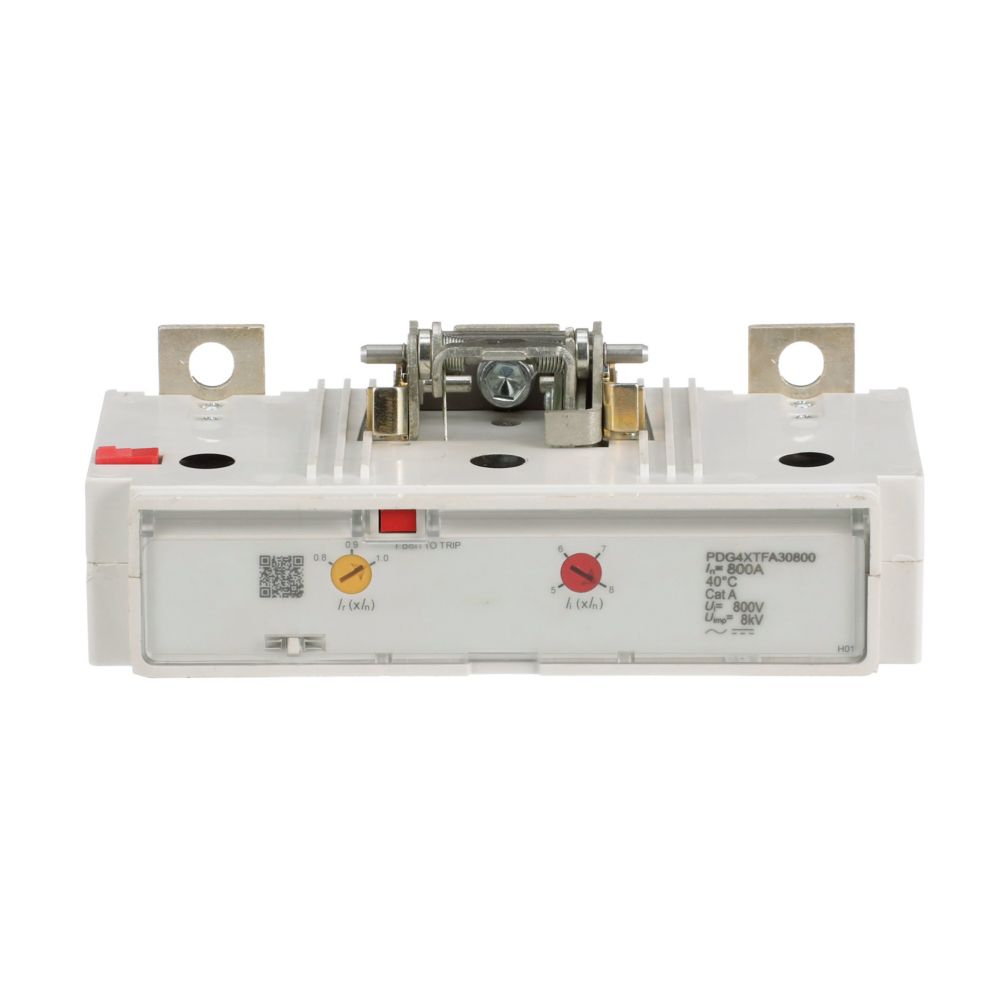

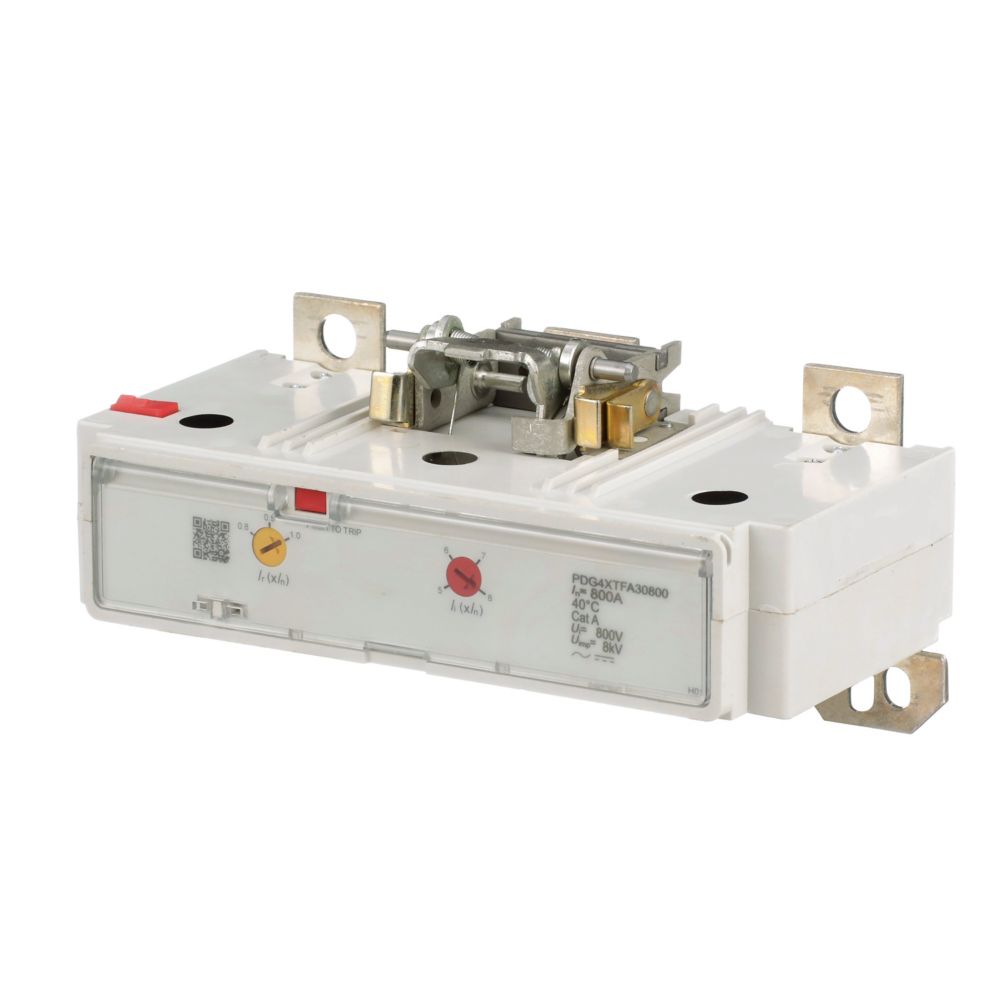

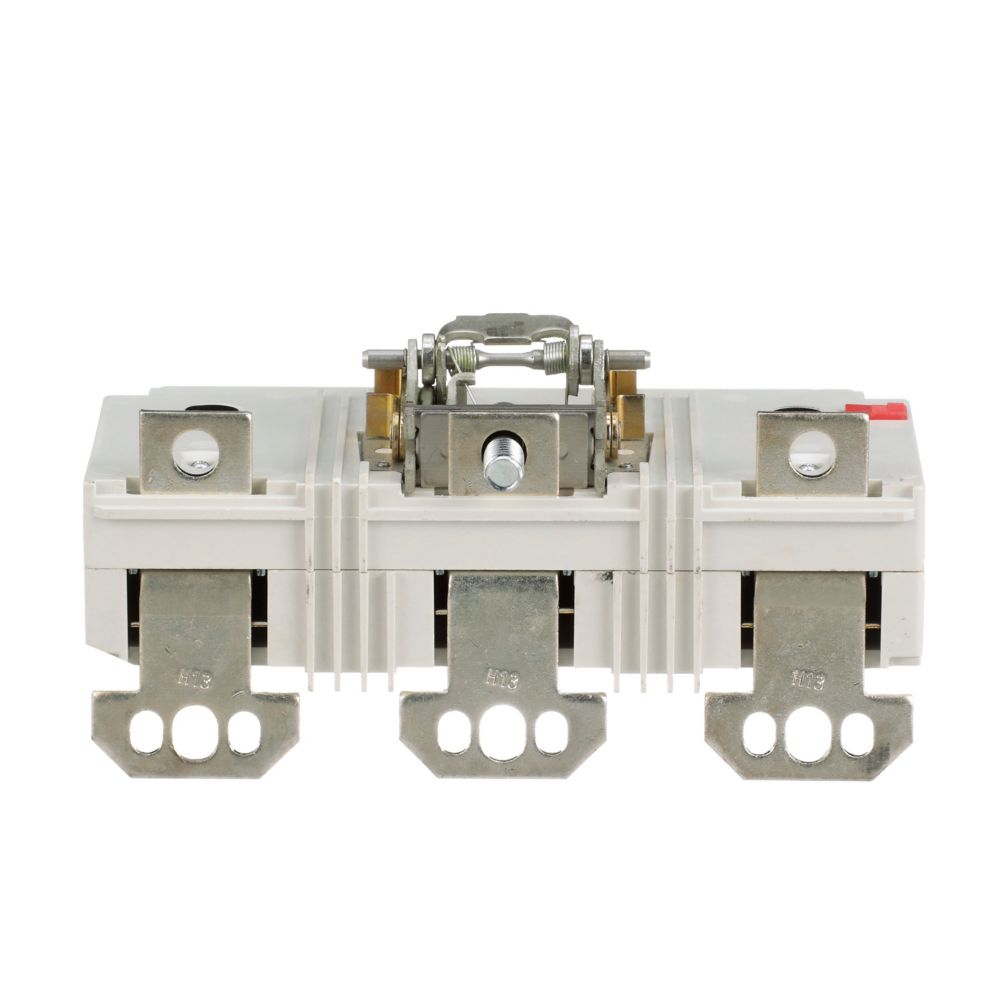

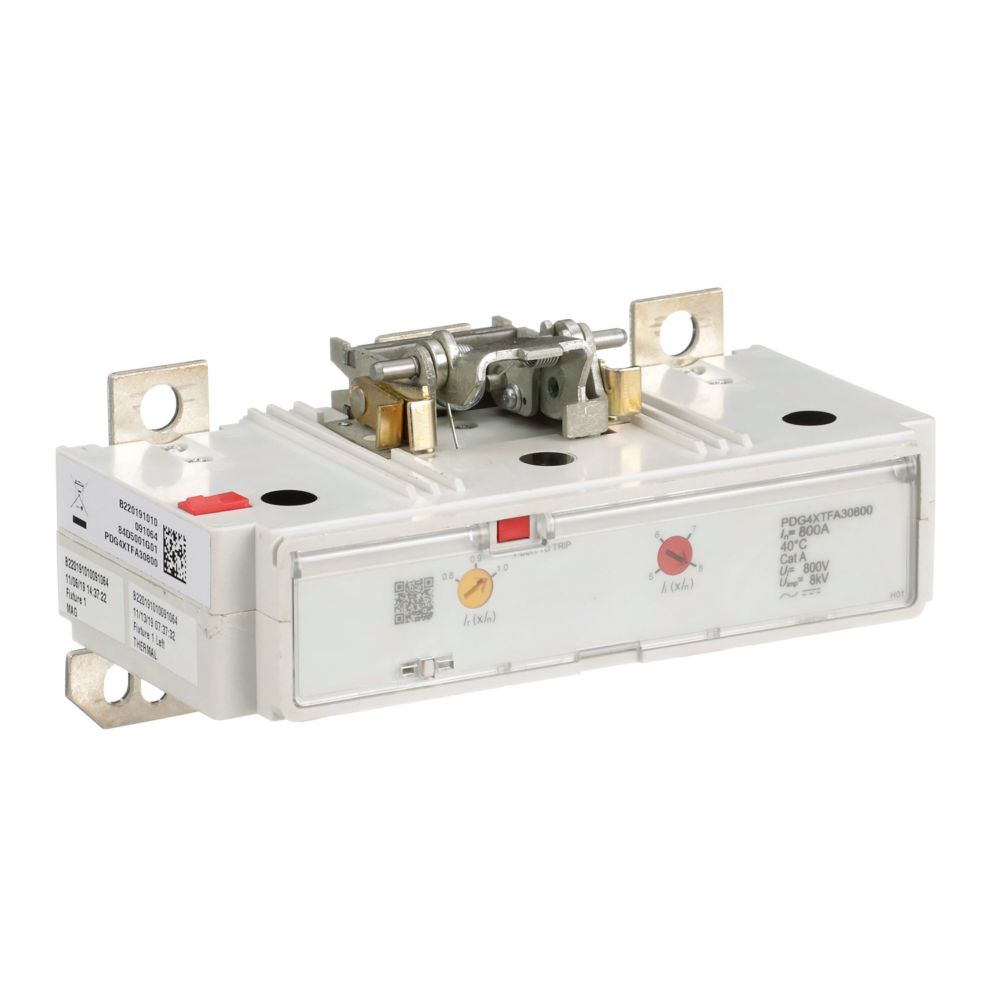

PDG4XTFA30800 is a Cutler Hammer Power Defense trip unit designed for molded case circuit breakers with 800 ampere rating and three poles.This trip unit is part of the Power Defense series, compatible with Frame J-K (Frame 4) circuit breakers, and supports a voltage rating of 600 volts AC. It features fixed thermal and adjustable magnetic trip protection, ensuring reliable circuit interruption and protection. Certified to CSA, IEC 60947-2, UL 489, and CCC standards, it complies with RoHS requirements.
- Amperage Rating: 800 A
- Voltage Rating: 600 V AC
- Number of Poles: Three-pole
- Frame Size: Frame J-K (Frame 4)
- Series: Power Defense
- Trip Unit Type: Fixed Thermal, Adjustable Magnetic
- Certifications: CSA, IEC 60947-2, UL 489, CCC Marked
- Compliance: RoHS Compliant
- Product Dimensions: 5.5 in (H) x 8.5 in (L) x 5.25 in (W)
- Weight: Approximately 3 lbs
Specifications
- Part Number: PDG4XTFA30800
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Poles : 3
- Functions : LI - Long-Time and Instantaneous
- Amperage Maximum : 800
- Protection : Thermal Magnetic
- Compatible Frames : PDG,PDG Frame 4
Product Data
- UPC : 786679596722
- GTIN : 00786679596722
- Dimensions : 8.5 in x 5.5 in x 5.25 in (Length/Depth x Height x Width)
- Weight : 3
- Certification : CSA IEC 60947-2 UL 489 CCC Marked
