Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG43G0800B2NL

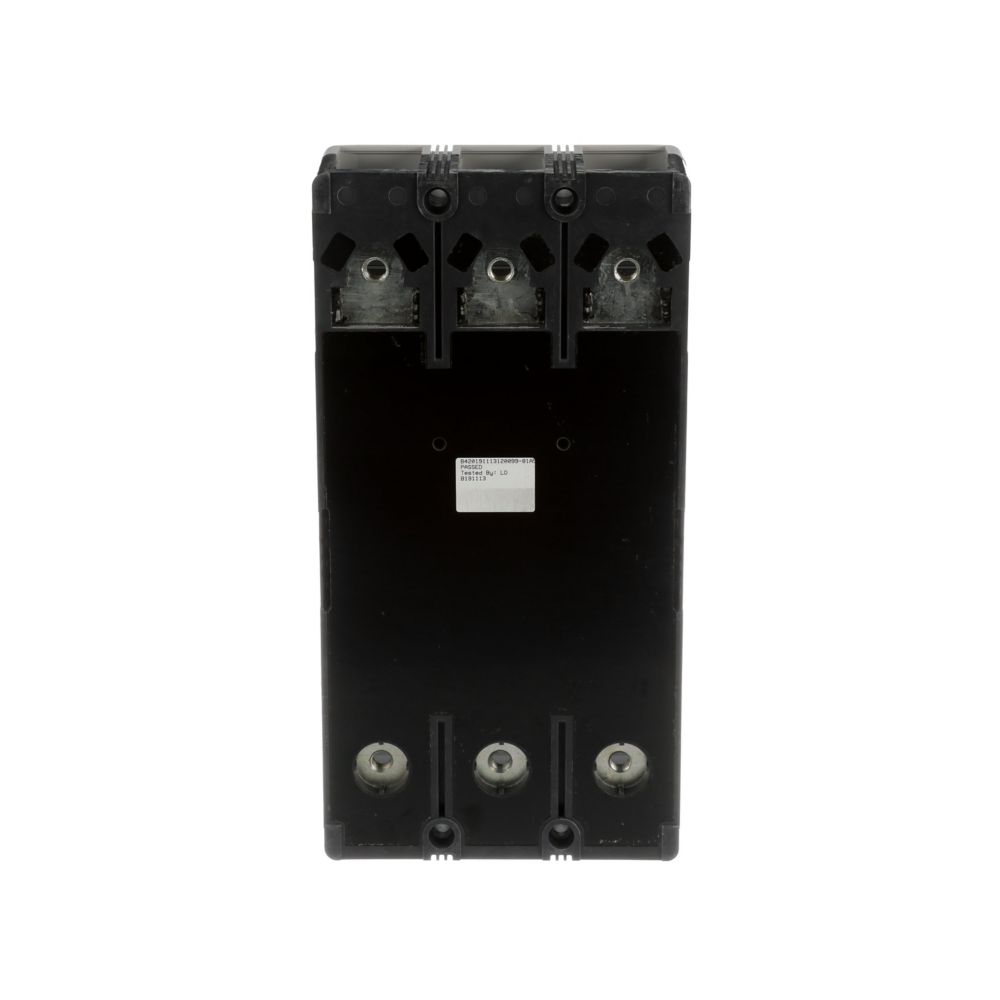

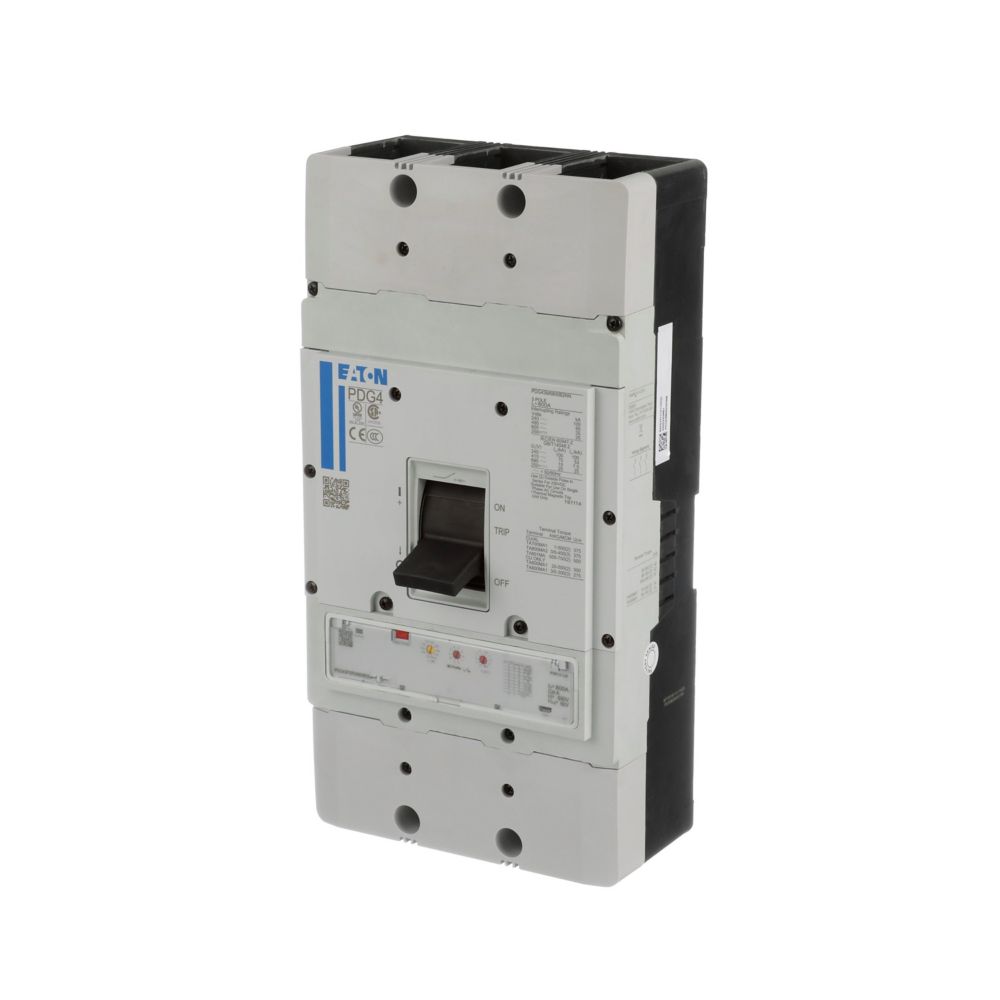

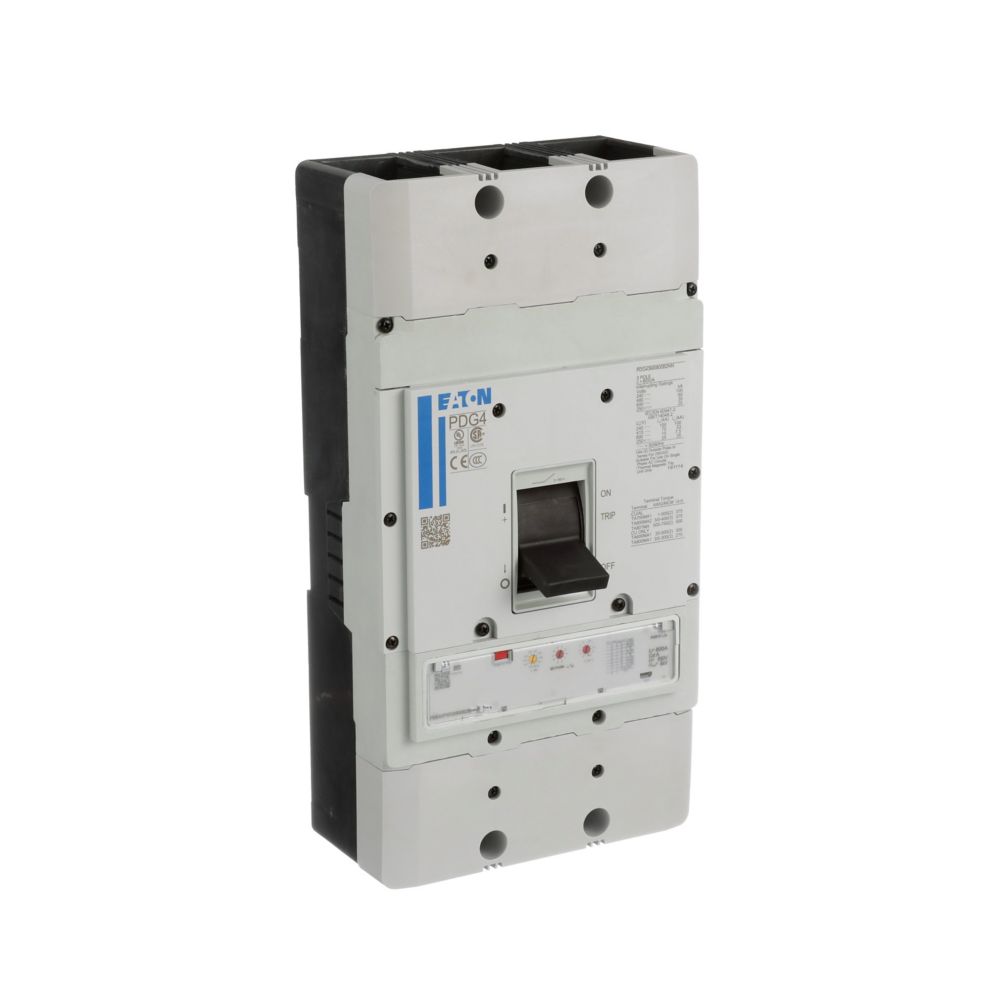

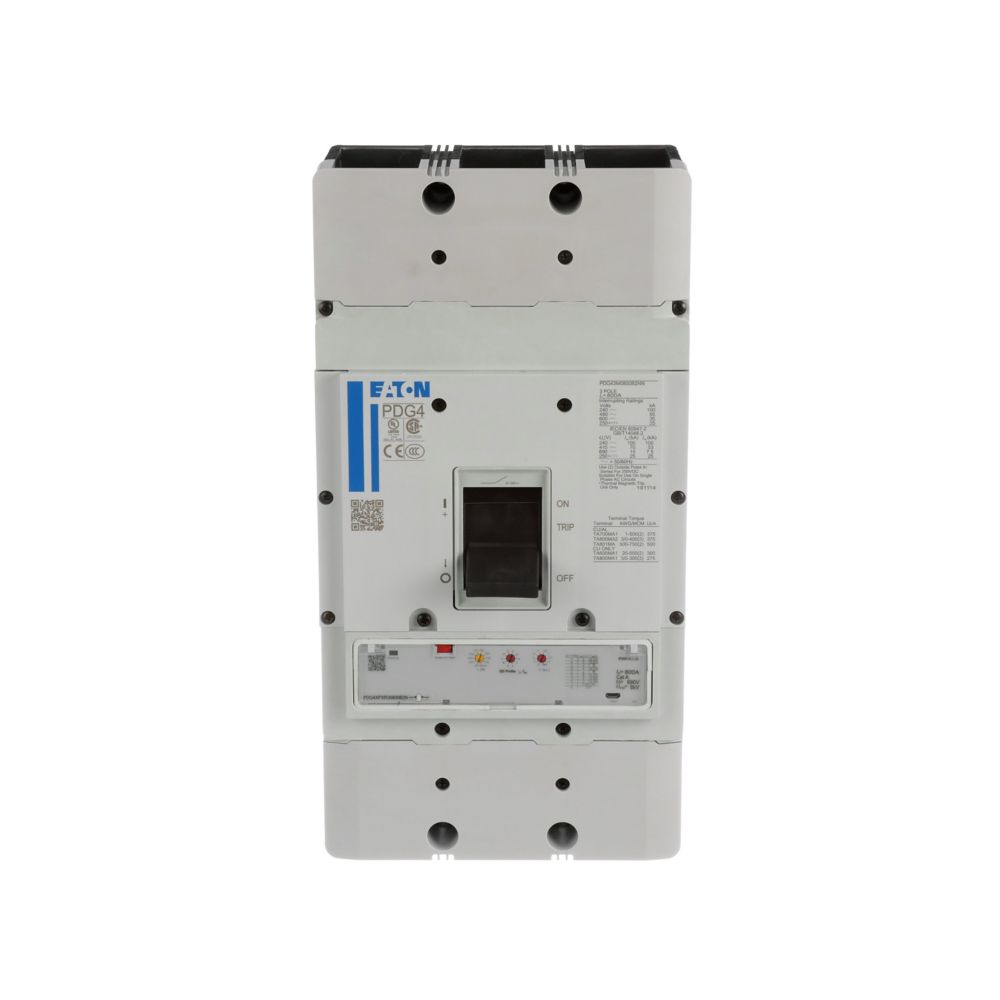

PDG43G0800B2NL is a Power Defense molded case circuit breaker by Eaton designed for robust electrical protection.This 3 pole circuit breaker features an 800 ampere rating, 600 VAC voltage rating, and a frame 4 design. It includes a PXR10 LSI trip unit and offers a 35 kA interrupt rating at 480 VAC. The breaker is globally rated and uses load lug terminals for mounting.
- Key Specifications
- Manufacturer: Eaton (Cutler Hammer)
- Amperage Rating: 800 A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: 4 (Power Defense)
- Interrupt Rating: 35 kA at 480 VAC
- Trip Unit: PXR10 LSI
- Mounting Type: Load Lugs Only
- Global Certification: Yes
- Part Number: PDG43G0800B2NL
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 786679821763
- Country of Origin : Dominican Republic
- Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
- Weight : 30.328
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 507
